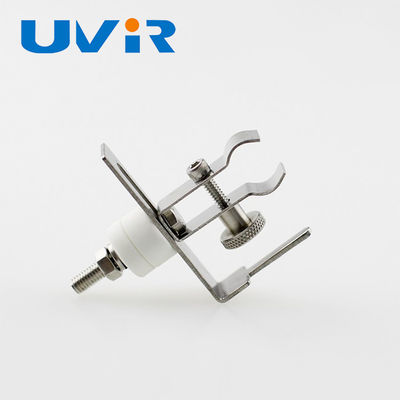

High-quality quartz ceramic stainless steel tube clamp, infrared double-tube short-wave bracket clamp

Name: High-quality quartz ceramic stainless steel tube clamp, infrared double-tube short-wave bracket clamp
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: GJ0002L
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	GJ0002L
MOQ:	100
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Material:

Stainless Steel

Structure:

Wave Clamp

Wave Range:

Medium Wave

Tube Diameter:

11x23mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Stainless Steel IR Lamp Holder

Medium Wave Infrared Lamp Clamp

11x23mm Twin Tube Lamp Holder

Product Description

High-quality quartz ceramic stainless steel tube clamp, infrared double-tube short-wave bracket clamp

Product Specifications

Material	Stainless Steel
Structure	Wave Clamp
Wave Range	Medium Wave
Tube Diameter	11x23mm

Product Description

GJ0002L 11X23 Medium Wave Twin Tube Infrared Lamp Clamp with Stainless Steel

Clamps for Medium Wave Twin Lamps

Twin Tube configuration with stainless steel construction for durability and heat resistance.

Cross-Section Specifications

a	b	c	d	e	M	UVIR NO.
10	23	25	20	10	M5 x 20	GJ0002L
15	33	30	25	15	M5 x 25	GJ0003L
8	18	25	25	10	M5 x 20	GJ0001L

Operating Instructions

The infrared twin-tube emitter is designed for horizontal operation only. Special IR emitters for vertical installation positions are specially manufactured and marked as such.

To install our IR emitters, typically one mounting and one spring clamp are required, along with central supports if necessary, all manufactured by HNI. The IR twin-tube emitter must be secured to a stable support (steel support plate: > 1.5 mm).

Assembly Procedure

Drill mounting holes with Φ9.2 mm for clamp spring in the support (mounting plate) at distance L.
Screw the clamp spring in place with ceramic washers on the mounting plate.
Press the IR emitter into position in the retaining spring clip. The emitter must point at all the surface to be heated. The gold reflector should be pointing towards the support plate.
Tighten the fastening nuts on the knurled nut.

Pulling the lead wire must not cause any tension on the press seal. Bending radius of lead wire: > 30 mm

Mounting Dimensions

L = Overall length of emitter LG: 2x35 mm (two-sided connection) or L = Overall length of emitter LG: 35 mm -20 mm (one-sided connection)

If the following overall emitter lengths are exceeded for LG, a central support is necessary:

Tube dimensions: 23 x 11, LG > 1500 mm
Tube dimensions: 34 x 14, LG > 2000 mm

Cleaning Instructions

After installation, the quartz glass tube of the IR emitter must be cleaned on the side without gold plating. Use the included cleaning cloth or a clean linen cloth (without textile finishing agents) soaked in methylated spirit (such as rubbing alcohol) to remove any impurities or fingerprints from the surface.

Other IR Holder Parameters

Wave Range	Tube Diameter(mm)	UVIR Model No	Heraeus Model No.
Short Wave	8 x 18	GJ0001	09759293
Short Wave	11 x 23	GJ0002	09759287
Short Wave	15 x 33	GJ0003	09758026
Medium Wave	8 x 18	GJ0001L	09758010
Medium Wave	11 x 23	GJ0002L	09758013
Medium Wave	15 x 33	GJ0003L	09758016
