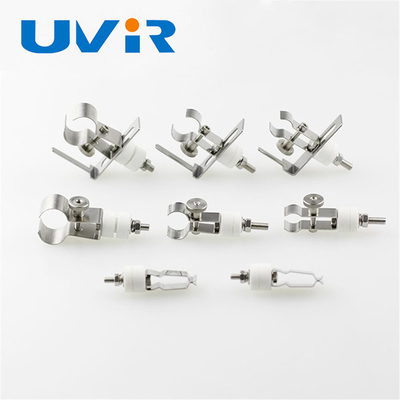

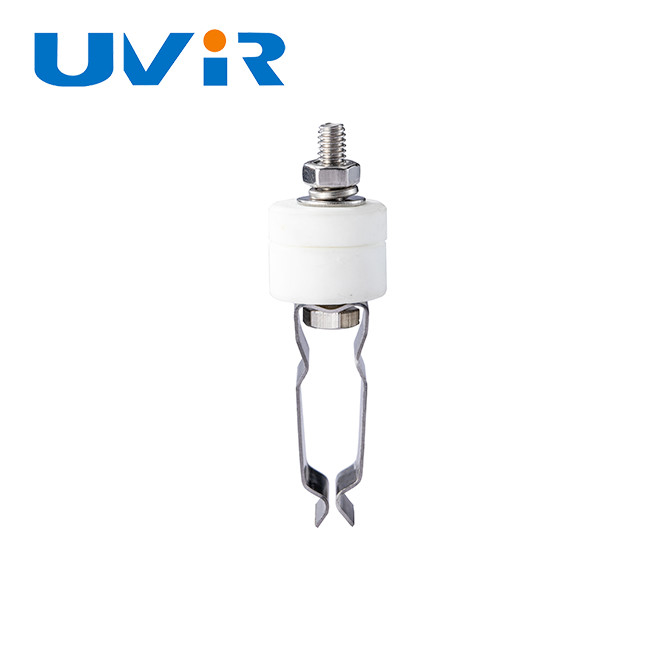

SK15 Ceramic IR Lamp Holder for Infrared Heater Lamps

Name: SK15 Ceramic IR Lamp Holder for Infrared Heater Lamps
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: SK15
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	SK15
MOQ:	100
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

IR Lamp Holder

Type:

SK15

Applicable:

Infrared Heater Lamp

Sizeplace Of Shipment:

China,Guangdong

Material:

Ceramic + Aluminum

Color:

Ceramic White + Silver

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

SK15 Heating Lamp Holder

ODM Heating Lamp Holder

ISO9001 heat lamp holders

Product Description

ODM SK15 Heating Lamp Holder Ceramic white ISO9001 CE certificated

Product Specifications

Product name	IR Lamp holder
Type	SK15
Applicable	Infrared heater lamp
Place of shipment	China, Guangdong
Material	Ceramic + aluminum
Color	Ceramic white + silver

Key Features

Manufactured under strict ISO9001 quality system
Each product individually tested before shipment
Fast delivery: samples within 5 working days, bulk orders within 25 days
Reliable after-sales service
ODM and OEM services available
Low MOQ (100 pieces)
24/7 customer support with responses within 24 hours

Technical Details

Product name	IR lamp holder
Type	SK15 lamp clip
Color	Ceramic white + silver
Material	Ceramic + aluminum
Application area	Infrared Heat Lamp
MOQ	100pcs

Installation Instructions

The infrared twin-tube emitter is designed for horizontal operation only. Special IR emitters for vertical installation are specially manufactured and marked accordingly.

Required components for installation:

One mounting clip
One spring clamp
Central supports (if necessary)
Stable support plate (>1.5mm steel)

Installation Steps

Drill mounting holes with Φ9.2 mm for clamp spring in the support (mounting plate) at distance L.

Screw the clamp spring in place with ceramic washers on the mounting plate.

Press the IR emitter into position in the retaining spring clip, ensuring it points at the surface to be heated with gold reflector facing the support plate.

Tighten the fastening nuts on the knurled nut.

Important Notes

Lead wire must not cause tension on the press seal (minimum bending radius: >30mm)
Mounting dimensions: L = Overall length of emitter LG:2x35 mm (two-sided connection) or L = Overall length of emitter LG:35 mm -20 mm (one-sided connection)
Central support required for: Tube dimensions 23x11 with LG >1500mm or tube dimensions 34x14 with LG >2000mm
Clean quartz glass tube after installation using provided cleaning cloth or methylated spirit

Product Images

Frequently Asked Questions

Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

What about the lead time?

Samples need 5-7 days, mass production takes about 30 days.

Do you have any MOQ limit?

Minimum order quantity is typically 100 pieces per model.

How do you ship the goods?

Samples ship via DHL, UPS, FedEx or TNT. Large quantities ship by air or sea.

How to proceed with an order?

1. Share your requirements
2. Receive our quote
3. Confirm samples and place deposit
4. We arrange production
