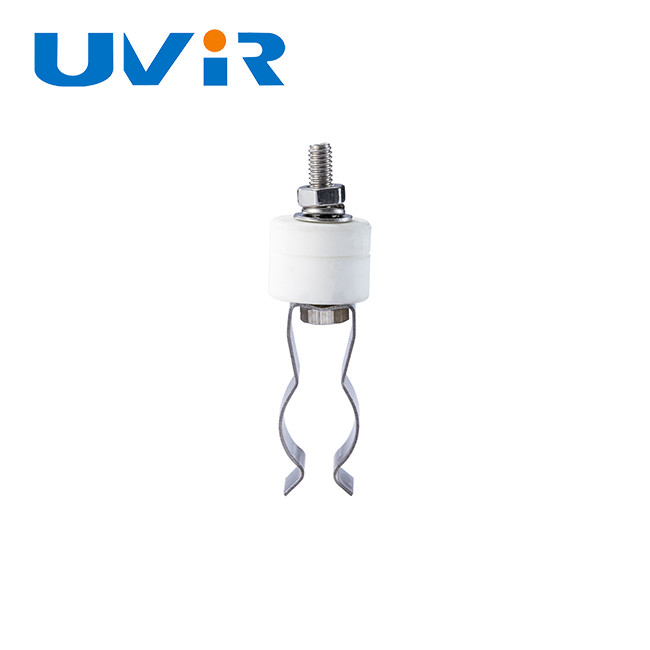

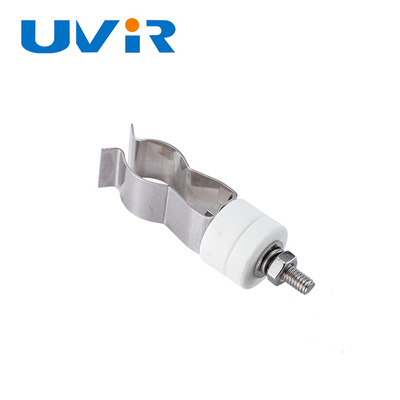

SC05 Ceramic Aluminum IR Lamp Holder for Medium Wave Twin Lamps

• Implement strict quality system according to ISO9001
• All products are tested individually before delivery
• Punctual delivery: samples within 5 working days, bulk orders within 25 days
• Dependable after-sales service
• ODM and OEM services available
• Low MOQ limitation (100pcs)
• 24/7 customer support with responses within 24 hours

Twin Tube Cross-Section	a	b	c	d	e	M	UVIR NO.
	10	23	25	20	10	M5 x 20	GJ0002L
	15	33	30	25	15	M5 x 25	GJ0003L
	8	18	25	25	10	M5 x 20	GJ0001L

The infrared twin-tube emitter is suited for horizontal operation only. Special IR emitters for vertical installation positions are specially manufactured and marked as such.

To install our IR emitters, usually one mounting and one spring clamp, and if necessary, one or several central supports all manufactured by HNI are to be used. The IR twin-tube emitter must be secured in position of a stable support (steel support plate: > 1.5 mm).

The IR emitter(s) must be assembled in the following order:

1. Drill mounting holes with Φ9.2 mm for clamp spring in the support (mounting plate) at distance L.
2. Screw the clamp spring in place with ceramic washers on the mounting plate.
3. Press the IR emitter into position in the retaining spring clip. The emitter must point at all the surface to be heated. The gold reflector should be pointing towards the support plate.
4. Tighten the fastening nuts on the knurled nut.

Pulling the lead wire must not cause any tension on the press seal. Bending radius of lead wire: > 30 mm

Mounting dimensions:
L = Overall length of emitter LG:2x35 mm (two-sided connection) or
L = Overall length of emitter LG:35 mm -20 mm (one-sided connection)

If the following overall emitter lengths are exceeded for LG, a central support is necessary:
Tube dimensions:23 x 11, LG >1 500 mm and tube dimensions 34x14, LG > 2000 mm

After installation, the quartz glass tube of the IR emitter must be cleaned on the side without gold plating. For this purpose, please use the cleaning cloth included in our delivery or a clean linen cloth (without textile finishing agents) soaked in methylated spirit (such as rubbing alcohol) to remove any impurities/soiling or fingerprints from the surface.

The sizes are illustrated with specific measurements in the detailed specifications. Please check the specifications before you place orders. If you find the size of products do not fit you, you can directly contact us.
