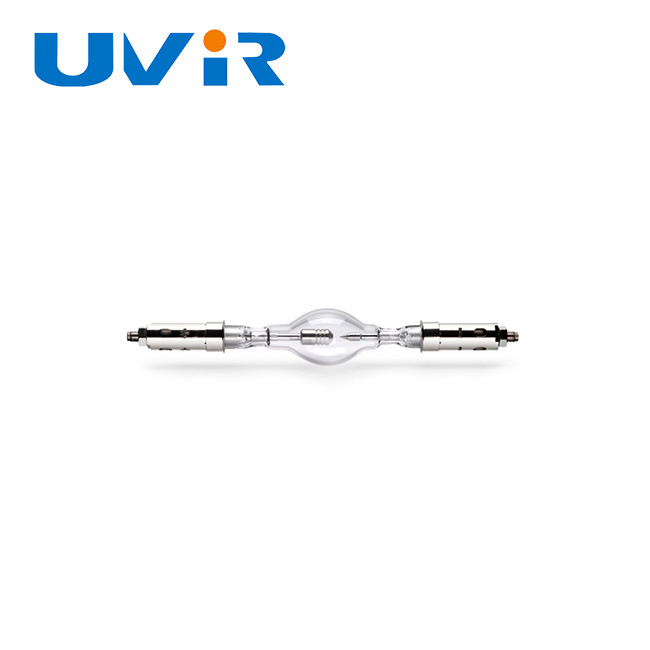

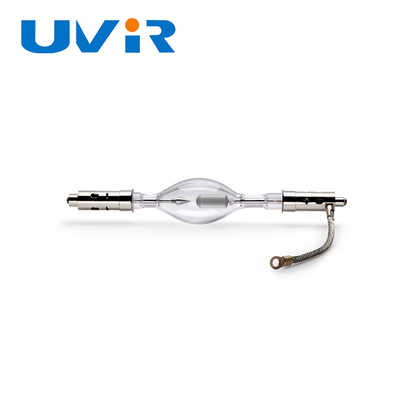

43V Xenon Short Arc Lamp for Searchlights and Train Locomotives

Brand Name:	UVIR
Model Number:	XUV7000/ STAGE
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Xenon Short Arc Lamp

Overal Length(1):

425mm

Operating Length(2):

395mm

Voltage:

43V

Material:

Quartz

Place Of Origin:

Guangdong, China

Application:

For Searchlights, And Train Locomotives

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Xenon Short Arc Lamp For Searchlights

Xenon Short Arc Lamp 43V

Train Locomotives high pressure xenon lamp

Product Description

High Pressure Xenon Short Arc Lamp 43V Light Source For Searchlights / Train Locomotives

Product name	Xenon Short Arc Lamp
Overal Length(1)	425mm
Operating Length(2)	395mm
Voltage	43V
Material	Quartz
Place of Origin	Guangdong, China
Application	For searchlights and train locomotives

OEM Service

We provide expert guidance in selecting the optimal product for specific applications. Our Technical Department can design custom lamps based on your precise technical specifications.

We manufacture various sizes and types of products according to customer requirements. Providing technical drawings enables us to produce accurate samples for your evaluation.

Product Description

High pressure short arc xenon lamp operates at pressures exceeding 10 atmospheres
Features an arc length of several millimeters with a spherical quartz shell
Delivers high brightness point source illumination with 6000K color temperature, closely matching natural sunlight
Excellent color rendering makes it ideal for film projection, searchlights, train operation, and solar simulation

Lamp Parameters

Parameter	Value
Lamp Model	XUV7000/STAGE
Operating current	160A
Operaing voltage	43V
Electrode distance	15
Height of light center	175mm
Diameter	75mm
Luninous Flux	310000lm
Overal Length(1)	450mm
Operating Length(2)	395mm
Life time	500h

Application

Product Details

Available Models

Type	Current (A)	Voltage (V)	Flux (lm)	Cooling Speed	Electrode Distance	Diameter (mm)	Length(1) (mm)	Length(2) (mm)	Light Center (mm)
XUV1000/STAGE	45	22	32000	5	4.7	40	285	245	125
XUV2000/STAGE	70	28	75000	6	5.5	52	360	320	145
XUV3000/STAGE	100	30	130000	13	6	55	395	365	170
XUV4000/STAGE	130	31	155000	13	6.5	60	410	380	170
XUV5000/STAGE	145	34.5	220000	13	7.5	70	420	390	175
XUV6000/STAGE	155	38	250000	15	8.5	75	420	390	175
XUV7000/STAGE	160	43	310000	15	9.3	75	425	395	175
XUV10000/STAGE	195	50	480000	15	10.5	90	444	414	175
