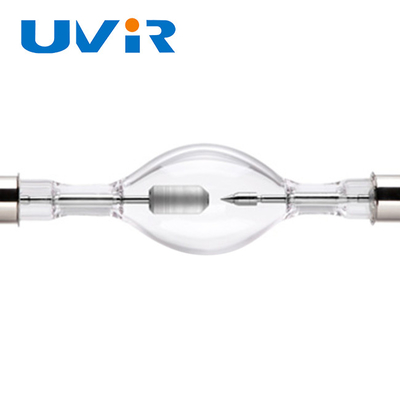

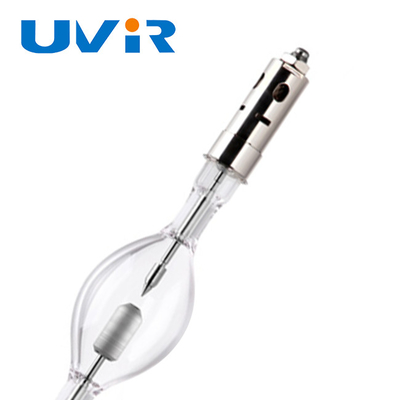

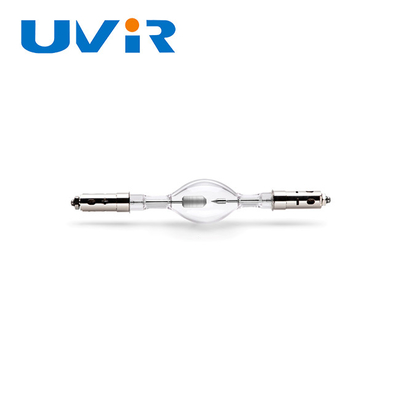

285mm 28V Xenon Short Arc Lamp 75000lm for Stage Lighting

Brand Name:	UVIR
Model Number:	XUV 2000/ STAGE
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Diameter:

52mm

Average Life Time:

800h

Operaing Voltage:

28V

Overall Length:

360mm

Operating Length:

320mm

Material:

Quartz

Place Of Origin:

Guangdong, China

Application:

Stage Light

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

22V Xenon Short Arc Lamp

285mm Xenon Short Arc Lamp

Stage Light short arc xenon lamp

Product Description

285mm 22V Xenon Short Arc Lamp - Ultra High Pressure for Stage Light

Key Specifications

Diameter	52mm
Average Lifetime	800h
Operating Voltage	28V
Overall Length	360mm
Operating Length	320mm
Material	Quartz
Place of Origin	Guangdong, China
Application	Stage Light

Product Overview

The XUV 2000/STAGE 285mm 22V Xenon Short Arc Lamp is an ultra-high pressure short-arc xenon lamp (working pressure above 10 atmospheres) with an arc length of several millimeters. This spherical xenon lamp delivers exceptional performance for professional lighting applications.

Technical Parameters

Lamp Model	XUV 2000/STAGE
Operating Current	70A
Operating Voltage	28V
Electrode Distance	5.5mm
Height of Light Center	145mm
Luminous Flux	75000lm

Product Features

Point light source with extremely high brightness (color temperature ~6000K)
Light color closely matches natural sunlight
Superior color rendering among gas discharge lamps
Ideal for stage lighting, movie projections, and searchlights
Durable quartz construction

Available Models

Model	Current (A)	Voltage (V)	Luminous Flux (lm)	Diameter (mm)
XUV1000/STAGE	45	22	32000	40
XUV2000/STAGE	70	28	75000	52
XUV3000/STAGE	100	30	130000	55
XUV4000/STAGE	130	31	155000	60
XUV5000/STAGE	145	34.5	220000	70

Applications

Ideal for professional stage lighting, movie projections, searchlights, train locomotive lighting, and sunlight simulation applications.

After-Sales Service

Package tracking
Technical support
24-hour response time
Discounts for repeat orders
Replacements for quality issues
Strict customer confidentiality

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a professional manufacturer based in China.

Q: How can I get samples?

A: We're pleased to provide samples upon request.

Q: What is your quality control process?

A: Quality is our top priority with strict controls throughout production.

Q: What is your delivery time?

A: Standard delivery is 15-25 days, with expedited options available.

For more information about our xenon short arc lamps, please contact our technical team for expert advice and customized solutions.
