Xenon Short Arc Lamp

43V Xenon Short Arc Lamp for Searchlights and Train Locomotives

43V Xenon Short Arc Lamp for Searchlights and Train Locomotives

43V Xenon Short Arc Lamp for Searchlights and Train Locomotives

Brand Name:	UVIR
Model Number:	XUV7000/ STAGE
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

Xenon Short Arc Lamp

Overal Length(1):

425mm

Operating Length(2):

395mm

Voltage:

43V

Material:

Quartz

Place Of Origin:

Guangdong, China

Application:

For Searchlights, And Train Locomotives

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Xenon Short Arc Lamp 43V

,

Searchlights Xenon Short Arc Lamp

,

Xenon high pressure arc lamp

Product Description

High Pressure Xenon Short Arc Lamp 43V for Searchlights / Train Locomotives

Product Specifications

Attribute	Value
Product name	Xenon Short Arc Lamp
Overall Length(1)	425mm
Operating Length(2)	395mm
Voltage	43V
Material	Quartz
Place of Origin	Guangdong, China
Application	Searchlights, Train Locomotives

Product Overview

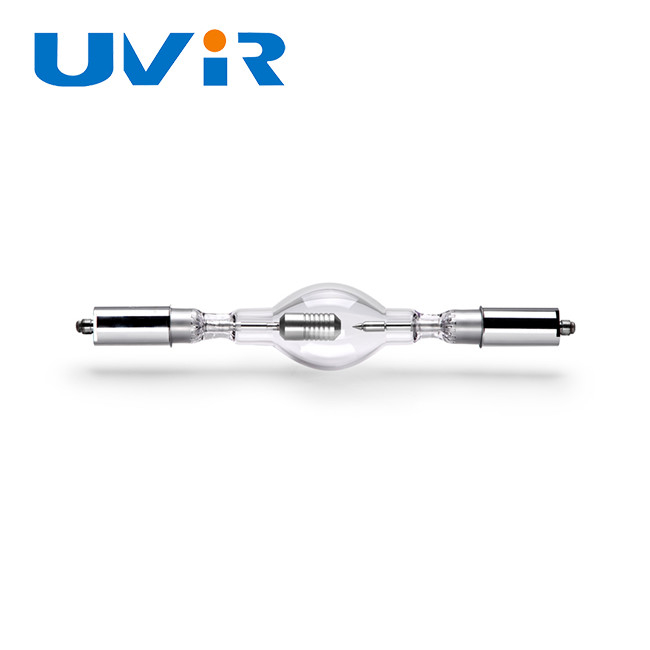

XUV7000/STAGE point light source Xenon Arc Lamp suitable for searchlights and train locomotives.

OEM Service

Technical consultation for product selection based on specific application requirements
Custom lamp design according to customer's technical specifications
Production of various sizes and types according to customer requirements
Sample production available with provided drawings

Product Features

High pressure short arc xenon lamp (operating pressure above 10 atmospheres)
Ultra-high brightness point light source with arc length of several millimeters
Color temperature approximately 6000K, closely matching natural sunlight
Excellent color rendering, among the best in gas discharge lamps
Ideal for film projection, searchlights, train headlights, and solar simulation

43V Xenon Short Arc Lamp for Searchlights and Train Locomotives 0

Technical Parameters

Parameter	Value
Lamp Model	XUV7000/STAGE
Operating current	160A
Operating voltage	43V
Electrode distance	15mm
Height of light center	175mm
Diameter	75mm
Luminous Flux	310000lm
Overall Length(1)	450mm
Operating Length(2)	395mm
Life time	500h

Application

43V Xenon Short Arc Lamp for Searchlights and Train Locomotives 1

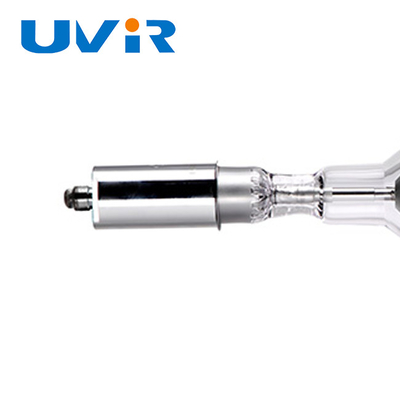

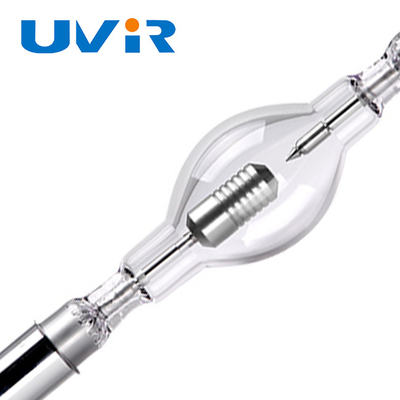

Product Details

43V Xenon Short Arc Lamp for Searchlights and Train Locomotives 2

Available Models

Model	Current (A)	Voltage (V)	Flux (lm)	Cooling Speed	Electrode Distance	Diameter (mm)	Length (mm)	Operating Length (mm)	Light Center (mm)
XUV1000/STAGE	45	22	32000	5	4.7	40	285	245	125
XUV2000/STAGE	70	28	75000	6	5.5	52	360	320	145
XUV3000/STAGE	100	30	130000	13	6	55	395	365	170
XUV4000/STAGE	130	31	155000	13	6.5	60	410	380	170
XUV5000/STAGE	145	34.5	220000	13	7.5	70	420	390	175
XUV6000/STAGE	155	38	250000	15	8.5	75	420	390	175
XUV7000/STAGE	160	43	310000	15	9.3	75	425	395	175
XUV10000/STAGE	195	50	480000	15	10.5	90	444	414	175

Contact us for information about other available models.

After Sales Service

Package tracking
Technical support
24-hour customer service
Discounts for repeat orders
Replacements for quality issues
Strict confidentiality of customer information
