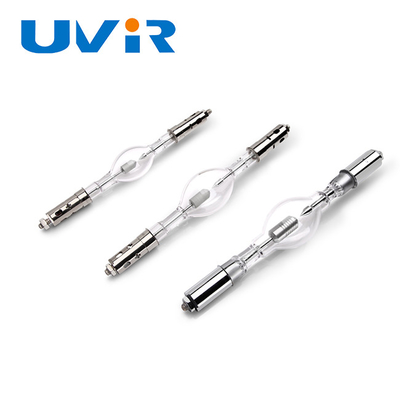

XUV 2000/ STAGE Xenon Short Arc Lamp 28V 320mm High Pressure Xenon Lamp

XUV 2000/ STAGE Xenon Short Arc Lamp 28V 320mm High Pressure Xenon Lamp

Brand Name: UVIR
Model Number: XUV 2000/ STAGE
MOQ: 10
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE
Diameter:
52mm
Average Life Time:
800h
Operaing Voltage:
28V
Overall Length:
360mm
Operating Length:
320mm
Material:
Quartz
Place Of Origin:
Guangdong, China
Application:
Stage Light
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Highlight:

High Pressure Xenon Short Arc Lamp

,

28V Xenon Short Arc Lamp

,

320mm High Pressure Xenon Lamp

Product Description

XUV 6000/SOLAR SIMULATION 285mm 22V Xenon Short Arc Lamp


Product Description


High-pressure short-arc xenon lamp is also called ultra-high pressure short-arc xenon lamp (working pressure above 10 atmospheres), short-arc xenon lamp (arc length is several millimeters), spherical xenon lamp (spherical shell), referred to as xenon lamp for short.

The lamp is a point light source with extremely high brightness, the color temperature is about 6000K, and the light color is close to sunlight. It is the light source with the best color rendering among gas discharge lamps at present. It is suitable for movie projections, searchlights, and train locomotives. and simulating sunlight.


XUV 2000/ STAGE Xenon Short Arc Lamp 28V 320mm High Pressure Xenon Lamp 0

Lamp Parameter

Lamp ModelXUV 2000/ STAGE
Operating current70A

Operaing voltage


28V
Electrode distance5.5
Height of light center145mm
Diameter52mm
L uninous Flux75000lm
Overal Length(1)360mm
Operating Length(2)320mm
Life time800h




Product details

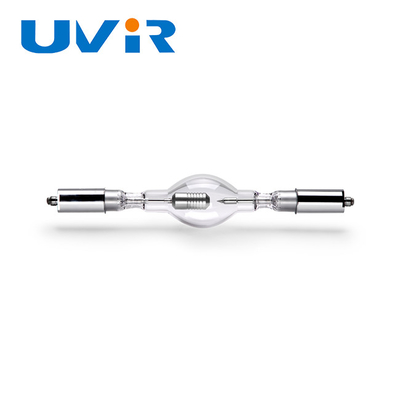

XUV 2000/ STAGE Xenon Short Arc Lamp 28V 320mm High Pressure Xenon Lamp 1

Other model you can choose:

Type

Operating

current

(A)

Operaing

voltage

(V)

Luninous

Flux

(lm)

Wind

cooling

speed

Electrode

distance

Diameter

(mm)

Overal

Length(l1)

(mm)

Operating Length(l2)

(mm)

Height

of light center

(mm)

XUV1000/STAGE45223200054.740285245125
XUV2000/STAGE70287500065.552360320145
XUV3000/STAGE1003013000013655395365170
XUV4000/STAGE13031155000136.560410380170
XUV5000/STAGE14534.5220000137.570420390175
XUV6000/STAGE15538250000158.575420390175
XUV7000/STAGE16043310000159.375425395175
XUV10000/STAGE195504800001510.590444414175

Other models please contact us in details.
