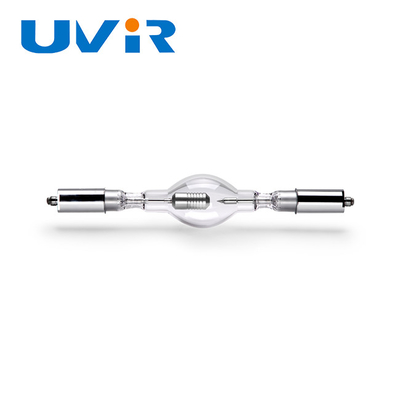

XUV 2000 Stage Xenon Short Arc Lamp 28V 320mm 52mm Quartz

Name: XUV 2000 Stage Xenon Short Arc Lamp 28V 320mm 52mm Quartz
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: XUV 2000/ STAGE
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	XUV 2000/ STAGE
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Diameter:

52mm

Average Life Time:

800h

Operaing Voltage:

28V

Overall Length:

360mm

Operating Length:

320mm

Material:

Quartz

Place Of Origin:

Guangdong, China

Application:

Stage Light

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

High Pressure Xenon Short Arc Lamp

28V Xenon Short Arc Lamp

320mm High Pressure Xenon Lamp

Product Description

XUV 2000/ STAGE Xenon Short Arc Lamp 28V 320mm High Pressure Xenon Lamp

Product Specifications

Attribute	Value
Diameter	52mm
Average Lifetime	800h
Operating Voltage	28V
Overall Length	360mm
Operating Length	320mm
Material	Quartz
Place of Origin	Guangdong, China
Application	Stage Light

Product Description

High-pressure short-arc xenon lamp, also known as ultra-high pressure short-arc xenon lamp (working pressure above 10 atmospheres), is a point light source with extremely high brightness. The color temperature is approximately 6000K, with light color closely resembling sunlight. It offers the best color rendering among gas discharge lamps, making it ideal for movie projections, searchlights, train locomotives, and sunlight simulation applications.

Lamp Parameters

Parameter	Value
Lamp Model	XUV 2000/ STAGE
Operating Current	70A
Operating Voltage	28V
Electrode Distance	5.5mm
Height of Light Center	145mm
Luminous Flux	75000lm

Product Details

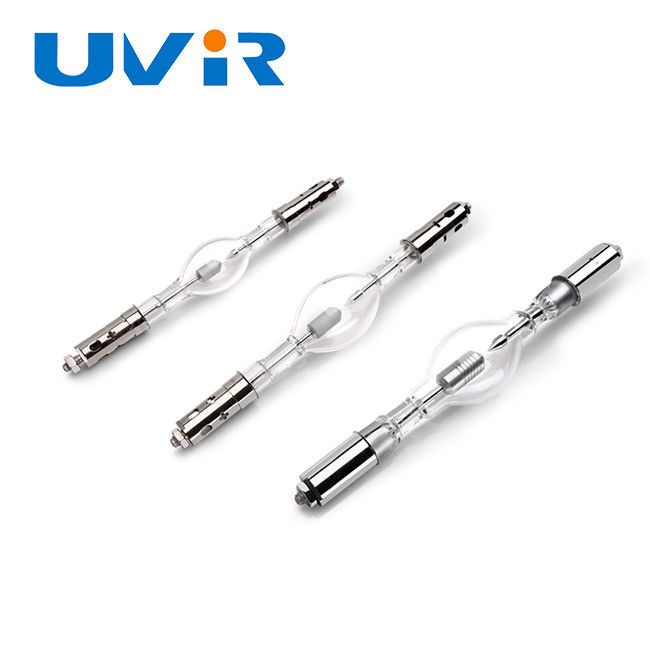

Available Models

Type	Current (A)	Voltage (V)	Flux (lm)	Cooling Speed	Electrode Distance	Diameter (mm)	Overall Length (mm)	Operating Length (mm)	Light Center (mm)
XUV1000/STAGE	45	22	32000	5	4.7	40	285	245	125
XUV2000/STAGE	70	28	75000	6	5.5	52	360	320	145
XUV3000/STAGE	100	30	130000	13	6	55	395	365	170
XUV4000/STAGE	130	31	155000	13	6.5	60	410	380	170
XUV5000/STAGE	145	34.5	220000	13	7.5	70	420	390	175
XUV6000/STAGE	155	38	250000	15	8.5	75	420	390	175
XUV7000/STAGE	160	43	310000	15	9.3	75	425	395	175
XUV10000/STAGE	195	50	480000	15	10.5	90	444	414	175

Applications

After Sales Service

Package tracking
Technical support
24-hour response time
Discounts for reorders
Replacements for quality issues
Strict customer confidentiality

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a professional manufacturer based in China.

Q: How can I get samples?

A: We're pleased to provide samples upon request.

Q: What are your quality control measures?

A: Quality is our top priority, with strict controls implemented throughout the entire production process.

Q: What is your delivery time?

A: Standard delivery time is 15-25 days, though we strive to expedite whenever possible.

For more information, please contact us. We're committed to providing the best products, competitive pricing, and excellent service.
