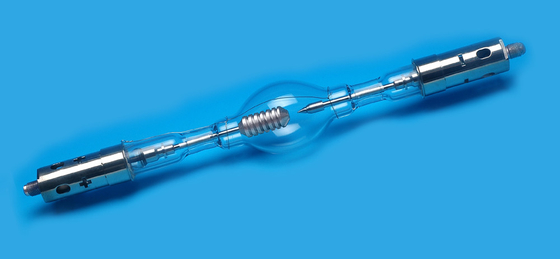

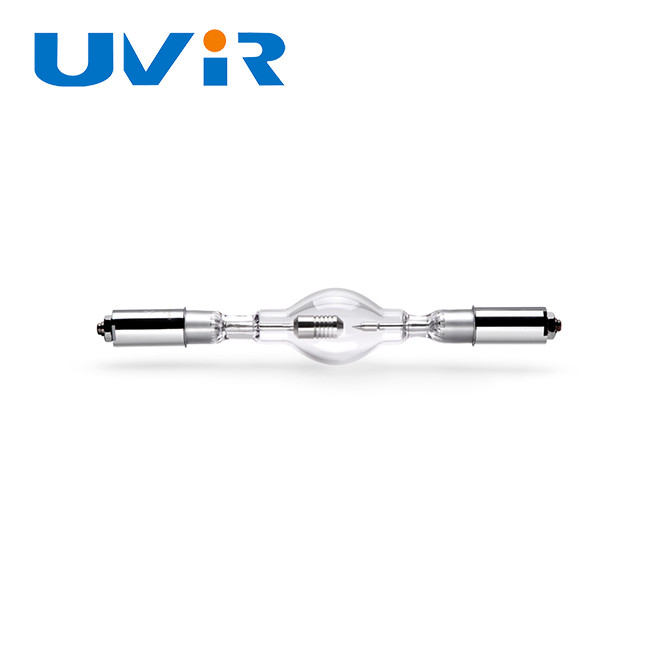

12.5V 80mm Short Arc Xenon Lamp 400h Life Quartz

Name: 12.5V 80mm Short Arc Xenon Lamp 400h Life Quartz
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: XUV50
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	XUV50
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Short Arc Xenon Lamp

Life Time:

400h

Luninous Flux:

1300lm

Height Of Light Center:

35mm

Diameter:

13mm

Place Of Origin:

Guangdong, China

Material:

Quartz

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

400h Xenon Short Arc Lamp

Quartz Xenon Short Arc Lamp

Product Description

12.5V 80mm Xenon Short Arc Lamp 400h Life Time Quartz Material

Product Specifications

Attribute	Value
Product name	Short Arc Xenon Lamp
Life time	400h
Luminous Flux	1300lm
Height of light center	35mm
Diameter	13mm
Place of Origin	Guangdong, China
Material	Quartz

Product Overview

The XUV50 12.5V 80mm Short Arc Xenon Lamp is designed for cinema projection, analog lighting, and locomotive searchlight applications. This high-performance lamp delivers exceptional brightness with a color temperature of approximately 6000K, closely matching natural sunlight.

Technical Parameters

Parameter	Value
Lamp Model	XUV50
Operating current	4A
Operating voltage	12.5V
Electrode distance	0.6mm
Diameter	13mm
Height of light center	35mm
Luminous Flux	1300lm
Overall Length	80mm
Operating Length	75mm
Life time	400h

Key Features

High-pressure short arc xenon lamp with working pressure above 10 atmospheres
Spherical quartz shell design with arc length of several millimeters
Exceptional brightness with color temperature of approximately 6000K
Superior color rendering index, making it one of the best gas discharge light sources
Ideal for film projection, searchlights, train headlights, and solar simulation

Applications

Customization & Support

Our professional team can provide customized solutions, technical drawings, and parameter adjustments to meet your specific requirements.

Quality Assurance

Our factory maintains strict quality control with CE, ISO9001, RoHS, and SGS certifications. We offer comprehensive after-sales support and quality guarantees.

Frequently Asked Questions

Are you a factory or trading company?

We are a professional factory with our own production facilities.

Where is your factory located?

Our factory is located in JiangMen City, Guangdong Province, China, accessible via Guangzhou Baiyun International Airport.

Can I get samples?

Yes, we provide samples for testing and evaluation.

What is your minimum order quantity?

We accept orders as small as 1 piece for sample evaluation.

What is your production lead time?

Standard lead time is 15 days after payment confirmation.

Do you offer customization services?

Yes, we provide OEM services including custom specifications and logo printing.
