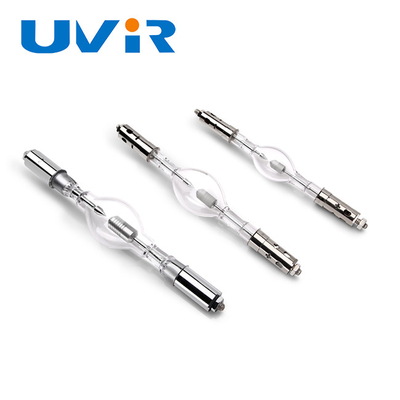

XUV4200W/SRX Xenon Short Arc Lamp 4200W 190000lm for Digital Projector

Name: XUV4200W/SRX Xenon Short Arc Lamp 4200W 190000lm for Digital Projector
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: XUV4200W/SRX
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	XUV4200W/SRX
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

Digital Projector, Simulates Sunlight

Material:

Quartz

Luninous Flux:

190000

Diameter:

60mm

Overal Length:

334mm

Operating Length:

295mm

Lifetime:

600h

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

60mm Short Arc Xenon Lamp

Quartz Short Arc Xenon Lamp

Digital Projector High Pressure Xenon Lamp

Product Description

XUV4200W/SRX Short Arc Xenon Lamp High Pressure Xenon Lamp For Digital Projector

Product Attributes

Attribute	Value
Application	digital projector, Simulates Sunlight
Material	Quartz
Luminous Flux	190000
Diameter	60mm
Overall Length	334mm
Operating Length	295mm
Lifetime	600h

Product Description

High-pressure short-arc xenon lamp, also called ultra-high pressure short-arc xenon lamp (working pressure above 10 atmospheres), is a point light source with extremely high brightness. The color temperature is about 6000K, and the light color is close to sunlight, making it the gas discharge lamp with the best color rendering currently available.

Ideal for movie projections, searchlights, train locomotives, and simulating sunlight applications.

Lamp Parameters

Parameter	Value
Lamp Model	XUV4200W/SRX
Rated power	4200W
Rated current	130A
Rated voltage	35V
Applicable projector model	SONY SRX-320
Current setting range	100 - 130 A
Luminous Flux	190000lm
Overall Length	345mm
Operating Length	295mm
Life time	600h

Product Details

Alternative Models Available

Type	Operating current	Operating voltage	Luminous Flux	Wind cooling speed	Electrode distance	Diameter (d)	Overall Length(l1)	Operating Length(l2)	Height of light center(a)
XUV2000W/DHP	80	28	80000	10	4.5	55	345	295	123
XUV2200W/DHP	83	26.5	88000	10	4.5	55	345	295	123
XUV3000W/DHP	100	32	135000	13	5	55	345	295	123
XUV4000W/DHP	130	35	180000	15	6	60	345	295	123
XUV 45BA	145	33	190000	15	6	70	415	375	158
XUV 60BA	160	38	280000	17	8	70	415	375	158
XUV 65BA	160	40	300000	17	8	70	415	375	158

Scope of Application

OEM Service

We can advise customers in selecting the right product for specific applications. Our Technical Department can design custom lamps based on your technical specifications.

We can manufacture various sizes and types of products according to customer requirements. Providing drawings is preferred, and we can produce samples for evaluation.

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples require 5-7 days, while mass production typically takes about 30 days.

Q3. Do you have any MOQ limit?

A: The minimum order quantity is usually 100 pieces per model.

Q4. How do you ship the goods?

A: We typically use DHL, UPS, FedEx or TNT for samples. Air and sea shipping are available for large quantities.

Q5. How to proceed with an order?

Inform us of your requirements or application
We provide a quotation based on your needs
Customer confirms samples and places deposit for formal order
We arrange production

Q6: How to deal with faulty products?

A: Our products are manufactured under strict quality control. During the guarantee period, we will send replacements with your next order.
