Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | IRP007 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Product Name: | Twin Tube Medium Wave Infrared Lamp | Power: | 2500W |
|---|---|---|---|
| Filament Temperature: | 800-950°C | Reponse Time: | 60-90s |
| Coating: | GOLD | Material: | Quartz Tube |
| Keyword: | Medium Wave IR Lamp | Voltage: | 415V |
| Total Length: | 1100mm | Heating Length: | 1020mm |
| Highlight: | Medium Wave Straight Infrared Light Lamp,2500w Medium Wave Infrared Light,415v Medium Wave Infrared Lamp |
||

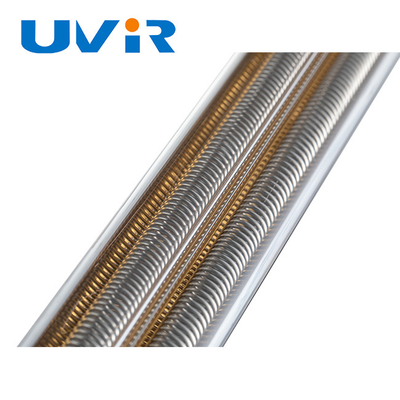

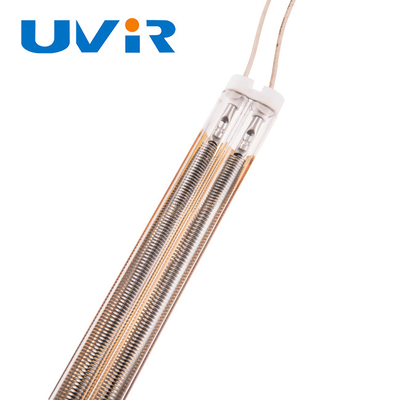

2500w 415v Gold-plated heating tube Medium wave straight infrared light
Infrared Medium Wave Introduction
Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.
The Advantages Of UVIR Heat Lamp
Carbon fiber heat lamp
(1)High-priced imported carbon fiber filament.
(2)The finished filament is smooth and does not fluff.
(3)The optimum power and maximum longevity.
Guartz glass tube
(1)High quality high-temperature quartz glass.
(2)Long serving life: over 5000 hours.
(3)nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Parameter
| Product name | Twin tueb Medium wave infrared lamp |
| UVIR NO. | IRP007 |
| Power | 2500W |
| Voltage | 415V |
| Filament temperature | 800-950°C |
| Material | Quartz tube |
| Coating | Gold |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details
High temperature heating
High thermal efficiency/Long life
Tungsten wire heats and heats the gas in the quartz tube under the AC voltage, resulting in infrared radiation. The red tube has excellent quality, high thermal efficiency, high power density, rapid heating, and power saving,long life.
Stock and Standard (Non-Stock) Twin Tube M-W L amps
| 220 | 1700 | 15x33 | 1280 | 1200 | B | TMG100006 | TMW100001 | TMC100001 |
| 230 | 500 | 8x18 | 400 | 300 | B | TMG100007 | TMW100002 | TMC100002 |
| 230 | 1000 | 11x23 | 600 | 500 | B | TMG100008 | TMW100003 | TMC100003 |
| 230 | 2000 | 15x33 | 900 | 800 | B | TMG100009 | TMW100004 | TMC100004 |
| 230 | 2500 | 15x33 | 1100 | 1000 | B | TMG1000010 | TMW100005 | TMC100005 |
| 230 | 2500 | 15x33 | 1300 | 1200 | C | TMG1000011 | TMW100006 | TMC100006 |
| 230 | 3250 | 15x33 | 1420 | 1300 | B | TMG1000012 | TMW100007 | TMC100007 |
| 230 | 3750 | 15x33 | 1600 | 1500 | B | TMG1000013 | TMW100008 | TMC100008 |
| 380 | 4800 | 15x34 | 2135 | 2035 | B | TMG1000014 | TMW100009 | TMC100009 |
| 400 | 4100 | 15x33 | 1800 | 1700 | B | TMG1000015 | TMW100010 | TMC100010 |
| 400 | 4500 | 15x33 | 1920 | 1800 | B | TMG1000016 | TMW100011 | TMC100011 |
| 400 | 5250 | 15x33 | 2200 | 2100 | B | TMG1000017 | TMW100012 | TMC100012 |
| 400 | 5750 | 15x33 | 2400 | 2300 | B | TMG1000018 | TMW100013 | TMC100013 |
| 400 | 6250 | 15x33 | 2600 | 2500 | B | TMG1000019 | TMW100014 | TMC100014 |
| 415 | 1250 | 15x33 | 1100 | 1030 | B | TMG1000020 | TMW100015 | TMC100015 |
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
Application field:
After Sales Service
1. Package tracking；2. Technical support；3. 24 hours working time；4. Discount for reorder；5. Replacements for quality problems；6. Confidentiality of customer information
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
1 Are you a truly factory?
Yes, we are a factory has more than 15-year experience. Welcome to visit us any time you want.
2 How can I get the sample from you?
If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.
3 How can I make the order?
You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.
4 Are the products safe enough?
Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including European CE and RoHS.
5 Do you accept customize design?
Yes, we are offering OEM and ODM service as well. If you have any good idea, we can help you realize it.
