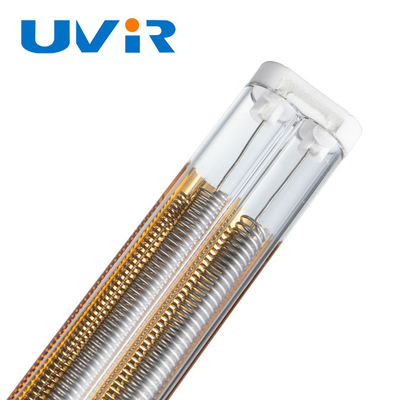

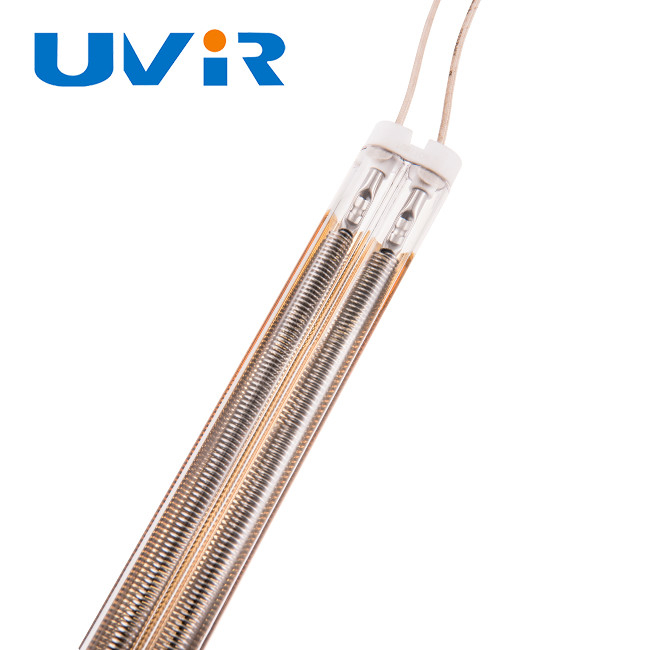

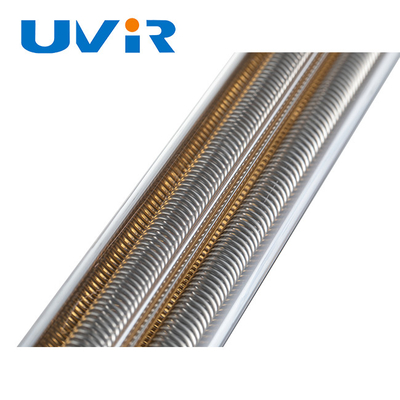

2500W Medium Wave Infrared Lamp Gold Coated 415V Quartz Tube

2500W Medium Wave Infrared Lamp Gold Coated 415V Quartz Tube

Brand Name:	UVIR
Model Number:	IRP007
MOQ:	2
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name:

Twin Tube Medium Wave Infrared Lamp

Power:

2500W

Filament Temperature:

800-950°C

Reponse Time:

60-90s

Coating:

GOLD

Material:

Quartz Tube

Keyword:

Medium Wave IR Lamp

Voltage:

415V

Total Length:

1100mm

Heating Length:

1020mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Medium Wave Straight Infrared Light Lamp

2500w Medium Wave Infrared Light

415v Medium Wave Infrared Lamp

Product Description

2500w Medium Wave Straight Infrared Light 415v Gold Plated Heating Tube

Product Specifications

Product name	Twin tube Medium wave infrared lamp
Power	2500W
Filament temperature	800-950°C
Response time	60-90s
Coating	GOLD
Material	Quartz Tube
Voltage	415V
Total length	1100mm
Heating length	1020mm

Product Description

Infrared Medium Wave Introduction

Infrared medium wave radiators are ideal for heating surfaces or thinner materials. They provide optimal absorption for plastics, water, and base materials, offering low cost, high strength, and long service life. Suitable for most material heating processes.

Key Advantages

Carbon Fiber Heat Lamp

High-quality imported carbon fiber filament
Smooth finished filament with no fluffing
Optimized power output for maximum longevity

Quartz Glass Tube

Premium high-temperature quartz glass construction
Extended service life: over 5000 hours
Non-toxic with no odor, eliminating contamination risks

Technical Parameters

Product name	Twin tube Medium wave infrared lamp
UVIR NO.	IRP007
Power	2500W
Voltage	415V
Filament temperature	800-950°C
Material	Quartz tube
Coating	Gold
OEM/ODM	Custom voltage, wattage, length, base, cables available

High Temperature Heating

This infrared lamp features high thermal efficiency and long lifespan. The tungsten wire heats under AC voltage, creating infrared radiation. The gold-plated quartz tube offers excellent quality, rapid heating, energy efficiency, and durability.

Standard Specifications

Voltage	Power	Dimensions	Total Length	Heating Length	Base Type	Model 1	Model 2	Model 3
220	1700	15x33	1280	1200	B	TMG100006	TMW100001	TMC100001

Applications

After Sales Service

Package tracking
Technical support
24-hour customer service
Discounts for repeat orders
Replacements for quality issues
Strict customer confidentiality

OEM Services

Our technical department can recommend or design the perfect heat lamp for your specific application. We produce custom sizes and types according to your requirements, with samples available upon request.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a factory with over 15 years of experience. We welcome visits to our facility.

How can I get samples?

We provide free samples for quality evaluation (customer pays shipping). Contact us to arrange.

How do I place an order?

Contact our sales team via email or online chat. We'll prepare a proforma invoice for your confirmation before processing your order.

Are your products safe?

All products undergo rigorous testing and hold CE and RoHS certifications for safety compliance.

Do you accept custom designs?

Yes, we offer comprehensive OEM and ODM services to realize your specific requirements.
