Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | TMW100007 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Product Name: | Twin Tueb Medium Wave Infrared Lamp | Power: | 4000W |
|---|---|---|---|
| Filament Temperature: | 800-950°C | Reponse Time: | 60-90s |
| Coating: | White | Material: | Quartz Tube |
| Twin Tube: | 11x23mm | Voltage: | 400V |
| Highlight: | Coating Infrared Heating Radiators,Halogen Infrared Heating Radiators,Double Tube Industrial Heating Accessories |
||

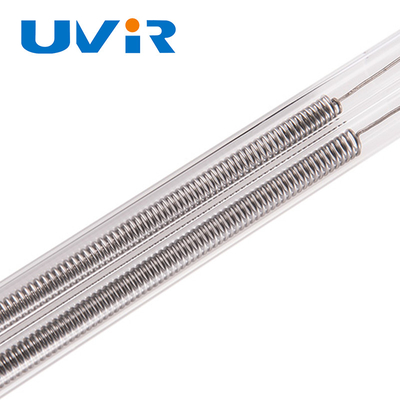

Double tube medium wave coating white halogen infrared heating radiator industrial heating accessories
Infrared Medium Wave Introduction
Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.
The Advantages Of UVIR Heat Lamp
Carbon fiber heat lamp
(1)High-priced imported carbon fiber filament.(2)The finished filament is smooth and does not fluff.(3)The optimum power and maximum longevity.
Guartz glass tube
(1)High quality high-temperature quartz glass.(2)Long serving life: over 5000 hours.(3)nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Parameter
| Product name | Twin tueb Medium wave infrared lamp |
| UVIR NO. | TMW100007 |
| Power | 4000W |
| Voltage | 400V |
| Filament temperature | 800-950°C |
| Material | Quartz tube |
| Coating | White |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details
Lead Wire Configurations and Lengths
18 Gauge insulated lead wire rated at 450°C and 600 V. Standard terminals are ring and spade. Lead length variable.

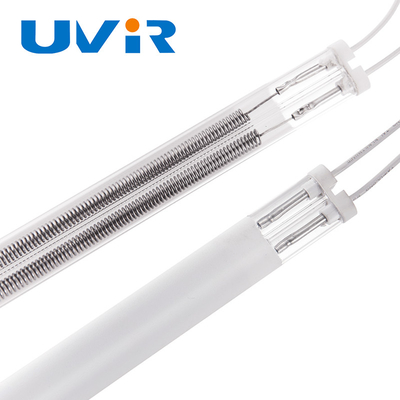

Reflective Layers Availability
Gold, up to 95% IR reflectance. The max.coil operating temperature should be 800%C.
White, a proprietary ceramic formulation that is applied to the exterior surface of the quartz tube with a 75% IR reflectance.
The maximum coil operating temperature should be 1,100*C.
TWIN TUBE MEDIUM-WAVE IR L AMPS
Stock and Standard (Non-Stock) Twin Tube M-W L amps
| 220 | 1700 | 15x33 | 1280 | 1200 | B | TMG100006 | TMW100001 | TMC100001 |
| 230 | 500 | 8x18 | 400 | 300 | B | TMG100007 | TMW100002 | TMC100002 |
| 230 | 1000 | 11x23 | 600 | 500 | B | TMG100008 | TMW100003 | TMC100003 |
| 230 | 2000 | 15x33 | 900 | 800 | B | TMG100009 | TMW100004 | TMC100004 |
| 230 | 2500 | 15x33 | 1100 | 1000 | B | TMG1000010 | TMW100005 | TMC100005 |
| 230 | 2500 | 15x33 | 1300 | 1200 | C | TMG1000011 | TMW100006 | TMC100006 |
| 230 | 3250 | 15x33 | 1420 | 1300 | B | TMG1000012 | TMW100007 | TMC100007 |
| 230 | 3750 | 15x33 | 1600 | 1500 | B | TMG1000013 | TMW100008 | TMC100008 |
| 380 | 4800 | 15x34 | 2135 | 2035 | B | TMG1000014 | TMW100009 | TMC100009 |
| 400 | 4100 | 15x33 | 1800 | 1700 | B | TMG1000015 | TMW100010 | TMC100010 |
| 400 | 4500 | 15x33 | 1920 | 1800 | B | TMG1000016 | TMW100011 | TMC100011 |
| 400 | 5250 | 15x33 | 2200 | 2100 | B | TMG1000017 | TMW100012 | TMC100012 |
| 400 | 5750 | 15x33 | 2400 | 2300 | B | TMG1000018 | TMW100013 | TMC100013 |
| 400 | 6250 | 15x33 | 2600 | 2500 | B | TMG1000019 | TMW100014 | TMC100014 |
| 415 | 1250 | 15x33 | 1100 | 1030 | B | TMG1000020 | TMW100015 | TMC100015 |
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
1 Are you a truly factory?
Yes, we are a factory has more than 15-year experience. Welcome to visit us any time you want.
2 How can I get the sample from you?
If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.
3 How can I make the order?
You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.
4 Are the products safe enough?
Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including European CE and RoHS.
5 Do you accept customize design?
Yes, we are offering OEM and ODM service as well. If you have any good idea, we can help you realize it.
