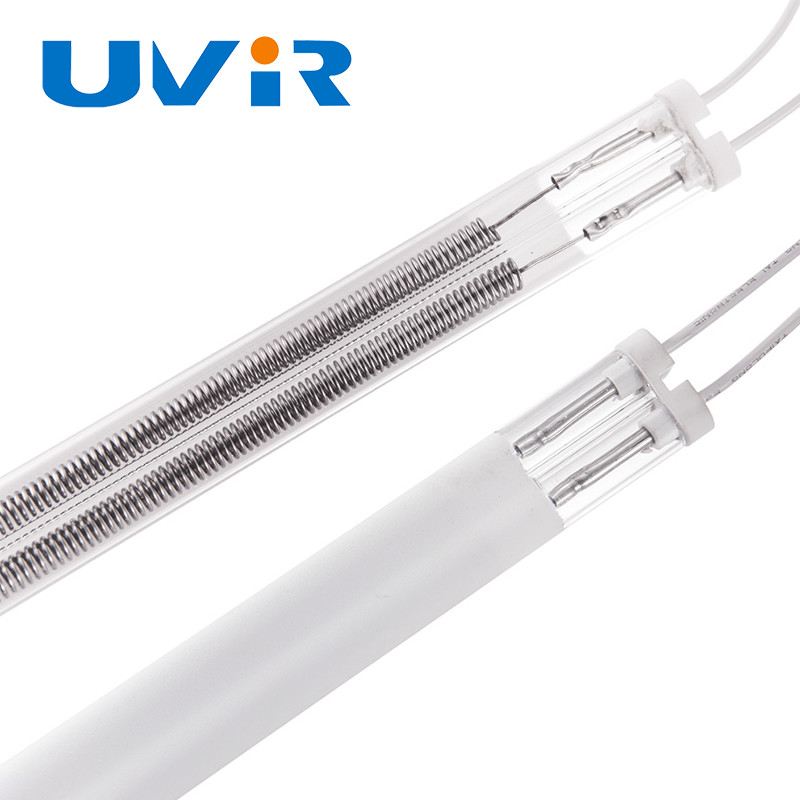

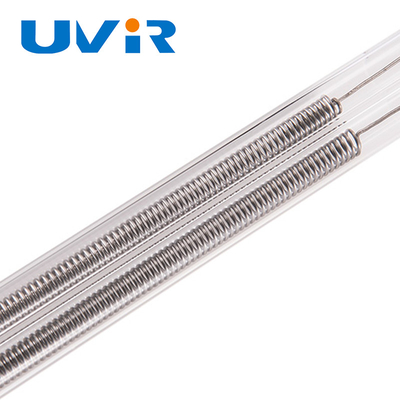

4000W Twin Tube Medium Wave Infrared Lamp White Coating 400V

Double tube medium wave coating white halogen infrared heating radiator industrial heating accessories designed for efficient thermal processing applications.

Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.

• High-priced imported carbon fiber filament
• The finished filament is smooth and does not fluff
• The optimum power and maximum longevity

• High quality high-temperature quartz glass
• Long serving life: over 5000 hours
• Nontoxic and no peculiar smell, no risk of contamination over environment or target object to be heated

18 Gauge insulated lead wire rated at 450°C and 600 V. Standard terminals are ring and spade. Lead length variable.

Gold: Up to 95% IR reflectance. The max coil operating temperature should be 800°C.

White: A proprietary ceramic formulation that is applied to the exterior surface of the quartz tube with a 75% IR reflectance. The maximum coil operating temperature should be 1,100°C.

• Package tracking
• Technical support
• 24 hours working time
• Discount for reorder
• Replacements for quality problems
• Confidentiality of customer information

We can advise the customer choosing the right heat lamp for the specific application. Furthermore, our Technical Department can design the right lamp based on the customer's specific technical instructions.

We can produce many sizes and types of heat lamps according to customers' requirements. If you have drawings, we can make samples for you.
