products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Medium Wave Infrared Lamp
Created with Pixso.

6000W Medium Wave Infrared Lamp 500V Quartz Heating Tube

Name

6000W Medium Wave Infrared Lamp 500V Quartz Heating Tube

Brand Name: UVIR
Model Number: TMG100187
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Voltage:
500V
Power:
6000W
Keyword:
Medium Wave Infrared Lamp
Light Source:
High Quality Quartz Tube
Filament Temperature:
800-950°C
OEM/ODM:
Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available
Place Of Origin:
Guangdong, China
Total Length:
1600mm
Heating Length:
1500mm
Dsgn Type:
B
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

OEM Medium Wave IR Lamp

,

6000W Medium Wave IR Lamp

,

500V Medium Wave Infrared Heating Lamp

Product Description
OEM 6000W Medium Wave Infrared Lamp, Semi Gold Plated Infrared Heating Tube
Product Specifications
Attribute Value
Voltage 500V
Power 6000W
Light Source High Quality Quartz Tube
Filament temperature 800-950°C
OEM/ODM Many types of voltage, wattage, length, base, cables available
Place of Origin Guangdong, China
Total length 1600mm
Heating length 1500mm
Design Type B
Product Overview

Our company specializes in manufacturing and wholesaling infrared lamps, ultraviolet lamps, and related accessories. We offer customized solutions to meet specific customer requirements.

Medium Wave Infrared Technology

Medium wave infrared radiators are ideal for heating surfaces or thinner materials. They are particularly effective for plastics, water, and base materials, offering low cost, high strength, and long lifespan.

Technical Parameters
Product name Twin tube Medium wave infrared lamp
UVIR NO. TMG100187
Power 6000W
Voltage 500V
Material Quartz tube
Coating Gold

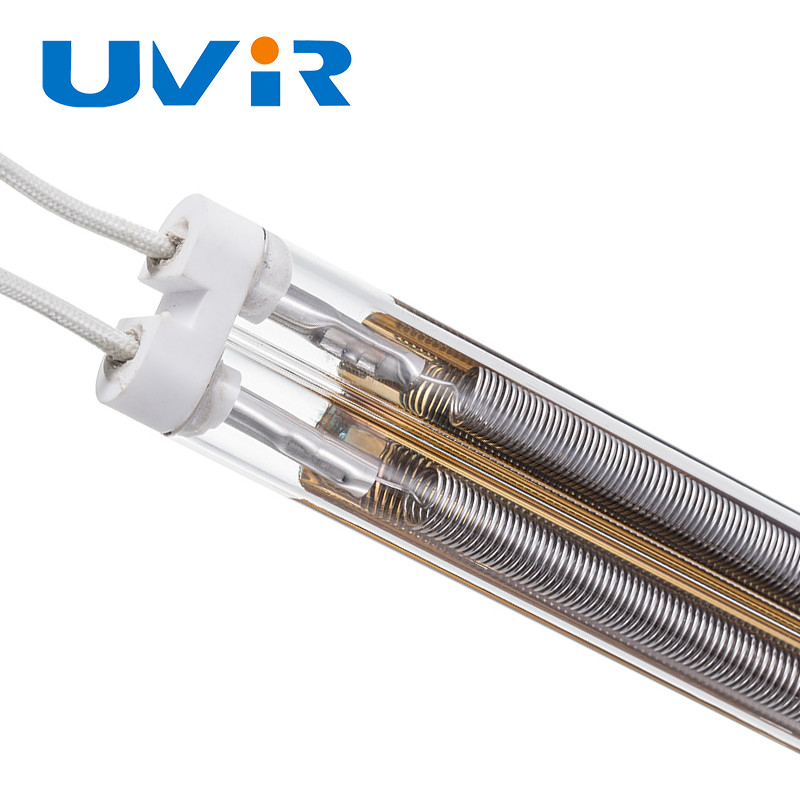

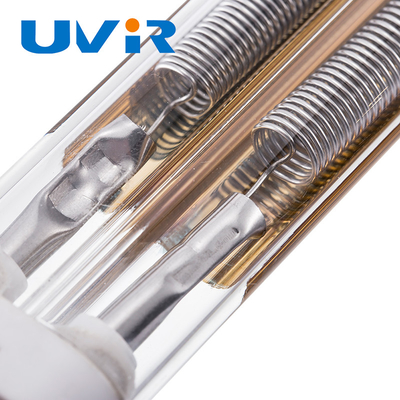

Product Images
6000W Medium Wave Infrared Lamp 500V Quartz Heating Tube 0 6000W Medium Wave Infrared Lamp 500V Quartz Heating Tube 1 6000W Medium Wave Infrared Lamp 500V Quartz Heating Tube 2
Key Features
  • Tungsten wire heats gas in quartz tube under AC voltage, producing infrared radiation
  • High thermal efficiency and power density
  • Rapid heating and energy saving
  • Long operational lifespan
Standard Specifications
220 1700 15x33 1280 1200 B TMG100006 TMW100001 TMC100001
230 500 8x18 400 300 B TMG100007 TMW100002 TMC100002

Contact us for custom specifications - our professional team can provide technical knowledge and drawings.

Applications
  • Automotive: Paint drying, plastic welding, adhesive curing
  • Food industry: Fruit dehydration, chocolate melting
  • Glass industry: Screen printing, bending, laminating
  • Plastics: PVP heating, thermoplastic processing
  • Semiconductors: Circuit soldering, capacitor plate drying
  • Textiles: Fiber drying processes
  • Wood industry: Drying, paint/ink curing
After-Sales Service
  • Package tracking
  • Technical support
  • 24-hour response time
  • Reorder discounts
  • Quality problem replacements
  • Customer information confidentiality
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, we welcome sample orders to test quality. Mixed samples are acceptable.
Q2. What about the lead time?
Samples: 5-7 days. Mass production: approximately 30 days.
Q3. Do you have any MOQ limit?
Minimum order quantity is typically 2 pieces per model.
Q4. How do you ship the goods?
Samples: DHL, UPS, FedEx or TNT. Bulk orders: airline or sea shipping.
Q5. How to proceed an order?
1. Share requirements 2. Receive quote 3. Confirm samples/deposit 4. Production begins.
Q6. How to deal with faulty products?
Our strict QC minimizes defects. During guarantee period, replacements shipped with next order.
