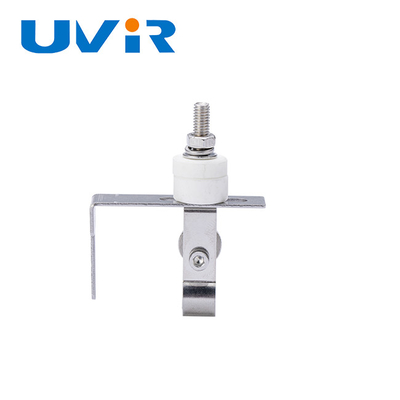

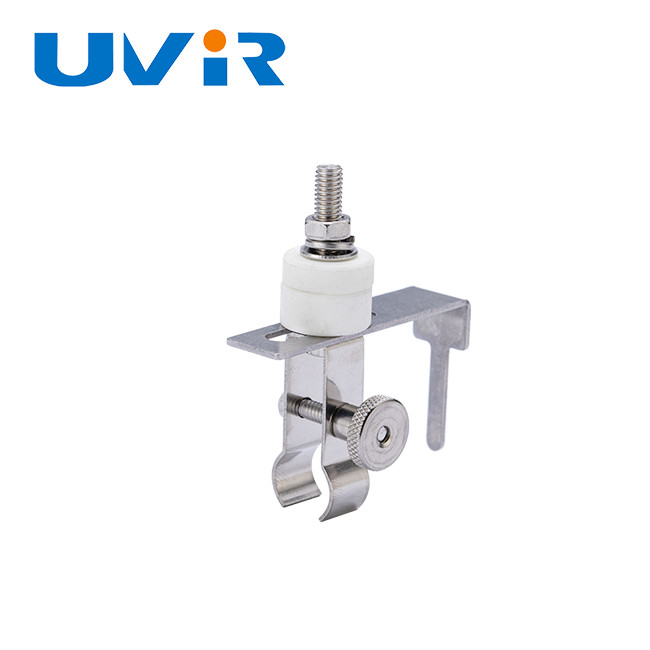

Stainless Steel Medium Wave IR Lamp Holder 10mm White Base

Name: Stainless Steel Medium Wave IR Lamp Holder 10mm White Base
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: 10mm
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	10mm
MOQ:	100
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Material:

Stainless Steel

Structure:

Wave Clamp

Wave Range:

Medium Wave

Tube Diameter:

10mm

Base:

Ceramic White Base

Application:

Twin Tube M-W Infrared Lamp

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

White Base Stainless Steel Lamp Holder

Stainless Steel Lamp Holder 10mm

IR stainless steel bulb holder

Product Description

White Base Stainless Steel Lamp Holder for Medium Wave IR Lamps 10mm

Product Specifications

Attribute	Value
Material	Stainless Steel
Structure	Wave Clamp
Wave Range	Medium Wave
Tube Diameter	10mm
Base	Ceramic white base
Application	Twin tube M-W infrared lamp

Product Details

Our company specializes in manufacturing and wholesaling ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and related accessories including lamp stands and transformers. Custom solutions are available to meet specific requirements.

Product name	IR lamp holder
Type	Lamp clip for medium wave twin tube
Color	Ceramic white + silver
Material	Ceramic + aluminum
Application area	Twin tube Infrared Heat Lamp
MOQ	100pcs

Clamps for Medium Wave Twin Lamps

a	b	c	d	e	M	UVIR NO.
10	23	25	20	10	M5 x 20	GJ0002L
15	33	30	25	15	M5 x 25	GJ0003L
8	18	25	25	10	M5 x 20	GJ0001L

Operating Instructions

The infrared twin-tube emitter is designed for horizontal operation only. Special IR emitters for vertical installation positions are specially manufactured and marked accordingly.

For proper installation, use one mounting and one spring clamp (manufactured by HNI), with additional central supports if necessary. The IR twin-tube emitter must be secured to a stable support plate (steel support plate: > 1.5 mm).

Installation Procedure

Drill mounting holes with Φ9.2 mm for clamp spring in the support plate at distance L.
Screw the clamp spring in place with ceramic washers on the mounting plate.
Press the IR emitter into position in the retaining spring clip, ensuring it points at the surface to be heated. The gold reflector should face the support plate.
Tighten the fastening nuts on the knurled nut.

Important: Avoid tension on the press seal when pulling the lead wire. Maintain a bending radius of lead wire > 30 mm.

Mounting Dimensions

L = Overall length of emitter LG: 2x35 mm (two-sided connection) or L = Overall length of emitter LG: 35 mm -20 mm (one-sided connection)

Central support is required when exceeding these overall emitter lengths for LG: Tube dimensions 23 x 11, LG > 1500 mm and tube dimensions 34x14, LG > 2000 mm.

After installation, clean the quartz glass tube on the side without gold plating using the provided cleaning cloth or a clean linen cloth soaked in methylated spirit to remove impurities or fingerprints.

Other IR Holder Parameters

Wave Range	Tube Diameter(mm)	UVIR Model No	Heraeus Model No.
Short Wave	8 x 18	GJ0001	09759293
Short Wave	11 x 23	GJ0002	09759287
Short Wave	15 x 33	GJ0003	09758026
Medium Wave	8 x 18	GJ0001L	09758010
Medium Wave	11 x 23	GJ0002L	09758013
Medium Wave	15 x 33	GJ0003L	09758016

Applications

After Sales Service

Package tracking
Technical support
24 hours working time
Discount for reorder
Replacements for quality problems
Confidentiality of customer information

Our Services & Strength

Expert sales teams for accurate communication
Professional technical teams for product development
Technical production teams for assembly line production
Quality inspection teams for quality control
Experienced after-sales teams for customer support

Frequently Asked Questions

1. Are you a factory or trading company?

We are a professional factory.

2. Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to GuangZhou BAIYUN airport directly. We welcome all clients to visit us!

3. Can I get some samples?

We are happy to offer samples for checking and testing.

4. Do you have any MOQ limit?

Low MOQ, 1pcs for sample checking is available.

5. What about the lead time?

15 days after receiving your payment.

6. How does your factory do regarding quality control?

"Quality is priority." We maintain strict quality control from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

7. About customized service?

We provide customized heat solutions and OEM services, including printing your logo on products as required.
