Medium Wave Infrared Lamp
Created with Pixso.

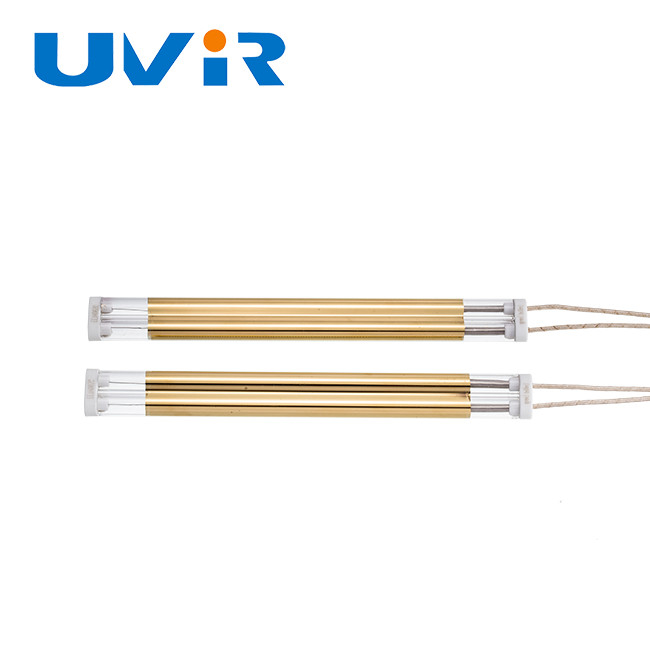

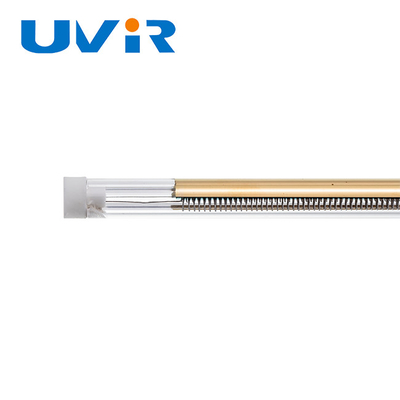

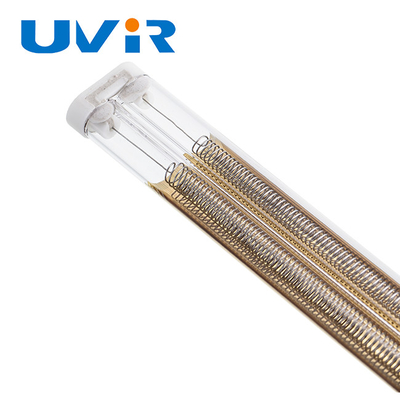

1kW Medium Wave Infrared Lamp 230V Gold Coated Quartz Heater

1kW Medium Wave Infrared Lamp 230V Gold Coated Quartz Heater

1kW Medium Wave Infrared Lamp 230V Gold Coated Quartz Heater

Brand Name: UVIR
Model Number: TMG100008
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Voltage:
230V
Power:
1000W
Keyword:
Medium Wave Infrared Lamp
Light Source:
High Quality Quartz Tube
Filament Temperature:
800-950°C
OEM/ODM:
Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available
Place Of Origin:
Guangdong, China
Coating:
Gold
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

1kw Medium Wave Infrared Lamp

,

Gold Reflector Quartz Heating Lamps

,

Gold Reflector Medium Wave Infrared Lamp

Product Description
1KW Medium Wave Infrared Lamp with Gold Reflector
Product Specifications
Attribute Value
Voltage 230V
Power 1000W
Light Source High Quality Quartz Tube
Filament Temperature 800-950°C
Coating Gold
Place of Origin Guangdong, China
Product Description

Our 1KW medium wave infrared lamp features a quartz heating element with gold reflector coating, designed for efficient and durable industrial heating applications.

1kW Medium Wave Infrared Lamp 230V Gold Coated Quartz Heater 0
Key Features
  • High-quality transparent quartz tube construction
  • Gold coating for optimal infrared reflection
  • Halogen principle increases infrared radiation density
  • Universal burning position for flexible installation
  • Customizable voltage, wattage, length, and base options
Technical Parameters
Product Name Twin Tube Medium Wave Infrared Lamp
UVIR No. TMG100008
Power 1000W
Voltage 230V
Material Quartz Tube
1kW Medium Wave Infrared Lamp 230V Gold Coated Quartz Heater 1
Standard Specifications
Contact us for custom specifications not listed below
Voltage Wattage Dimensions (mm) Length (mm) Light Center (mm) Base Model No.
220 1700 15x33 1280 1200 B TMG100006
230 500 8x18 400 300 B TMG100007
230 1000 11x23 600 500 B TMG100008
Applications
  • Automotive: Paint drying, plastic welding, adhesive curing
  • Food Industry: Fruit/vegetable dehydration, chocolate melting
  • Glass Industry: Screen printing, bending, laminating
  • Plastics: PVP heating, thermoplastic processing, rubber drying
  • Semiconductors: Printed circuit soldering, capacitor plate drying
  • Textiles: Fiber drying processes
  • Wood: Drying, paint/ink drying
Customization Services
  • Custom specifications for voltage, wattage, length, base type, and cables
  • Universal burning position options
  • OEM services including custom branding
  • Single unit available for quality testing
After-Sales Support
  • Package tracking for all shipments
  • Technical support available
  • 24-hour response time
  • Discounts for repeat orders
  • Quality problem replacements
  • Strict customer confidentiality
Frequently Asked Questions
Q: Can I order samples?
A: Yes, we welcome sample orders to test quality. Mixed samples are acceptable.
Q: What is the production lead time?
A: Samples require 5-7 days, mass production typically takes about 30 days.
Q: Is there a minimum order quantity?
A: MOQ is typically 2 pieces per model.
Q: How are products shipped?
A: Samples ship via DHL/UPS/FedEx/TNT. Large quantities ship by air or sea.
Q: What is your order process?
A: 1) Share requirements 2) Receive quote 3) Confirm samples/deposit 4) Production begins.
Q: How are quality issues handled?
A: Our strict QC minimizes defects. During warranty, replacements ship with next order.
