Xenon Short Arc Lamp
Created with Pixso.

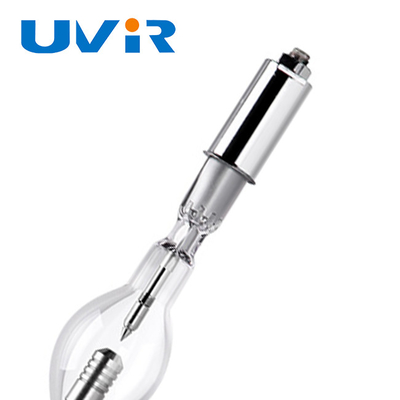

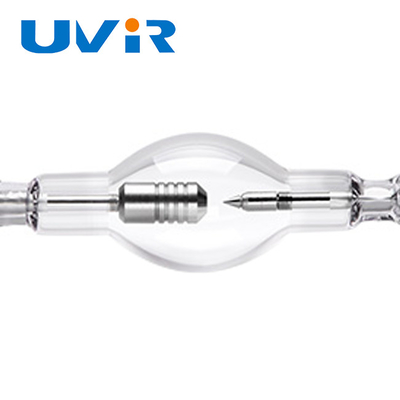

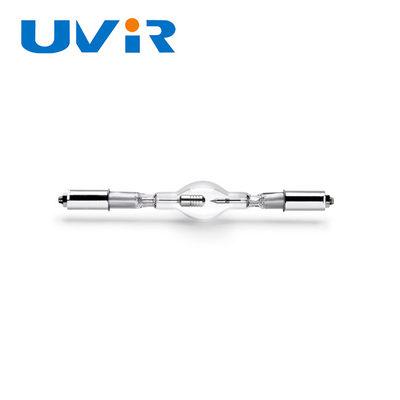

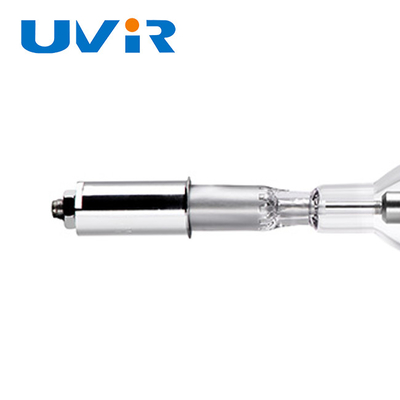

4000W Xenon Short Arc Lamp Quartz Silver for Stage Lighting

4000W Xenon Short Arc Lamp Quartz Silver for Stage Lighting

4000W Xenon Short Arc Lamp Quartz Silver for Stage Lighting

Brand Name: UVIR
Model Number: XUV 4000/ STAGE
MOQ: 10
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Application:
Stage Light
Place Of Origin:
Guangdong, China
Material:
Quartz
Height Of Light Center(a):
170mm
Luninous Flux:
155000 Lm
Overal Length(1):
410mm
Operating Length(2):
380mm
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Highlight:

Silver Xenon Short Arc Lamp

,

Quartz Xenon Short Arc Lamp

,

Xenon Short Arc Lamp 6000k

Product Description
Quartz Silver Xenon Short Arc Lamp 4000w for Stage Light
Application Stage light
Place of Origin Guangdong, China
Material Quartz
Height of light center (a) 170mm
Luminous Flux 155000 lm
Overall Length (1) 410mm
Operating Length (2) 380mm
Product Description

XUV 4000 / STAGE Xenon Arc Lamp Quartz Silver Short type for stage light

  • High pressure short arc xenon lamp is also called the ultrahigh pressure short arc xenon lamp (work pressure in the 10 atmosphere above).
  • Short arc xenon lamp (arc length in several millimeters), spherical xenon lamp (shell is spherical), referred to as the xenon lamp.
  • The lamp is a kind of high brightness point light source, color temperature for 6000K or so, light color close to the sun, is the gas discharge lamp in color rendering one of the best light sources.
  • Suitable for film screening, searchlighting, train driving and simulated sunlight applications.
4000W Xenon Short Arc Lamp Quartz Silver for Stage Lighting 0
Lamp Parameters
Parameter Value
Lamp Model XUV 4000/STAGE
Operating current 130A
Operating voltage 31V
Electrode distance 13mm
Height of light center 170mm
Diameter 60mm
Luminous Flux 155000lm
Overall Length (1) 410mm
Operating Length (2) 380mm
Life time 1000h
Product Details
4000W Xenon Short Arc Lamp Quartz Silver for Stage Lighting 1
Available Models
Type Current (A) Voltage (V) Flux (lm) Cooling Speed Electrode (mm) Diameter (mm) Length (mm) Op. Length (mm) Height (mm)
XUV1000/STAGE 45 22 32000 5 4.7 40 285 245 125
XUV2000/STAGE 70 28 75000 6 5.5 52 360 320 145
XUV3000/STAGE 100 30 130000 13 6 55 395 365 170
XUV4000/STAGE 130 31 155000 13 6.5 60 410 380 170
XUV5000/STAGE 145 34.5 220000 13 7.5 70 420 390 175
XUV6000/STAGE 155 38 250000 15 8.5 75 420 390 175
XUV7000/STAGE 160 43 310000 15 9.3 75 425 395 175
XUV10000/STAGE 195 50 480000 15 10.5 90 444 414 175

Other models available - please contact us for details.

Applications
4000W Xenon Short Arc Lamp Quartz Silver for Stage Lighting 2
After Sales Service
  • Package tracking
  • Technical support
  • 24 hours working time
  • Discount for reorder
  • Replacements for quality problems
  • Confidentiality of customer information
Frequently Asked Questions
Q1: Are you factory or trading company?

A: We are trading company with factory.

Q2: Can I have a sample first before bulk order?

A: Yes. We offer you free sample to test the quality, you only undertake the freight.

Q3: What's your delivery date?

A: 5-7 working days for samples and 15-25 days for bulk order.

Q4: What's your shipping ways?

A: 1. By Express: TNT, DHL, FedEX, UPS, EMS, etc... Door to door
2. By Air: Please let us know your airport.
3. By Sea: Please let us know your delivery port.

Q5: What's your MOQ?

A: Our MOQ is 100pcs. First order as samples can be less than 100 pcs.

Q6: Are the products safe enough?

A: Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations.
