4200W High Pressure Spherical Xenon Short Arc Lamp 190000lm

Name: 4200W High Pressure Spherical Xenon Short Arc Lamp 190000lm
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: XUV4200W/SRX
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	XUV4200W/SRX
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

Digital Projector, Simulates Sunlight

Material:

Quartz

Luninous Flux:

190000

Diameter:

60mm

Overal Length:

334mm

Operating Length:

295mm

Lifetime:

600h

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Spherical Xenon Short Arc Lamp

High Pressure Xenon Short Arc Lamp

Simulates Sunlight xenon arc lamp

Product Description

High Pressure Spherical Xenon Short Arc Lamp for Simulates Sunlight

Product Attributes

Attribute	Value
Application	digital projector, Simulates Sunlight
Material	Quartz
Luminous Flux	190000
Diameter	60mm
Overall Length	334mm
Operating Length	295mm
Lifetime	600h

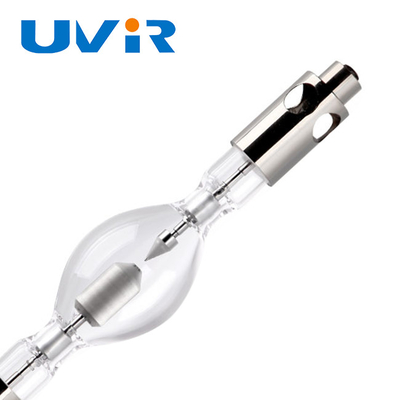

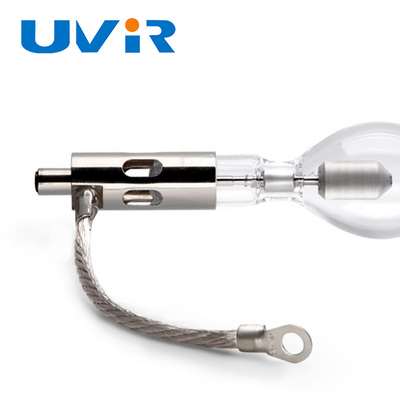

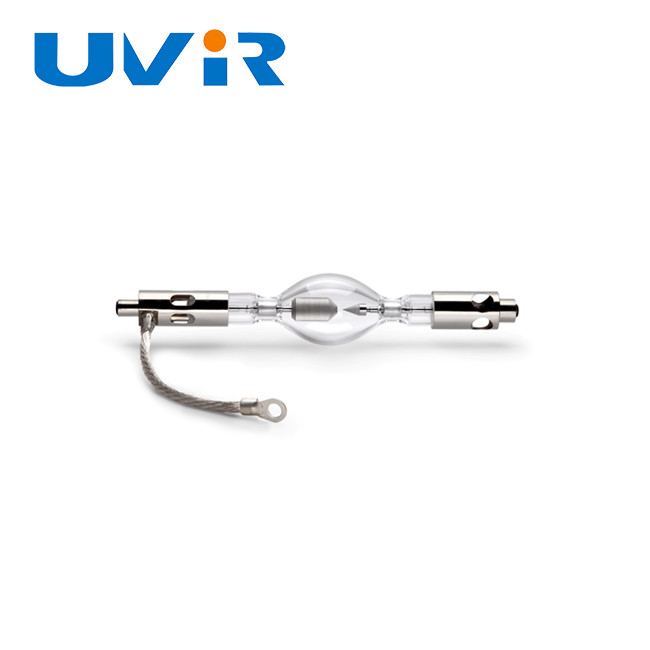

XUV4200W/SRX Short Arc Xenon Lamp

High-pressure short-arc xenon lamp is also called ultra-high pressure short-arc xenon lamp (working pressure above 10 atmospheres), short-arc xenon lamp (arc length is several millimeters), spherical xenon lamp (spherical shell), referred to as xenon lamp for short.

The lamp is a point light source with extremely high brightness, the color temperature is about 6000K, and the light color is close to sunlight. It is the light source with the best color rendering among gas discharge lamps at present. It is suitable for movie projections, searchlights, train locomotives, and simulating sunlight.

Lamp Parameters

Parameter	Value
Lamp Model	XUV4200W/SRX
Rated power	4200W
Rated current	130A
Rated voltage	35V
Applicable projector model	SONY SRX-320
Current setting range	100 - 130 A
Luminous Flux	190000lm
Overall Length	345mm
Operating Length	295mm
Life time	600h

Product Details

Alternative Models

Type	Operating current	Operating voltage	Luminous Flux	Wind cooling speed	Electrode distance	Diameter (d)	Overall Length(l1)	Operating Length(l2)	Height of light center(a)
XUV2000W/DHP	80	28	80000	10	4.5	55	345	295	123
XUV2200W/DHP	83	26.5	88000	10	4.5	55	345	295	123
XUV3000W/DHP	100	32	135000	13	5	55	345	295	123
XUV4000W/DHP	130	35	180000	15	6	60	345	295	123
XUV 45BA	145	33	190000	15	6	70	415	375	158
XUV 60BA	160	38	280000	17	8	70	415	375	158
XUV 65BA	160	40	300000	17	8	70	415	375	158

Other models please contact us for details.

Scope of Application

OEM Service

We can advise the customer choosing the right product for the specific application. Furthermore, our Technical Department can design the right lamp based on the customer's specific technical instructions.

We can produce many sizes and types of products according to customer requirements. If you have drawings available, we can create samples for you.

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 5-7 days, about 30 days for mass production.

Q3. Do you have any MOQ limit?

A: Usually MOQ is 100pcs for each model.

Q4. How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT for samples. Airline and sea shipping for large quantities.

Q5. How to proceed an order?

A: First let us know your requirements or application. Second, we quote according to your requirements. Third, customer confirms the samples and places deposit for formal order. Fourth, we arrange the production.

Q6: How to deal with the faulty?

A: First, our products are produced under strict quality control. Second, during the guarantee period, we will send replacements with your next order.
