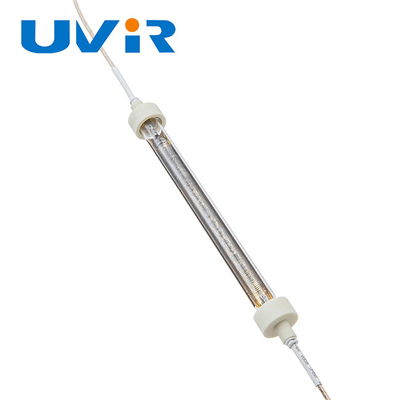

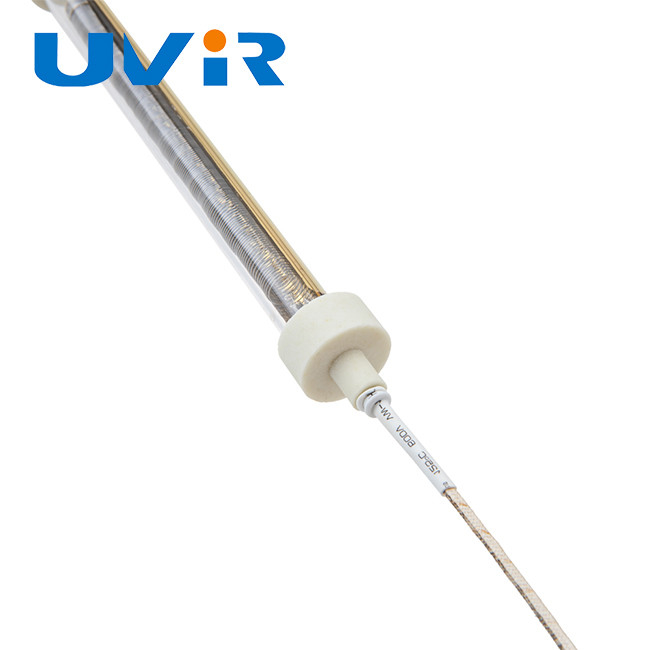

SC05 Medium Wave Infrared Lamp Tungsten Halogen for Semiconductor

Name: SC05 Medium Wave Infrared Lamp Tungsten Halogen for Semiconductor
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: SC05
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	SC05
MOQ:	2
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Tungsten Halogen Lamp

Base Type:

SC05

Warranty(Year):

1 Year

Color:

Gold

Wave Length:

Medium Wave

Product Name:

Single Tube Medium Wave IR Emitters

Light Source:

Tungsten Filament

Reaction Time:

60-90s

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

SC05 Medium Wave Infrared Lamp

Semiconductor Medium Wave Infrared Lamp

Product Description

SC05 Medium Wave Infrared Lamp

High thermal efficiency for semiconductor applications

Product Specifications

Attribute	Value
Type	Tungsten halogen lamp
Base Type	SC05
Warranty	1 Year
Color	Gold
Wave Length	Medium wave
Product Name	Single Tube Medium Wave IR Emitters
Light Source	Tungsten filament
Reaction Time	60-90s

Product Description

SC05 Medium Wave Quartz Lamps Tungsten halogen lamp for semiconductor industrial equipment

Key Features

Carbon fiber heat lamp: High-quality imported carbon fiber filament with smooth finish and optimal power/longevity
Quartz glass tube: High-temperature quartz glass with 5000+ hour lifespan, non-toxic and contamination-free

Technical Specifications

Product Name	Medium Wave IR heating lamp
Maximum wavelength range	2.3-3.2μm
Voltage	55-575V (customizable)
Wattage	200-4000W (customizable)
Base	SC05
Material	Quartz tube
Reflector	Gold
OEM/ODM	Custom voltage, wattage, length, base, cables available

Performance Characteristics

Tungsten wire heats and heats the gas in the quartz tube under AC voltage, resulting in infrared radiation. Features high thermal efficiency, high power density, rapid heating, energy savings, and long lifespan.

Infrared wavelengths are in the range of 750nm to 1mm electromagnetic spectrum.

Application Scenarios

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products (e.g., banners machine)

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

Frequently Asked Questions

Q1. Can all the products be customized?

We are the factory of making IR lamps, UV lamps, and IR accessories. All our products can be customized according to your specifications.

Q2. What is the outer package of the product?

Carton packing or wooden packing available.

Q3. What is the processing cycle?

Some products are in stock. Custom orders typically require about 15 days for production.

Q4. What is the minimum order quantity?

Customized IR Lamps minimum order is typically 10 pieces.
