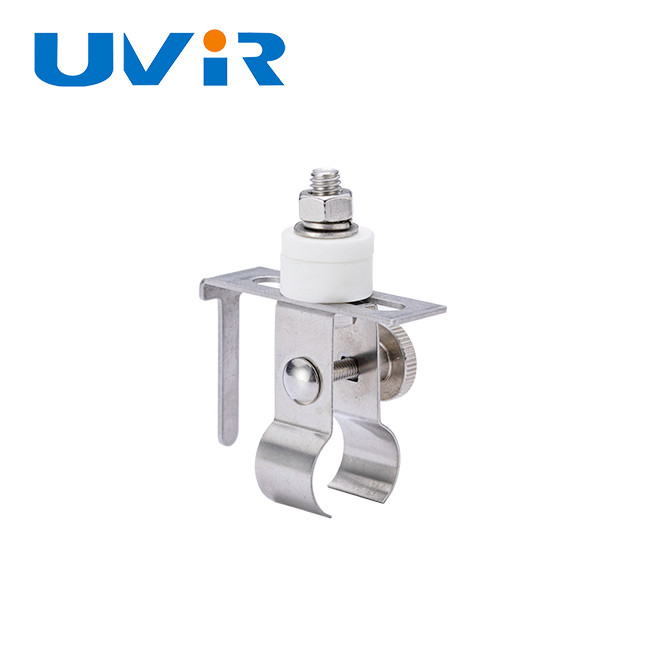

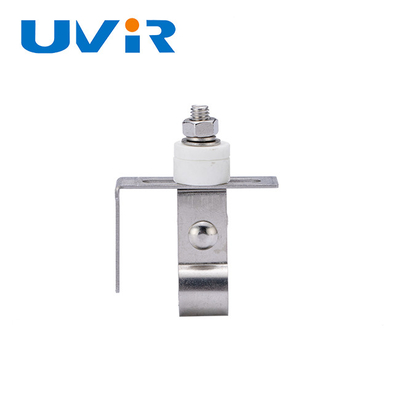

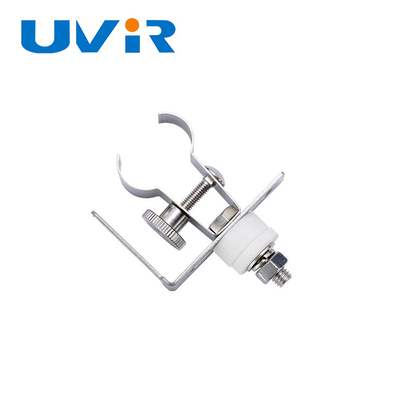

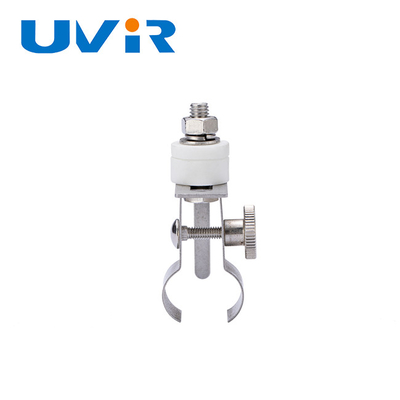

Stainless Steel Medium Wave IR Lamp Holder GJ0002L 11x23mm

Twin Tube configuration with stainless steel construction for durability and heat resistance.

Cross-Section	a	b	c	d	e	M	UVIR NO.
	10	23	25	20	10	M5 x 20	GJ0002L
	15	33	30	25	15	M5 x 25	GJ0003L
	8	18	25	25	10	M5 x 20	GJ0001L

The infrared twin-tube emitter is designed for horizontal operation only. Special IR emitters for vertical installation positions are specially manufactured and marked as such.

To install our IR emitters, typically one mounting and one spring clamp are required, along with central supports if necessary, all manufactured by HNI. The IR twin-tube emitter must be secured to a stable support (steel support plate: > 1.5 mm).

1. Drill mounting holes with Φ9.2 mm for clamp spring in the support (mounting plate) at distance L.
2. Screw the clamp spring in place with ceramic washers on the mounting plate.
3. Press the IR emitter into position in the retaining spring clip. The emitter must point at all the surface to be heated. The gold reflector should be pointing towards the support plate.
4. Tighten the fastening nuts on the knurled nut.

Pulling the lead wire must not cause any tension on the press seal. Bending radius of lead wire: > 30 mm

L = Overall length of emitter LG: 2x35 mm (two-sided connection) or L = Overall length of emitter LG: 35 mm -20 mm (one-sided connection)

If the following overall emitter lengths are exceeded for LG, a central support is necessary:

• Tube dimensions: 23 x 11, LG > 1500 mm
• Tube dimensions: 34 x 14, LG > 2000 mm

After installation, the quartz glass tube of the IR emitter must be cleaned on the side without gold plating. Use the included cleaning cloth or a clean linen cloth (without textile finishing agents) soaked in methylated spirit (such as rubbing alcohol) to remove any impurities or fingerprints from the surface.
