4800W Twin Tube Medium Wave Infrared Lamp Quartz Heating

4800W Twin Tube Medium Wave Infrared Lamp Quartz Heating

Brand Name:	UVIR
Model Number:	TMW100009
MOQ:	2
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name:

Twin Tube Medium Wave Infrared Lamp

Power:

4800W

Coating:

White

Reponse Time:

60-90s

Material:

Quartz Tube

Type:

Medium Wave

Place Of Origin:

Guangdong, China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

4800W Quartz Heating IR Lamp

15x33mm Quartz Heating IR Lamp

Twin Tube Quartz Heating IR Lamp

Product Description

4800W Medium Wave Infrared Lamp 15x33mm Quartz Heating IR Lamp

Product Specifications

Product name	Twin tube Medium wave infrared lamp
Power	4800W
Coating	White
Response time	60-90s
Material	Quartz Tube
Type	Medium wave
Place of Origin	Guangdong, China

Infrared Medium Wave Introduction

Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.

The Advantages Of UVIR Heat Lamp

Carbon fiber heat lamp

High-priced imported carbon fiber filament
The finished filament is smooth and does not fluff
The optimum power and maximum longevity

Quartz glass tube

High quality high-temperature quartz glass
Long serving life: over 5000 hours
Nontoxic and no peculiar smell, no risk of contamination over environment or target object to be heated

Technical Parameters

Product name	Twin tube Medium wave infrared lamp
UVIR NO.	TMW100009
Power	4800W
Voltage	380V
Filament temperature	800-950°C
Material	Quartz tube
Coating	White
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available

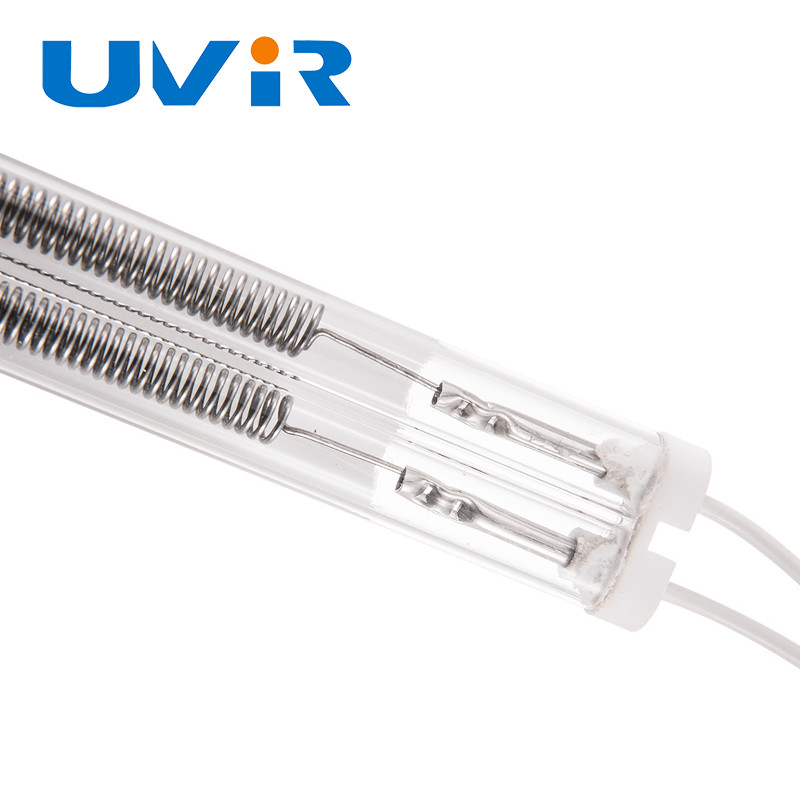

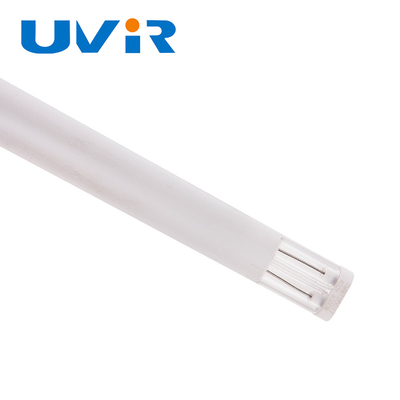

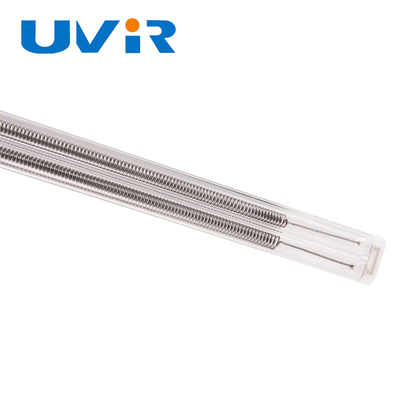

Product Images

High Temperature Heating

High thermal efficiency and long life. Tungsten wire heats and heats the gas in the quartz tube under the AC voltage, resulting in infrared radiation. The red tube has excellent quality, high thermal efficiency, high power density, rapid heating, power saving, and long life.

Stock and Standard (Non-Stock) Twin Tube M-W Lamps

220	1700	15x33	1280	1200	B	TMG100006	TMW100001	TMC100001
230	500	8x18	400	300	B	TMG100007	TMW100002	TMC100002
230	1000	11x23	600	500	B	TMG100008	TMW100003	TMC100003
230	2000	15x33	900	800	B	TMG100009	TMW100004	TMC100004
230	2500	15x33	1100	1000	B	TMG1000010	TMW100005	TMC100005
230	2500	15x33	1300	1200	C	TMG1000011	TMW100006	TMC100006
230	3250	15x33	1420	1300	B	TMG1000012	TMW100007	TMC100007
230	3750	15x33	1600	1500	B	TMG1000013	TMW100008	TMC100008
380	4800	15x34	2135	2035	B	TMG1000014	TMW100009	TMC100009

If the parameter is not suitable for you, please contact us. We have a professional team that will provide expert knowledge and drawings for you!

OEM Service

We can advise the customer in choosing the right heat lamp for specific applications. Furthermore, our Technical Department can design the right lamp based on your specific technical requirements.

We can produce many sizes and types of heat lamps according to customer requirements. If you have drawings, we can make samples for you.

Frequently Asked Questions

1. Are you a factory?

Yes, we are a factory with more than 15 years of experience. Welcome to visit us anytime.

2. How can I get samples?

If you're interested in our products, please contact us directly. We can send free samples for quality checking, but customers need to pay for express fees.

3. How can I place an order?

You can email us or chat with our sales online. After confirming your requirements, we will prepare a Proforma Invoice. Once payment is made, we will process your order.

4. Are the products safe?

Our products are thoroughly tested and certified by internationally recognized regulatory bodies including European CE and RoHS.

5. Do you accept custom designs?

Yes, we offer OEM and ODM services. If you have specific requirements, we can help realize them.
