Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | TMG100015 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Voltage: | 400V | Power: | 4100W |
|---|---|---|---|
| Material: | Quartz Tube | Reponse Time: | 60-90s |
| Filament Temperature: | 800-950°C | OEM/ODM: | Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available |
| Place Of Origin: | Guangdong, China | Total Length: | 1800mm |
| Heating Length: | 1700mm | Dsgn Type: | B |
| Highlight: | Gold Plated Medium Wave Infrared Lamp,4000W Medium Wave Infrared Lamp,infrared drying lamps paint 4000W |
||

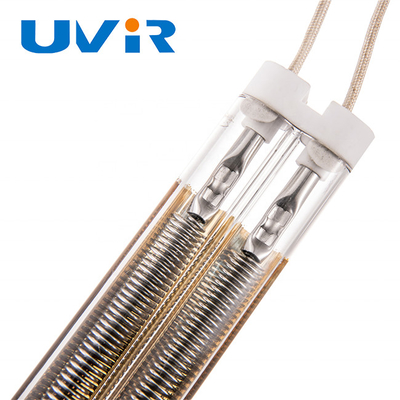

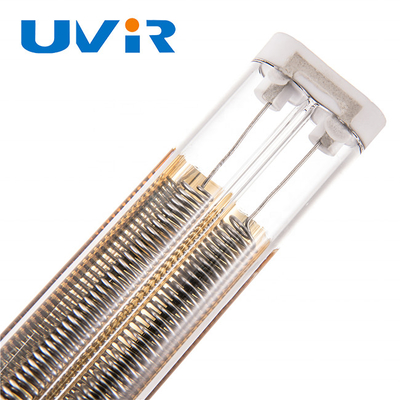

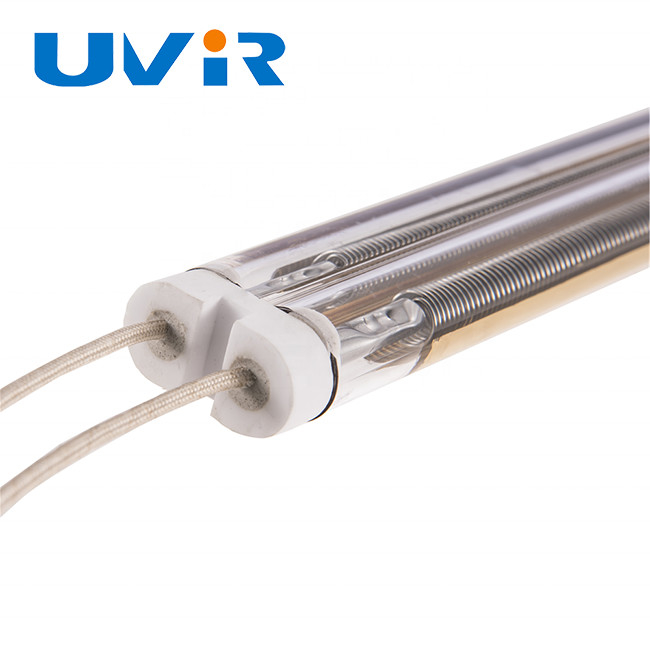

Gold Plated Medium Wave Infrared Lamp For Paint Drying 500W
Our Services & Strength
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
UVIR Infrared lamp Advantage
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
Lead Wire Configurations and Lengths
18 Gauge insulated lead wire rated at 450°C and 600 V. Standard terminals are ring and spade. Lead length variable.
Reflective Layers Availability
Gold, up to 95% IR reflectance. The max.coil operating temperature should be 800%C.
White, a proprietary ceramic formulation that is applied to the exterior surface of the quartz tube with a 75% IR reflectance.
The maximum coil operating temperature should be 1,100*C.
Parameter
| Product name |
Medium wave twin IR Lamp |
| UVIR NO. | TMG100015 |
| Power | 4100W |
| Voltage | 400V |
| Filament temperature | 800-950°C |
| Material | Quartz tube |
| Coating | Gold |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details
High temperature ceramic base:
The infrared heating lamp ceramic is made of high-quality ceramic material, which is resistant to high temperature.
High quality raw material:
Combining high-quality transparent quartz tube materials and halogen principles,effectively increasing the density of infrared radiation. This achieves the user's ideal heating purpose.
You can customize other parameters heating lamp
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
Stock and Standard (Non-Stock) Twin Tube M-W L amps
| 220 | 1700 | 15x33 | 1280 | 1200 | B | TMG100006 | TMW100001 | TMC100001 |
| 230 | 500 | 8x18 | 400 | 300 | B | TMG100007 | TMW100002 | TMC100002 |
| 230 | 1000 | 11x23 | 600 | 500 | B | TMG100008 | TMW100003 | TMC100003 |
| 230 | 2000 | 15x33 | 900 | 800 | B | TMG100009 | TMW100004 | TMC100004 |
| 230 | 2500 | 15x33 | 1100 | 1000 | B | TMG1000010 | TMW100005 | TMC100005 |
| 230 | 2500 | 15x33 | 1300 | 1200 | C | TMG1000011 | TMW100006 | TMC100006 |
| 230 | 3250 | 15x33 | 1420 | 1300 | B | TMG1000012 | TMW100007 | TMC100007 |
| 230 | 3750 | 15x33 | 1600 | 1500 | B | TMG1000013 | TMW100008 | TMC100008 |
| 380 | 4800 | 15x34 | 2135 | 2035 | B | TMG1000014 | TMW100009 | TMC100009 |
| 400 | 4100 | 15x33 | 1800 | 1700 | B | TMG1000015 | TMW100010 | TMC100010 |
| 400 | 4500 | 15x33 | 1920 | 1800 | B | TMG1000016 | TMW100011 | TMC100011 |
| 400 | 5250 | 15x33 | 2200 | 2100 | B | TMG1000017 | TMW100012 | TMC100012 |
| 400 | 5750 | 15x33 | 2400 | 2300 | B | TMG1000018 | TMW100013 | TMC100013 |
| 400 | 6250 | 15x33 | 2600 | 2500 | B | TMG1000019 | TMW100014 | TMC100014 |
| 415 | 1250 | 15x33 | 1100 | 1030 | B | TMG1000020 | TMW100015 | TMC100015 |
Application field
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
1.Are you a factory or trading company?
We are a professional factory.
2.Where is your factory located?How can I visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome all the clients at home and broad to visit us!
3. Can I get some samples?
We are happy to offer samples for you to check and test.
4.Do you have any MOQ limit?
Low MOQ,1pcs for sample checking is available.
5.What about the lead time?
15-25days after receive your payment.
6.How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.
7.About customized service?
We can provide right heat solution for you and offer OEM services, we can print your logo on your product as your requirements.
8.About after-sale service?
Any quality issue, once confirmed, we will compensate our customer.
