Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | TMG100016 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Keyword: | Medium Wave IR Lamp | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Reponse Time: | 60-90s | Lifetime: | 20000h |
| Material: | Quartz | Voltage: | 400V |
| Power: | 4500W | Application: | Surface Curing |
| Total Length: | 1920mm | Heating Length: | 1800mm |
| Highlight: | 4000W Infrared Halogen Heater Lamps,400V Infrared Halogen Heater Lamps,Curing halogen infrared heat lamp |
||

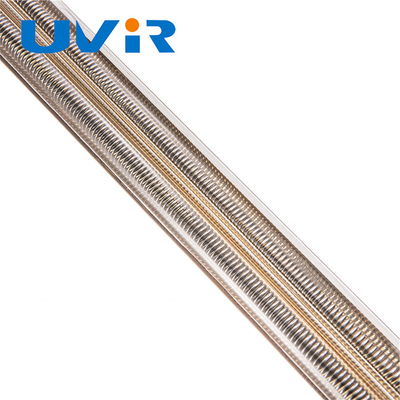

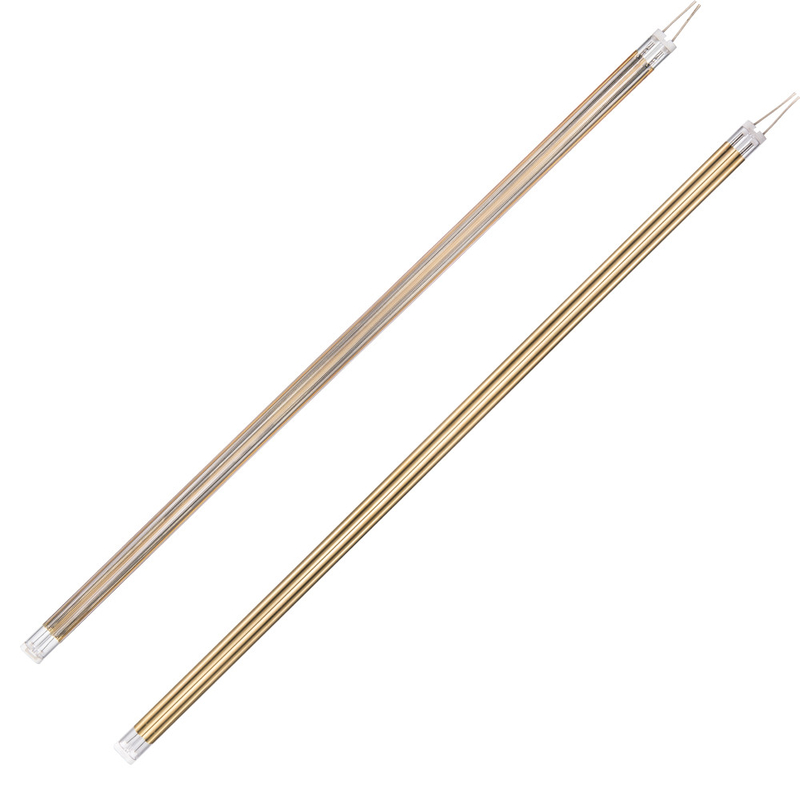

400V 4500W Infrared Halogen Heater Lamps for surface curing
Infrared Medium Wave Introduction
Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.
Infrared Heat Lamp Advantages
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
Parameter
| Product name | Twin tueb Medium wave infrared lamp |
| UVIR NO. | TMG100016 |
| Power | 4500W |
| Voltage | 400V |
| Filament temperature | 800-950°C |
| Material | Quartz tube |
| Coating | Gold |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details

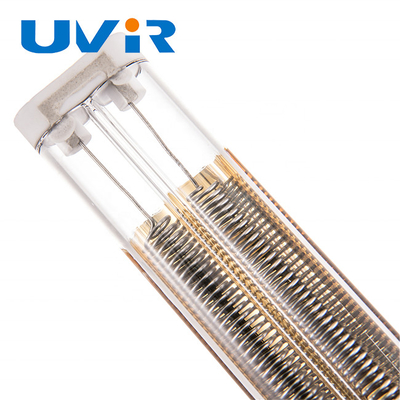

High temperature ceramic base
The infrared heating lamp ceramic is made of high-quality ceramic material, which is resistant to high temperature.
Stock and Standard (Non-Stock) Twin Tube M-W L amps
| 220 | 1700 | 15x33 | 1280 | 1200 | B | TMG100006 | TMW100001 | TMC100001 |
| 230 | 500 | 8x18 | 400 | 300 | B | TMG100007 | TMW100002 | TMC100002 |
| 230 | 1000 | 11x23 | 600 | 500 | B | TMG100008 | TMW100003 | TMC100003 |
| 230 | 2000 | 15x33 | 900 | 800 | B | TMG100009 | TMW100004 | TMC100004 |
| 230 | 2500 | 15x33 | 1100 | 1000 | B | TMG1000010 | TMW100005 | TMC100005 |
| 230 | 2500 | 15x33 | 1300 | 1200 | C | TMG1000011 | TMW100006 | TMC100006 |
| 230 | 3250 | 15x33 | 1420 | 1300 | B | TMG1000012 | TMW100007 | TMC100007 |
| 230 | 3750 | 15x33 | 1600 | 1500 | B | TMG1000013 | TMW100008 | TMC100008 |
| 380 | 4800 | 15x34 | 2135 | 2035 | B | TMG1000014 | TMW100009 | TMC100009 |
| 400 | 4100 | 15x33 | 1800 | 1700 | B | TMG1000015 | TMW100010 | TMC100010 |
| 400 | 4500 | 15x33 | 1920 | 1800 | B | TMG1000016 | TMW100011 | TMC100011 |
| 400 | 5250 | 15x33 | 2200 | 2100 | B | TMG1000017 | TMW100012 | TMC100012 |
| 400 | 5750 | 15x33 | 2400 | 2300 | B | TMG1000018 | TMW100013 | TMC100013 |
| 400 | 6250 | 15x33 | 2600 | 2500 | B | TMG1000019 | TMW100014 | TMC100014 |
| 415 | 1250 | 15x33 | 1100 | 1030 | B | TMG1000020 | TMW100015 | TMC100015 |
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
Application of infrared radiators
The application fields of infrared heating lamps involve food industry, textile industry, plastic industry, printing industry, food industry, pharmaceutical industry, rubber industry, paper industry, wood manufacturing industry, ceramic craft and other industries;
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
1 Are you a truly factory?
Yes, we are a factory has more than 15-year experience. Welcome to visit us any time you want.
2 How can I get the sample from you?
If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.
3 How can I make the order?
You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.
4 Are the products safe enough?
Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including European CE and RoHS.
5 Do you accept customize design?
Yes, we are offering OEM and ODM service as well. If you have any good idea, we can help you realize it.
