Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | TMG100017 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Material: | Quartz Tube | Coating: | Gold |
|---|---|---|---|
| Reponse Time: | 60-90s | Lifetime: | 20000h |
| Place Of Origin: | Guangdong, China | Keyword: | Medium Wave IR Lamp |
| Power: | 5250W | Total Length: | 2200mm |
| Heating Length: | 2100mm | Dsgn: | B |
| Highlight: | Medium Wave Infrared Quartz Tube,Infrared Quartz Tube 2.5KW |
||

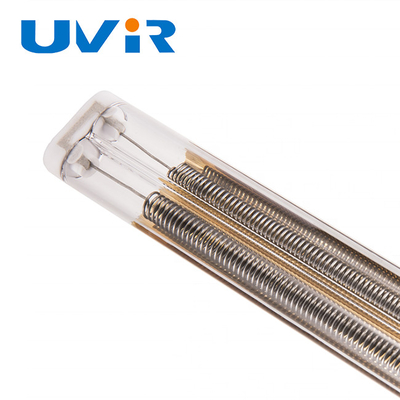

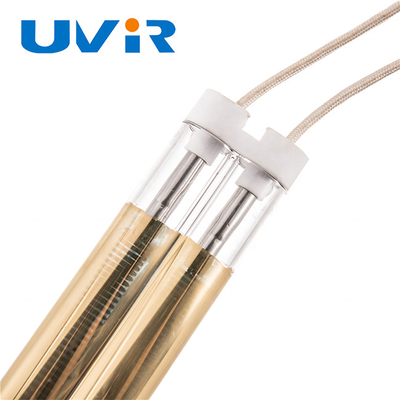

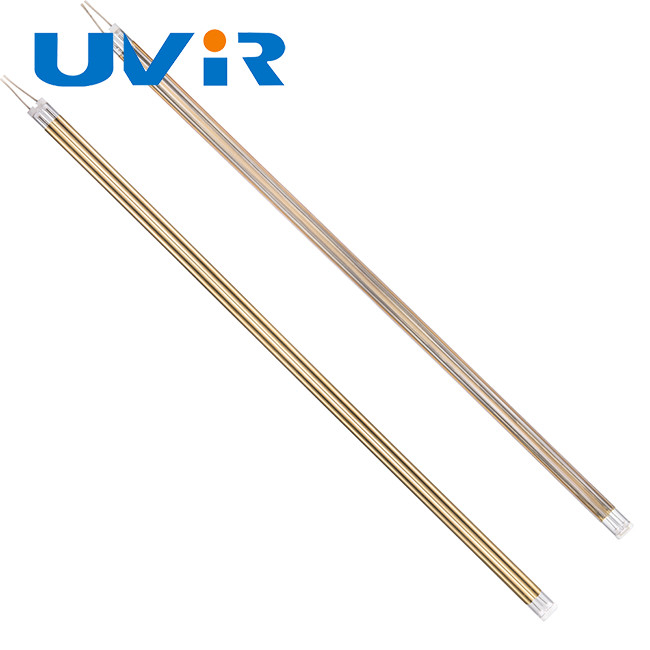

Medium Wave Infrared Lamp Quartz tube halogen solar powered heat lamp 5250W
Infrared Medium Wave Introduction
Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.
The Advantages Of UVIR Heat Lamp
Carbon fiber heat lamp
1.High-priced imported carbon fiber filament.
2.The finished filament is smooth and does not fluff.
3.The optimum power and maximum longevity.
Guartz glass tube
1.High quality high-temperature quartz glass.
2.Long serving life: over 5000 hours.
3.nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Parameter
| Product name | Twin tueb Medium wave IR lamp |
| UVIR NO. | TMG100017 |
| Power | 5250W |
| Voltage | 400V |
| Filament temperature | 800-950°C |
| Material | Quartz tube |
| Coating | Gold |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
High-quality coating(can choose)
The semi-plated white coating using special technology such as quartz powder can reflect more than 90% of the infrared heat in the same direction, reducing energy loss.
Stock and Standard (Non-Stock) Twin Tube M-W L amps
| 220 | 1700 | 15x33 | 1280 | 1200 | B | TMG100006 | TMW100001 | TMC100001 |
| 230 | 500 | 8x18 | 400 | 300 | B | TMG100007 | TMW100002 | TMC100002 |
| 230 | 1000 | 11x23 | 600 | 500 | B | TMG100008 | TMW100003 | TMC100003 |
| 230 | 2000 | 15x33 | 900 | 800 | B | TMG100009 | TMW100004 | TMC100004 |
| 230 | 2500 | 15x33 | 1100 | 1000 | B | TMG1000010 | TMW100005 | TMC100005 |
| 230 | 2500 | 15x33 | 1300 | 1200 | C | TMG1000011 | TMW100006 | TMC100006 |
| 230 | 3250 | 15x33 | 1420 | 1300 | B | TMG1000012 | TMW100007 | TMC100007 |
| 230 | 3750 | 15x33 | 1600 | 1500 | B | TMG1000013 | TMW100008 | TMC100008 |
| 380 | 4800 | 15x34 | 2135 | 2035 | B | TMG1000014 | TMW100009 | TMC100009 |
| 400 | 4100 | 15x33 | 1800 | 1700 | B | TMG1000015 | TMW100010 | TMC100010 |
| 400 | 4500 | 15x33 | 1920 | 1800 | B | TMG1000016 | TMW100011 | TMC100011 |
| 400 | 5250 | 15x33 | 2200 | 2100 | B | TMG1000017 | TMW100012 | TMC100012 |
| 400 | 5750 | 15x33 | 2400 | 2300 | B | TMG1000018 | TMW100013 | TMC100013 |
| 400 | 6250 | 15x33 | 2600 | 2500 | B | TMG1000019 | TMW100014 | TMC100014 |
| 415 | 1250 | 15x33 | 1100 | 1030 | B | TMG1000020 | TMW100015 | TMC100015 |
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
Fields of application of infrared radiators
1.Infrared Heating For Plastics Process
IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles
2.Infrared Heating For Photovoltaic Industry
IR heating for string soldering
IR preheating for sputtering processes
3.Infrared Heating For Printing Industry
IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products ,such as using in banners machine
4.Infrared Heating For Food And Chemical Industry
IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice
5.Infrared Heating For Glass Industry
IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass
6.Infrared Heating For Textiles Industry
IR drying of coatings on textiles
IR heating for laminating of fabrics
7.Infrared Heating For Electronic Industry
Coatings on electronic components
The aging of the electronic components
FAQ
Q1. Can all the products be customized?
A: We are the factory of making IR lamps,UV lamp,IR accessories.All the our products can be made by the details you provide.
Q2. What is the outer package of the product?
A: carton packing or wooden packing.
Q3. Processing cycle?
A: Some of products we have in stock.Usually need about 15days to maked.
Q4. Order quantity?
A: Customized IR Lamps Usually is 2 pieces.
