Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | TMG100007 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Voltage: | 230V | Power: | 500W |
|---|---|---|---|
| Material: | Quartz Tube | Reponse Time: | 60-90s |
| Filament Temperature: | 800-950°C | OEM/ODM: | Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available |
| Place Of Origin: | Guangdong, China | Total Length: | 400mm |
| Heating Length: | 300mm | ||
| Highlight: | Medium Wave Quartz Infrared Heater Lamps,Quartz Infrared Heater Lamps 500W,Gold Reflector quartz heater bulb |
||

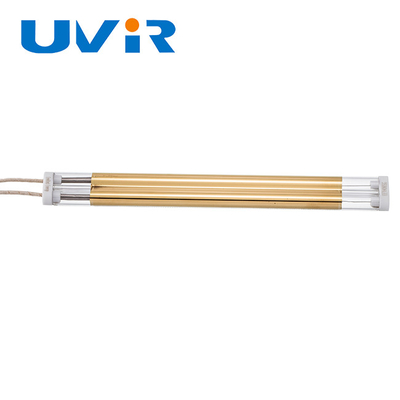

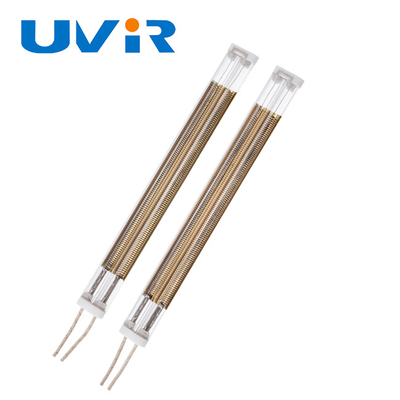

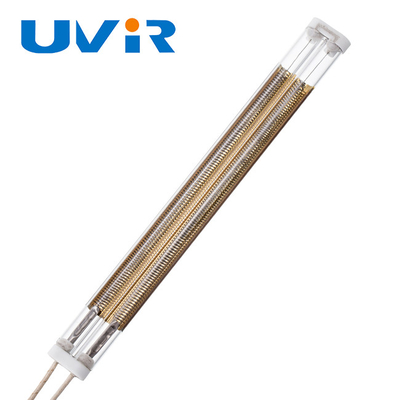

Medium wave infrared quartz heating lamp with gold reflector for plastic welding
Our Services & Strength
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
Infrared Medium Wave Introduction
Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.
Lead Wire Configurations and Lengths
18 Gauge insulated lead wire rated at 450°C and 600 V. Standard terminals are ring and spade. Lead length variable.
Reflective Layers Availability
Gold, up to 95% IR reflectance. The max.coil operating temperature should be 800%C.
White, a proprietary ceramic formulation that is applied to the exterior surface of the quartz tube with a 75% IR reflectance.
The maximum coil operating temperature should be 1,100*C.
Parameter
| Product name | Twin tueb Medium wave infrared lamp |
| UVIR NO. | TMG100007 |
| Power | 500W |
| Voltage | 230V |
| Filament temperature | 800-950°C |
| Material | Quartz tube |
| Coating | Gold |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details
High quality raw material:
Combining high-quality transparent quartz tube materials and halogen principles,effectively increasing the density of infrared radiation. This achieves the user's ideal heating purpose.
Stock and Standard (Non-Stock) Twin Tube M-W L amps
| 220 | 1700 | 15x33 | 1280 | 1200 | B | TMG100006 | TMW100001 | TMC100001 |
| 230 | 500 | 8x18 | 400 | 300 | B | TMG100007 | TMW100002 | TMC100002 |
| 230 | 1000 | 11x23 | 600 | 500 | B | TMG100008 | TMW100003 | TMC100003 |
| 230 | 2000 | 15x33 | 900 | 800 | B | TMG100009 | TMW100004 | TMC100004 |
| 230 | 2500 | 15x33 | 1100 | 1000 | B | TMG1000010 | TMW100005 | TMC100005 |
| 230 | 2500 | 15x33 | 1300 | 1200 | C | TMG1000011 | TMW100006 | TMC100006 |
| 230 | 3250 | 15x33 | 1420 | 1300 | B | TMG1000012 | TMW100007 | TMC100007 |
| 230 | 3750 | 15x33 | 1600 | 1500 | B | TMG1000013 | TMW100008 | TMC100008 |
| 380 | 4800 | 15x34 | 2135 | 2035 | B | TMG1000014 | TMW100009 | TMC100009 |
| 400 | 4100 | 15x33 | 1800 | 1700 | B | TMG1000015 | TMW100010 | TMC100010 |
| 400 | 4500 | 15x33 | 1920 | 1800 | B | TMG1000016 | TMW100011 | TMC100011 |
| 400 | 5250 | 15x33 | 2200 | 2100 | B | TMG1000017 | TMW100012 | TMC100012 |
| 400 | 5750 | 15x33 | 2400 | 2300 | B | TMG1000018 | TMW100013 | TMC100013 |
| 400 | 6250 | 15x33 | 2600 | 2500 | B | TMG1000019 | TMW100014 | TMC100014 |
| 415 | 1250 | 15x33 | 1100 | 1030 | B | TMG1000020 | TMW100015 | TMC100015 |
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
Application
Heater: Space heater, Sauna, Electric hot table, Incubating, Brooders, Farm green house.
- Automotive: Primer/Color/Powder coat, Seat de-wrinkling, Head liner forming
- Plastics: Welding, Forming, Softening, Curing, Drying
- Printing: Ink drying, Silk Screening, Bindings, Glue drying
- Food: Baking, Browning, Dehydrating, Pasteurizing
- Textiles: Web Drying, Finishing, Pre-shrinking
- Glass-Ceramics: Heating safety glass, Drying mirrors, Drying frit.
After Sales Service
1. Package tracking
2. Technical support
3. 24 hours working time
4. Discount for reorder
5. Replacements for quality problems
6. Confidentiality of customer information
FAQ
1 Are you a truly factory?
Yes, we are a factory has more than 15-year experience. Welcome to visit us any time you want.
2 How can I get the sample from you?
If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.
3 How can I make the order?
You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.
4 Are the products safe enough?
Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including European CE and RoHS.
5 Do you accept customize design?
Yes, we are offering OEM and ODM service as well. If you have any good idea, we can help you realize it.
