Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | TMG100012 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Color:: | Gold | Power:: | 3250W |
|---|---|---|---|
| Material:: | Quartz Tube | Reponse Time: | 60-90s |
| Cable Wire:: | High Temperature Resistant Wire | Light Source: | High Quality Quartz Tube |
| Place Of Origin: | Guangdong, China | Voltage: | 230V |
| Total Length: | 1420mm | Heated Length: | 1300mm |
| Type: | B | ||
| Highlight: | Medium Wave Infrared Lamp 90s,230V Medium Wave Infrared Lamp,2kW Medium Wave Infrared Lamp |
||

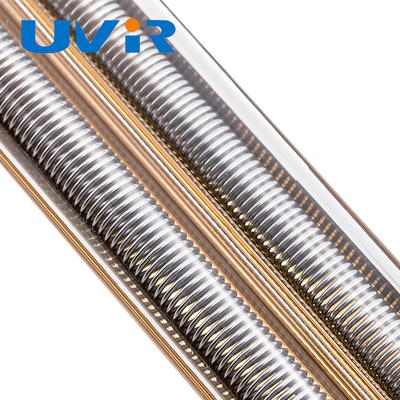

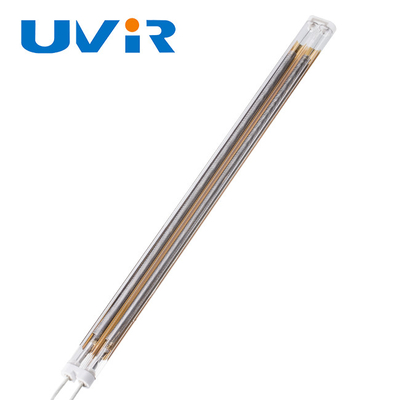

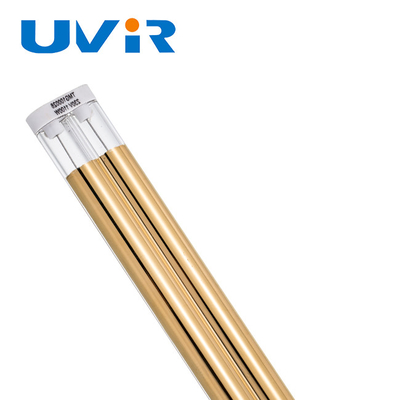

3250W 230V Medium Wave Infrared Lamp 60-90s For Industrial Heating
Infrared Medium Wave Introduction
Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
Parameter
| Product name | Twin tueb Medium wave infrared lamp |
| UVIR NO. | TMG100012 |
| Power | 3250W |
| Voltage | 230V |
| Filament temperature | 800-950°C |
| Material | Quartz tube |
| Coating | Gold |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Product details:
High-quality coating(can choose)
The semi-plated white coating using special technology such as quartz powder can reflect more than 90% of the infrared heat in the same direction, reducing energy loss.
Stock and Standard (Non-Stock) Twin Tube M-W L amps
| 220 | 1700 | 15x33 | 1280 | 1200 | B | TMG100006 | TMW100001 | TMC100001 |
| 230 | 500 | 8x18 | 400 | 300 | B | TMG100007 | TMW100002 | TMC100002 |
| 230 | 1000 | 11x23 | 600 | 500 | B | TMG100008 | TMW100003 | TMC100003 |
| 230 | 2000 | 15x33 | 900 | 800 | B | TMG100009 | TMW100004 | TMC100004 |
| 230 | 2500 | 15x33 | 1100 | 1000 | B | TMG1000010 | TMW100005 | TMC100005 |
| 230 | 2500 | 15x33 | 1300 | 1200 | C | TMG1000011 | TMW100006 | TMC100006 |
| 230 | 3250 | 15x33 | 1420 | 1300 | B | TMG1000012 | TMW100007 | TMC100007 |
| 230 | 3750 | 15x33 | 1600 | 1500 | B | TMG1000013 | TMW100008 | TMC100008 |
| 380 | 4800 | 15x34 | 2135 | 2035 | B | TMG1000014 | TMW100009 | TMC100009 |
| 400 | 4100 | 15x33 | 1800 | 1700 | B | TMG1000015 | TMW100010 | TMC100010 |
| 400 | 4500 | 15x33 | 1920 | 1800 | B | TMG1000016 | TMW100011 | TMC100011 |
| 400 | 5250 | 15x33 | 2200 | 2100 | B | TMG1000017 | TMW100012 | TMC100012 |
| 400 | 5750 | 15x33 | 2400 | 2300 | B | TMG1000018 | TMW100013 | TMC100013 |
| 400 | 6250 | 15x33 | 2600 | 2500 | B | TMG1000019 | TMW100014 | TMC100014 |
| 415 | 1250 | 15x33 | 1100 | 1030 | B | TMG1000020 | TMW100015 | TMC100015 |
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
Quality Service
Our Infrared heater lamps are under standard in CE & ROHS
we have strict quality control to make sure each IR lamp is perfect!
Customized Service
1) All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.
2) We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer.
2. What's the lamp you can do ?
Our main Products is :
Short wave infrared lamp
Medium wave infrared lamp
Customized special shape infrared lamp
All the lamps we can do single and twin tube ,the filament is halogen and carbon filber.
3. If I want to buy a lamp, what parameters need to provide?
Input Voltage
Lamp Wattage
Total Length
Heated Length
Tube Diameter
Reflector
Lead wire
4. What is your company`s payment terms?
We accept: T/T,Western Union,MoneyGram,Paypal,Trade Assurance
5. How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.
6. Where is your factory located?How can i visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome all the clients at home and broad to visit us!
