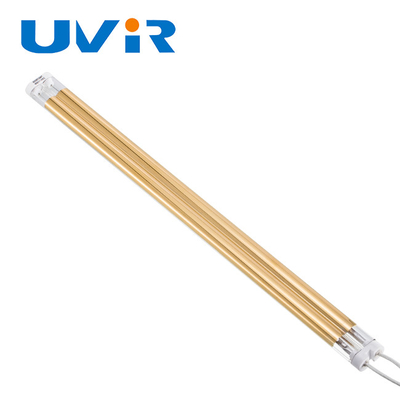

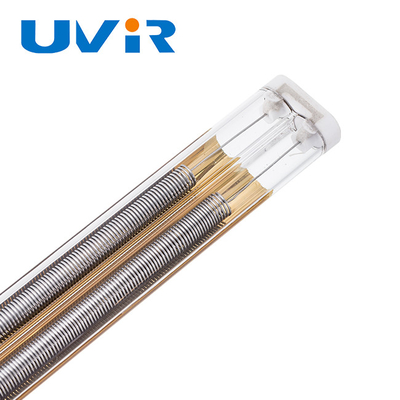

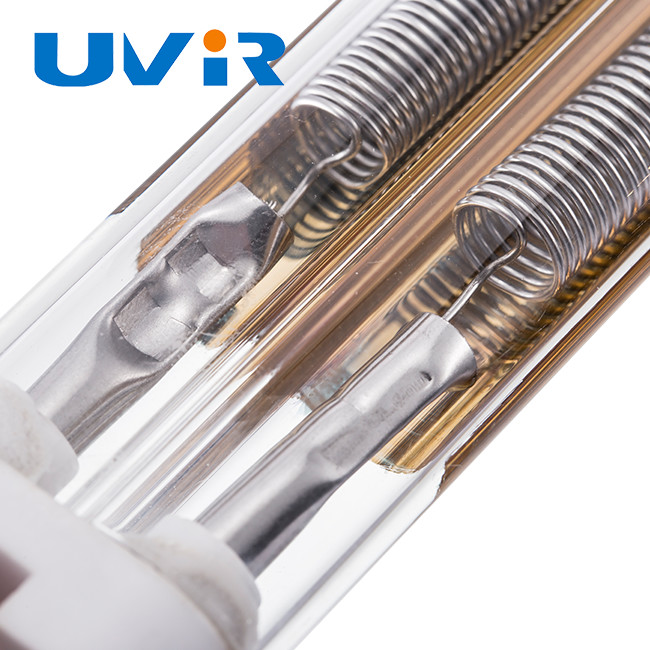

TMG100010 2500W 230V fast response halogen quartz Medium Wave Infrared Lamp
Infrared Medium Wave Introduction
Infrared medium wave radiators are particularly suitable for heating surfaces or thinner materials. Plastics, water and base materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. Heating process suitable for most materials.
Infrared Heat Lamp Advantages
Long serving life: over 5000 hours
Fast Reaction Time: About 1-2s to achieve full power output.
Energy Saving: Gold and Ceramic coating maximize reflect Infrared radiation up to 90%, more energy saving, smaller footprint and better heating results.
Green, safe and Environment Protecting: nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Parameter
| Product name | Twin tueb Medium wave infrared lamp |
| UVIR NO. | TMG100010 |
| Power | 2500W |
| Voltage | 230V |
| Filament temperature | 800-950°C |
| Material | Quartz tube |
| Coating | Gold |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
High temperature ceramic base:
The infrared heating lamp ceramic is made of high-quality ceramic material, which is resistant to high temperature.
Stock and Standard (Non-Stock) Twin Tube M-W L amps
| 220 | 1700 | 15x33 | 1280 | 1200 | B | TMG100006 | TMW100001 | TMC100001 |
| 230 | 500 | 8x18 | 400 | 300 | B | TMG100007 | TMW100002 | TMC100002 |
| 230 | 1000 | 11x23 | 600 | 500 | B | TMG100008 | TMW100003 | TMC100003 |
| 230 | 2000 | 15x33 | 900 | 800 | B | TMG100009 | TMW100004 | TMC100004 |
| 230 | 2500 | 15x33 | 1100 | 1000 | B | TMG1000010 | TMW100005 | TMC100005 |
| 230 | 2500 | 15x33 | 1300 | 1200 | C | TMG1000011 | TMW100006 | TMC100006 |
| 230 | 3250 | 15x33 | 1420 | 1300 | B | TMG1000012 | TMW100007 | TMC100007 |
| 230 | 3750 | 15x33 | 1600 | 1500 | B | TMG1000013 | TMW100008 | TMC100008 |
| 380 | 4800 | 15x34 | 2135 | 2035 | B | TMG1000014 | TMW100009 | TMC100009 |
| 400 | 4100 | 15x33 | 1800 | 1700 | B | TMG1000015 | TMW100010 | TMC100010 |
| 400 | 4500 | 15x33 | 1920 | 1800 | B | TMG1000016 | TMW100011 | TMC100011 |
| 400 | 5250 | 15x33 | 2200 | 2100 | B | TMG1000017 | TMW100012 | TMC100012 |
| 400 | 5750 | 15x33 | 2400 | 2300 | B | TMG1000018 | TMW100013 | TMC100013 |
| 400 | 6250 | 15x33 | 2600 | 2500 | B | TMG1000019 | TMW100014 | TMC100014 |
| 415 | 1250 | 15x33 | 1100 | 1030 | B | TMG1000020 | TMW100015 | TMC100015 |
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
Application of infrared radiators
Automobile manufacturing: Paint drying, Plastic welding, Adhesive curing
Food industry: Fruit and vegetable dehydration, Chocolate melting
Glass industry: Glass screen printing, Bending, Laminating
Plastic industry: PVP heating, Thermoplastic, Rubber drying
Semiconductor industry: Printed circuit soldering, Capacitor plate drying
Textile industry: Drying of textile fibers
Wood industry: Wood drying, Paint ink drying
Our lamps also can used in more industries,such as:The floor,glass,metal,paper,packaging,
powder,coating,rubber,textile,wood,semiconductors and etc...
