Twin Tube Infrared Lamps
Created with Pixso.

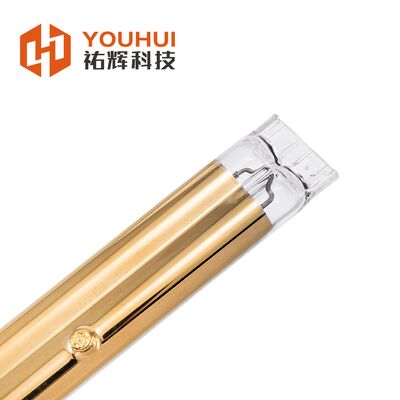

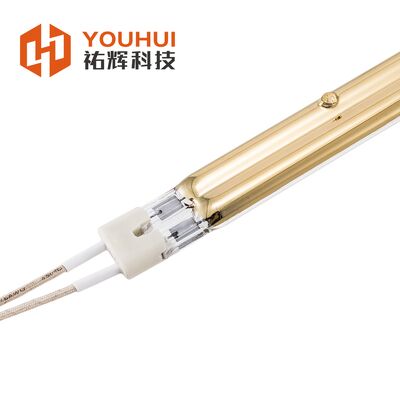

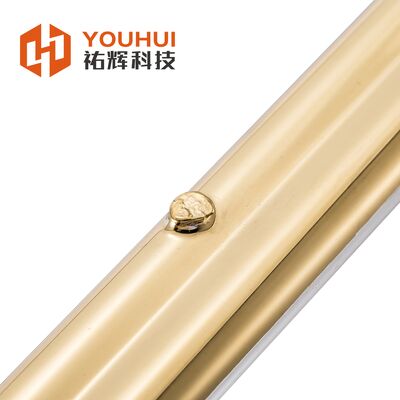

3000W Twin Tube Infrared Lamp with Quartz Glass Tube and Gold Coating for Industrial Heating

Name

3000W Twin Tube Infrared Lamp with Quartz Glass Tube and Gold Coating for Industrial Heating

Brand Name: UVIR
Model Number: TMG100177
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Tube Material:
Quartz Glass
Color:
Gold
Product Name::
Tungsten Halogen Lamp
Respend Time:
1-2s
Power:
3000W
Input Voltage(V)::
400V
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Product Description
Twin Tube Infrared Lamps Tungsten Halogen Lamp With Quartz Glass Tubes
Product Specifications
Tube Material Quartz Glass
Color Gold
Product Name Tungsten Halogen Lamp
Response Time 1-2s
Power 3000W
Input Voltage 400V
Short Wave IR Lamp Advantages
  • Wavelength controlled in 0.76~1.4μm range, selectable based on workpiece material characteristics
  • High thermal efficiency (over 86% IR radiation efficiency) with rapid response (reaches 50% power in 1-2s)
  • Compact design with high power capacity (single tube rated over 6000W)
  • Optional gold-containing directional reflecting layer for improved heating efficiency
  • Premium quartz glass construction ensures long service life (5000+ hours)
  • Compatible with automatic temperature control systems for precise regulation
3000W Twin Tube Infrared Lamp with Quartz Glass Tube and Gold Coating for Industrial Heating 0 3000W Twin Tube Infrared Lamp with Quartz Glass Tube and Gold Coating for Industrial Heating 1 3000W Twin Tube Infrared Lamp with Quartz Glass Tube and Gold Coating for Industrial Heating 2
Standard Product Specifications
3000W Twin Tube Infrared Lamp with Quartz Glass Tube and Gold Coating for Industrial Heating 3
Product Coding Rule Table
3000W Twin Tube Infrared Lamp with Quartz Glass Tube and Gold Coating for Industrial Heating 4
Customized Services
  • Tailored infrared heater lamps designed to your specific requirements
  • Professional one-on-one technical support including sample testing (1pc minimum)
  • OEM services available with custom logo printing
After-sale Service
  • 5,000 hour warranty period for short wave infrared heat lamps
  • Free replacement for non-manufacturing defects during warranty
Installation Precautions
  • Always disconnect power before installation or replacement
  • Never exceed maximum rated voltage (V ≤ 110% of rated voltage)
3000W Twin Tube Infrared Lamp with Quartz Glass Tube and Gold Coating for Industrial Heating 5
For non-standard requirements, please contact our technical team for customized solutions.
