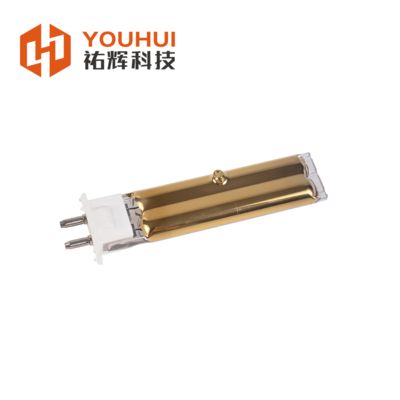

420W 120V Gold Coating Twin Tube Infrared Lamp for HP 4200 4210 Printing Machine Heating

420W 120V Gold Coating Twin Tube Infrared Lamp for HP 4200 4210 Printing Machine Heating

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Color:

Gold

Power:

420W

Material:

Quartz Tube

Reponse Time:

1-2s

Voltage:

120V

Total Length:

50-1600mm

Heating Length:

50-1600mm

Tube Diameter:

11*23

Base:

TC01

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

420W Twin Tube Infrared Lamp

120V Halogen Infrared Heater

Gold Coating Infrared Heating Lamp

Product Description

120V 420W Twin Tube Halogen Infrared Heating Lamp for HP 4200/4210

Professional 120V 420W twin tube halogen infrared heating lamp specifically designed for HP 4200 and 4210 printing machines, featuring rapid heating and high thermal efficiency.

Product Specifications

Attribute	Value
Color	Gold
Power	420W
Material	Quartz Tube
Response Time	1-2 seconds
Voltage	120V
Total Length	50-1600mm
Heating Length	50-1600mm
Tube Diameter	11×23mm
Base	TC01

Short Wave IR Lamp Advantages

Wavelength controlled in 0.76~1.4μm range for optimal material heating
High thermal efficiency with infrared radiation efficiency over 86%
Rapid response: reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact size with single tube power up to 6000W
Optional gold-containing directional reflecting layer for improved efficiency
Premium quartz glass and heating wire materials ensure 5000+ hour lifespan
Compatible with automatic temperature control systems

Technical Details

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11×23mm
Coating	Gold
Power	420W
Voltage	120V
Customization	Available for voltage, wattage, length, base, cables, and burning position

Main Components

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Reflective layer (gold)
Proprietary gas composition

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer.

What types of lamps can you produce?

Our main products include short wave infrared lamps, medium wave infrared lamps, and customized special shape infrared lamps in both single and twin tube configurations with halogen or carbon fiber filaments.

Installation Precautions
