417nm Wave Peak UV Curing Lamp with High Quality Quartz Tube and Ceramic End Caps for Ink Printing

417nm Wave Peak UV Curing Lamp with High Quality Quartz Tube and Ceramic End Caps for Ink Printing

Brand Name:	UVIR
Model Number:	XUV 024020 ACG FS
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Voltage:

380-1570V

Total Length:

175-1425mm

Arc Length:

110-1270mm

Light Source:

High Quality Quartz Tube

Type:

Mercury Lamp

Wave Peak:

417nm

Product Name:

Mercury Uv Curing Lamp

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

417nm Wave Peak UV Curing Lamp

High Quality Quartz Tube Mercury UV Lamp

Ceramic End Caps Gallium UV Lamp

Product Description

UV Curing Lamp Tube for Ink Printing

High-performance gallium lamp UV curing tube designed for industrial ink printing applications with superior curing efficiency.

Product Specifications

Attribute	Value
Voltage	135V
Total Length	360mm
Arc Length	7.7
Light Source	High Quality Quartz Tube
Type	Mercury Lamp
Wave Peak	417nm

UV Curing Applications

Since its introduction in the 1960s, UV curing has become essential across multiple industries including automotive, telecommunications, electronics, graphic arts, metalworking, and plastic decoration. This technology represents a multi-billion dollar market, accounting for approximately 4% of industrial coatings worldwide.

UV Curing Benefits

Enhanced physical properties of inks, coatings, and adhesives
Increased production speed and capacity
Reduced work-in-process inventory
Minimized setup and cleanup labor
Environmentally friendly - energy efficient with no emissions
Improved production yield with reduced waste

Lamp Parameters

Parameter	Value
Power Output	2-10KW
Wavelength	417nm
Arc Length	110-1270mm
Material	High Quality Quartz Tube
End Caps	Ceramic / Metal
Service Life	800 to 1000 hours

Product Advantages

High Temperature Resistant Leads: Precision oxygen-free copper construction ensures high temperature resistance without oxidation.
Premium Quartz Tube: Minimized ultraviolet decay rate with superior oxidation resistance.

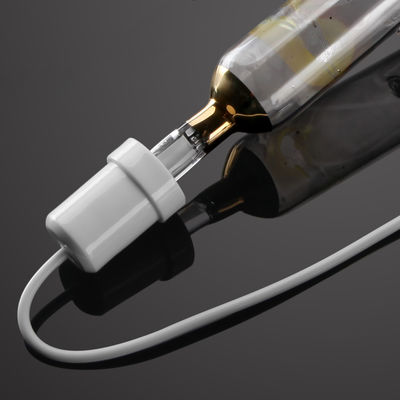

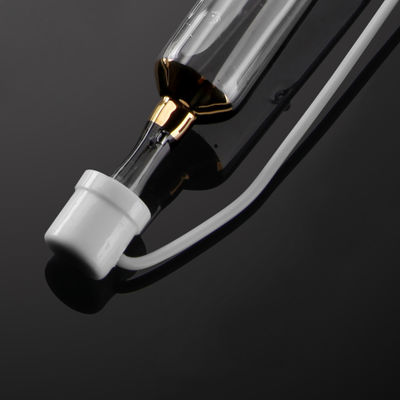

Ceramic End Caps: High temperature resistant ceramic heads prevent melting under extreme conditions.
Pure Tungsten Electrodes: Enhanced ultraviolet spectrum for optimal curing performance.

Technical Specifications

Model No.	Watt (W)	Voltage (V)	Current (A)	Total Length (mm)	Arc Length (mm)	Tube φ (mm)	Base	Wave Peak (nm)
XUV 011020 HCG FS	2	380	5.2	175	110	22.5	HC	417
XUV 014010 ACG FS	1	160	6.2	260	140	22.5	AC	417
XUV 024020 ACG FS	2	135	15	360	240	20	AC	417
XUV 014020 ACG FS	2	160	12.5	260	140	22.5	AC	417
XUV 014020 ACG FS	2	260	7.7	260	140	22.5	AC	417
XUV 014030 ACG FS	3	220	14	260	140	25	AC	417
XUV 029035 ACG FS	3.5	220	22	420	290	15	AC	417
XUV 030036 ACG FS	3.6	220	22	420	300	20	AC	417
XUV 021040 BCG FS	4	450	9	280	210	23	BC	417
XUV 016050 ACG FS	5	380	13	285	160	28	AC	417
XUV 023060 BCG FS	6	500	12	350	230	26	BC	417
XUV 127100 BCG FS	10	1570	7	1425	1270	23	BC	417

For custom specifications, please contact our professional team for technical consultation and drawings.

Frequently Asked Questions

Can I request a sample order?

Yes, we welcome sample orders for quality evaluation. Mixed samples are acceptable.

What is the production lead time?

Samples require 5-7 days, while mass production typically takes about 30 days.

Is there a minimum order quantity?

The standard MOQ is 100 pieces per model.

What shipping methods are available?

Samples ship via DHL, UPS, FedEx or TNT. Bulk orders ship by air or sea freight.

What is the order process?

Submit your requirements
Receive our quotation
Confirm samples and place deposit
Production begins

What is your quality guarantee?

All products undergo strict quality control. During the warranty period, replacements will be included with your next order.
