Twin Tube Halogen Infrared Heating Lamp 200-4000W 55-575V

Twin Tube Halogen Infrared Heating Lamp 200-4000W 55-575V

Brand Name:	UVIR
Model Number:	12100092
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Power(W):

200-4000W

Material:

Halogen Tungsten Filament Quartz

Voltage(V):

55-575V

Base:

TC01

Tube Diameter:

11*23mm

Type:

Twin Tube

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

twin tube halogen heating lamp

infrared heating lamp 200-4000W

halogen infrared lamp 55-575V

Product Description

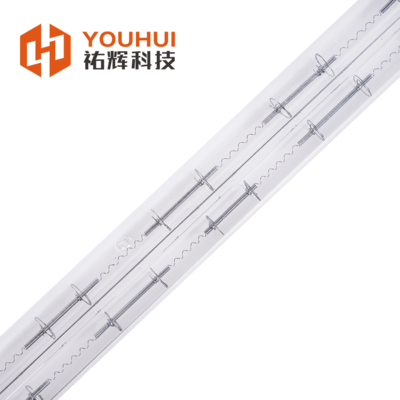

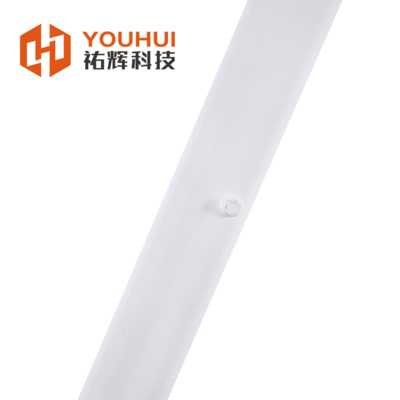

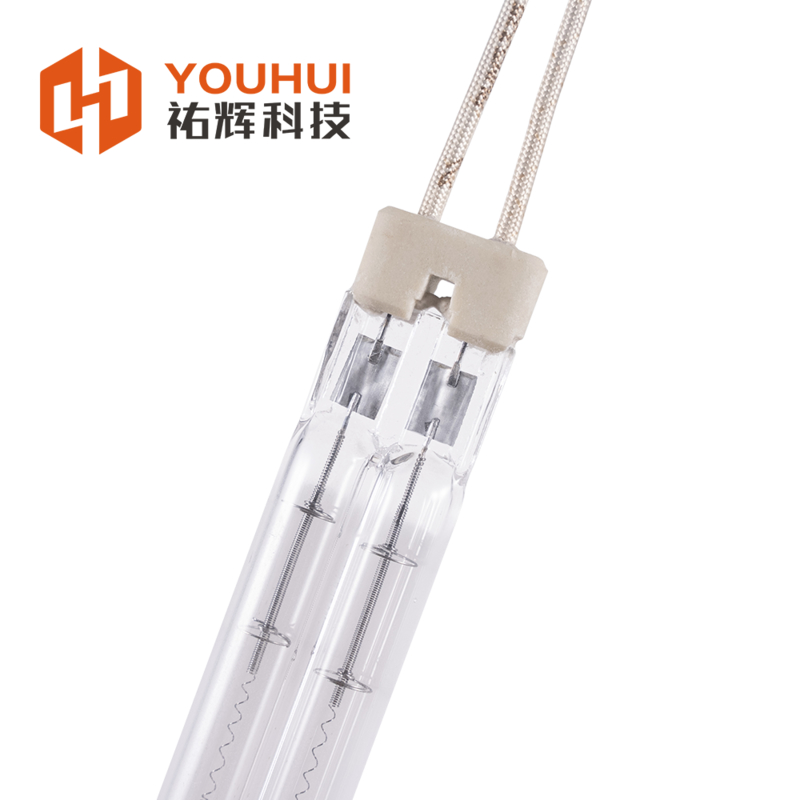

Double Tube White Coated Halogen Jumping Wire Infrared Heating Lamp Tube

Product Specifications

Attribute	Value
Power (W)	200-4000W
Material	Halogen Tungsten Filament Quartz
Voltage (V)	55-575V
Base	TC01
Tube Diameter	11×23mm
Type	Twin Tube

Short Wave IR Lamp Advantages

Precision wavelength control (0.76~1.4μm) allows selection based on workpiece material characteristics
High thermal efficiency (86%+ infrared radiation efficiency) with rapid response (50% power in 1-2 seconds, full power in 2-4 seconds)
Compact design with high power capacity (single tube rated over 6000W)
Optional gold-containing directional reflecting layer for enhanced heating efficiency and reduced reflector temperature
Premium quartz glass and heating wire materials ensure extended service life (5000+ hours for short-wave tubes)
Compatible with automatic temperature control systems for precise thermal management

Product Overview

Our infrared heating technology provides energy savings up to 50% compared to conventional methods, delivering precise heat exactly where needed with optimal wavelength matching for your product.

Type	Twin Tube Infrared Heating Lamp
Size	11×23mm
Coating	White/Gold/Clear
Power	200-400W
Voltage	55-575V
Customization	Available for voltage, wattage, length, base type, cables, and universal burning position

Technical Specifications

Our innovative steel beam-inspired quartz tube design dramatically increases strength, enabling twin tube lengths up to 6 meters (33×14mm cross-section).

Cross-Section (mm)	Maximum Length (m)	Short-Wave	Medium-Wave
8×18	2.1	N	Y
23×11	3.5	Y	Y
33×14	4.0	Y	Y

Note: Heater dimensions depend on the required voltage/wattage relationship.

Product Variations

Stock and Standard (Non-Stock) Twin Tube Short-Wave Lamps

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear
55	400	11×23	115	50	B	THG100151	THW100025	THC100026
115	400	11×23	115	50	B	THG100152	THW100026	THC100027
115	450	11×23	70	25	B	THG100153	THW100027	THC100028
115	450	11×23	72	25	B	THG100154	THW100028	THC100029
115	600	11×23	145	80	B	THG100155	THW100029	THC100030

For custom specifications not listed, please contact our professional team for technical consultation and custom drawings.

Product Coding System

Frequently Asked Questions

How to place an order?

Provide your required lamp specifications (type, diameter, length, power, voltage, reflector), and we'll send a quotation. After payment confirmation, production begins and we'll ship the finished products to you.

Why use a reflector?

Our emitters can be coated with gold or ceramic reflectors to concentrate heat and improve efficiency. For high-watt density applications (above 800°C), we recommend ceramic coating (resistant to 1000°C). Custom coating patterns (including 180° half-tube) are available.

Do you supply mounting clamps?

Yes, we provide complimentary mounting clamps corresponding to the quantity of lamps purchased.

Can you accommodate custom designs?

We specialize in custom solutions. Send us your drawings, sketches, or samples for a quote. We're competitive for both small custom runs and large production orders.

How do you ensure quality?

We maintain strict quality control from material selection to final packaging. Our products are certified with CE, ROHS, and ISO9001 standards.
