products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Twin Tube Infrared Lamps
Created with Pixso.

Twin Tube Halogen Heater Lamp THC100277 200-6000W Clear Coating

Name

Twin Tube Halogen Heater Lamp THC100277 200-6000W Clear Coating

Brand Name: UVIR
Model Number: TZW100001
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Type:
C
Quartz Tube:
11*23mm
Heated Length:
50-1500mm
Total Length:
50-1500mm
Application:
Outdoor, Hotel, Commercial, Household
Power:
200-6000W
Voltage:
55-575V
Base:
TC01
Coating:
Clear
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

twin tube halogen heater lamp

,

infrared heater lamp with clear coating

,

200-6000W twin tube infrared lamp

Product Description
THC100277 Twin Tube Halogen Heater Lamp

Rapid heating overcurrent device with superior performance characteristics.

Product Specifications
Type C
Quartz Tube 11*23mm
Heated Length 50-1500mm
Total Length 50-1500mm
Application Outdoor, Hotel, Commercial, Household
Power 200-6000W
Voltage 55-575V
Base TC01
Coating Clear
Key Advantages
  • Premium materials: Manufactured from imported high-end quartz tube
  • Extended lifespan: 6000-8000 hours for mid/low temperature models
  • High efficiency: Over 85% heat efficiency at full power
  • Energy-saving reflective layer: Gold or non-organic coating maximizes heating efficiency
  • Clean heating: No surface corrosion or material degradation
  • Precise temperature control: Adjustable heating time as needed
  • Environmentally friendly: No contamination risk to surroundings or target objects
  • Compact design: Smaller footprint with superior heating performance
  • Custom solutions: Adjustable wavelength, dimensions, and filaments
Technical Parameters
UVIR No. THC100277
Voltage (V) 55-585V
Wattage (W) 200-6000W
Quartz Tube (mm) 11*23
Total Length (mm) 50-1500
Heated Length (mm) 50-1500
Reflector Clear
Lifetime 5000h

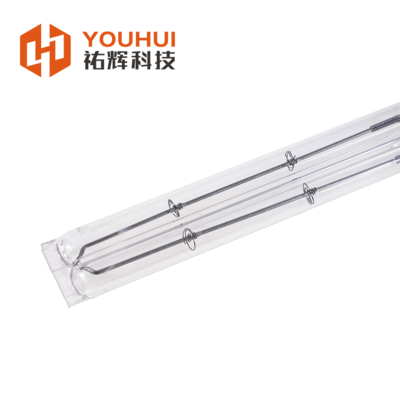

Standard Twin Tube Construction
Twin Tube Halogen Heater Lamp THC100277 200-6000W Clear Coating 0
Product Variations
Twin Tube Halogen Heater Lamp THC100277 200-6000W Clear Coating 1 Twin Tube Halogen Heater Lamp THC100277 200-6000W Clear Coating 2
Stock and Standard Twin Tube Short-Wave Lamps
Voltage (V) Wattage (W) Twin Tube Total Length Heated Length Design Type Gold White Clear
55 400 11x23 115 50 B THG100151 THW100025 THC100026
Custom parameters available. Contact us for specialized solutions.
Product Coding System
Twin Tube Halogen Heater Lamp THC100277 200-6000W Clear Coating 3
Applications
Twin Tube Halogen Heater Lamp THC100277 200-6000W Clear Coating 4
Our Services & Strengths
  • Expert sales teams for accurate communication
  • Professional technical teams for product development
  • Skilled production teams for assembly line manufacturing
  • Dedicated quality inspection teams
  • Experienced after-sales support
After Sales Service
  • Package tracking
  • Technical support
  • 24-hour response time
  • Reorder discounts
  • Quality issue replacements
  • Strict customer confidentiality
Frequently Asked Questions
What is the lead time?

15 days after receiving your payment.

How does your factory handle quality control?

"Quality is priority." Our factory maintains strict quality control from beginning to end, with CE, ISO9001, RoHS, and SGS certifications.

Do you offer customized services?

We provide tailored heat solutions and OEM services, including custom branding as required.

What about after-sale service?

Any confirmed quality issues will be promptly compensated.
