products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Twin Tube Infrared Lamps
Created with Pixso.

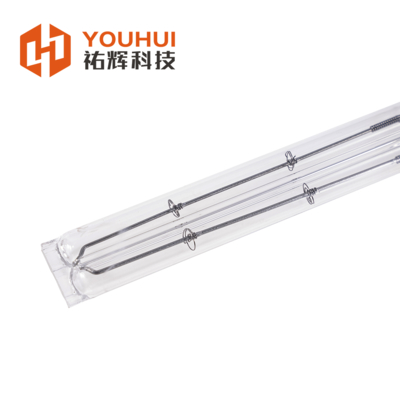

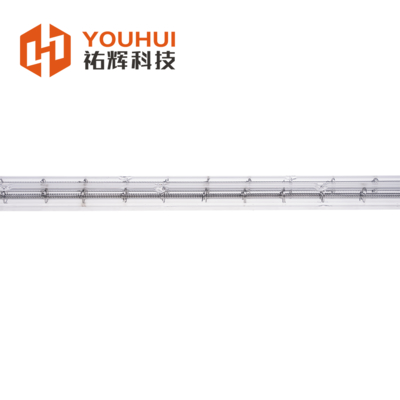

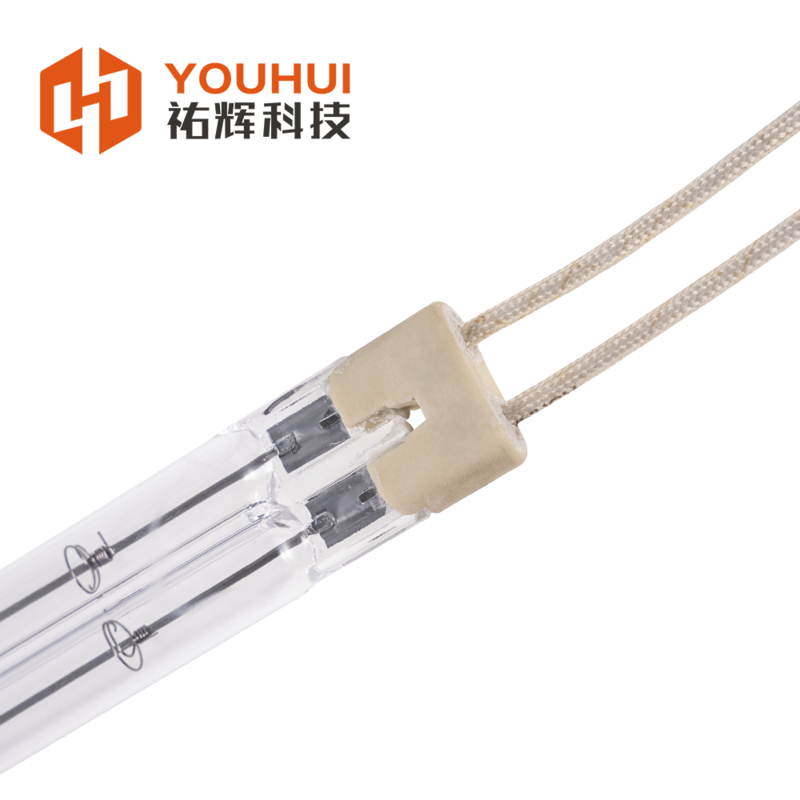

Clear Quartz Twin Tube Infrared Lamp 200-6000W 55-575V TC01 Base

Name

Clear Quartz Twin Tube Infrared Lamp 200-6000W 55-575V TC01 Base

Brand Name: UVIR
Model Number: TZW100001
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Type:
C
Quartz Tube:
11*23mm
Heated Length:
50-1500mm
Total Length:
50-1500mm
Application:
Outdoor, Hotel, Commercial, Household
Power:
200-6000W
Voltage:
55-575V
Base:
TC01
Coating:
Clear
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

Clear quartz twin tube infrared lamp

,

Twin tube infrared lamp 200-6000W

,

Infrared lamp with TC01 base

Product Description
High Power Clear Quartz Twin Tube Infrared Lamps Halogen Infra Lamp
Product Specifications
Attribute Value
Type C
Quartz Tube 11*23mm
Heated Length 50-1500mm
Total Length 50-1500mm
Application Outdoor, Hotel, Commercial, Household
Power 200-6000W
Voltage 55-575V
Base TC01
Coating Clear
Product Features
  • Premium materials: Manufactured from imported high-end quartz tube
  • Extended service life: 6000-8000 hours for mid-temp and low-temp models
  • High efficiency: Over 85% heat efficiency at full power
  • Energy-saving reflective layer: Gold or non-organic coating maximizes heating efficiency
  • Clean heating: No surface corrosion or flaking
  • Precise temperature control: Adjustable heating time as needed
  • Environmentally friendly: No contamination risk to environment or target objects
  • Energy efficient: Lower consumption with superior heating results
  • Custom solutions: Adjustable wavelength, dimensions, and filaments
Technical Parameters
UVIR No. THC100277
Voltage (V) 55-575V
Wattage (W) 200-6000W
Quartz Tube (mm) 11*23
Total Length (mm) 50-1500
Heated Length (mm) 50-1500
Reflector Customized
Lifetime 5000h
Standard Twin Tube Construction
Clear Quartz Twin Tube Infrared Lamp 200-6000W 55-575V TC01 Base 0
Product Variations
Clear Quartz Twin Tube Infrared Lamp 200-6000W 55-575V TC01 Base 1
Stock and Custom Twin Tube Specifications
Voltage (V) Wattage (W) Twin Tube Total Length Heated Length Design Type Gold White Clear
55 400 11x23 115 50 B THG100151 THW100025 THC100026

Contact us for custom solutions. Our professional team can provide technical specifications and drawings.

Product Coding System
Clear Quartz Twin Tube Infrared Lamp 200-6000W 55-575V TC01 Base 2
Applications
Clear Quartz Twin Tube Infrared Lamp 200-6000W 55-575V TC01 Base 3
Our Capabilities
  • Expert sales teams for accurate communication
  • Professional technical teams for product development
  • Skilled production teams for assembly line manufacturing
  • Dedicated quality inspection teams
  • Experienced after-sales support
After-Sales Support
  1. Package tracking
  2. Technical support
  3. 24-hour response time
  4. Reorder discounts
  5. Quality issue replacements
  6. Strict customer confidentiality
Frequently Asked Questions
What is the lead time?

15 days after receiving payment.

How does your factory handle quality control?

Quality is our priority. We maintain strict quality control from start to finish, with CE, ISO9001, RoHS, and SGS certifications.

Do you offer customized services?

Yes, we provide tailored heating solutions and OEM services, including custom branding.

What is your after-sales policy?

We guarantee compensation for any confirmed quality issues.
