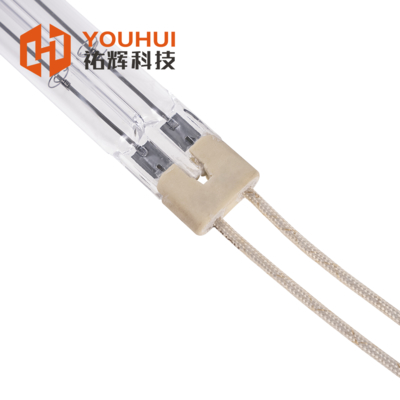

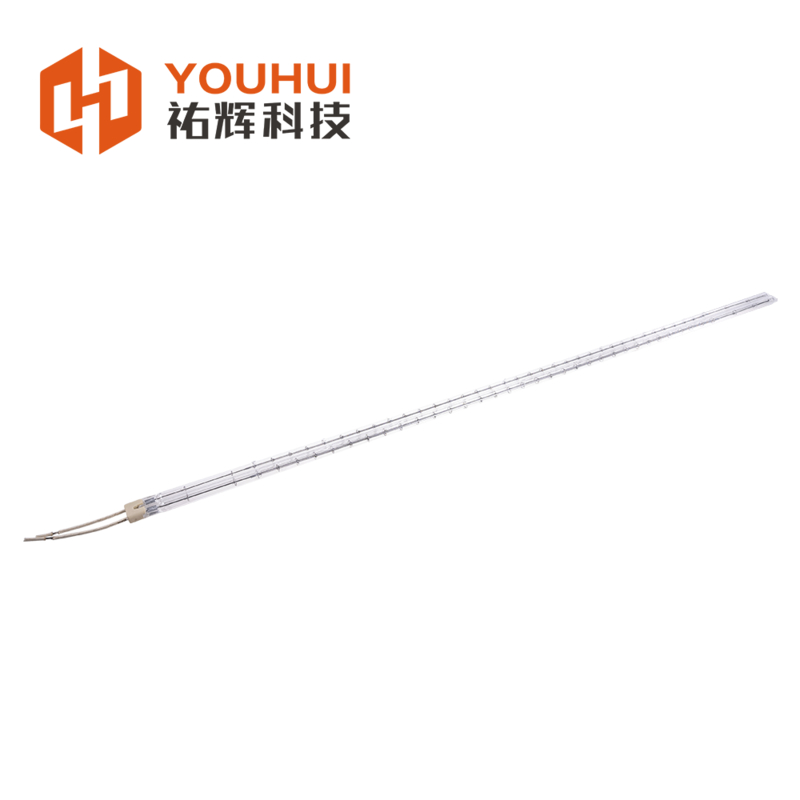

Gold Coated Quartz Twin Tube Infrared Lamp 200-6000W

Gold Coated Quartz Twin Tube Infrared Lamp 200-6000W

Brand Name:	UVIR
Model Number:	THG100180
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Material:

Guartz Tube

Coating:

Gold

Warranty Time:

5000 Hours

Filament:

Tungsten Wire

Power:

55-575V

Voltage:

200-6000W

Total Length:

50-1500mm

Heating Length:

50-1500mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

gold coated quartz infrared lamp

twin tube infrared heating lamp

200-6000W infrared therapy lamp

Product Description

Customized Length High-Quality Quartz Heated Infrared Lamp Tube with Overcurrent Device

Product Specifications

Attribute	Value
Material	Quartz tube
Coating	Gold
Warranty Time	5000 Hours
Filament	Tungsten Wire
Power	55-575V
Voltage	200-6000W
Total length	50-1500mm
Heating length	50-1500mm

Short Wave IR Lamp Advantages

Wavelength control in the range of 0.76~1.4μm, allowing selection based on workpiece material characteristics
High thermal efficiency with infrared radiation efficiency exceeding 86% in specific wavelengths
Rapid response time: reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact size with single tube power exceeding 6000W

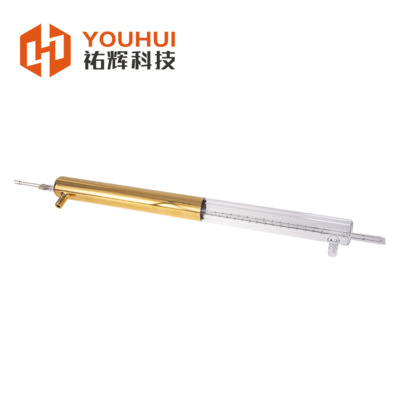

Optional gold-containing directional reflecting layer for improved heating efficiency
Premium quartz glass and tungsten materials ensure service life exceeding 5000 hours
Compatible with automatic temperature control systems for precise regulation

Industrial Applications

Technical Specifications

Standard cross-section dimensions for industrial IR twin tubes in mm. The strength of quartz tubes is enhanced using a steel beam design concept, allowing lengths up to 6m (cross section: 33×14mm).

Twin Tube Cross-Section	Maximum Length (m)	S-W	M-W
8×18	2.1	N	Y
23×11	3.5	Y	Y
33×14	4.0	Y	Y

Heater dimensions depend on required voltage/wattage relationship.

Product Parameters

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11×23mm
Coating	Gold
Power	55-575V
Voltage	200-6000W
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning position available

Stock and Standard Twin Tube Short-Wave Lamps

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear
55	400	11×23	115	50	B	THG100151	THW100025	THC100026

If the parameter is not suitable for you, please contact us. Our professional team can provide technical knowledge and drawings.

Product Coding Rules

OEM Services

We advise customers on selecting the right heat lamp for specific applications. Our Technical Department can design lamps based on your technical specifications.

We produce various sizes and types of heat lamps according to customer requirements. Providing drawings is ideal for sample production.

Frequently Asked Questions

How to place an order?

Provide your required lamp specifications (type, diameter, length, power, voltage, reflector). We'll send a quotation. After payment, production begins and products ship when complete.

Why use a reflector?

Our emitters can be coated with gold or ceramic reflectors to concentrate heat and increase efficiency. For high watt density or temperatures above 800°C, we recommend ceramic coating (resistant to 1000°C). Custom coating degrees available.

Do you supply clamps for lamp installation?

Yes, we provide mounting clamps corresponding to purchased lamps at no additional cost.

Can you accommodate unusual designs?

Send drawings, sketches, or samples for quotation. We specialize in custom designs and small runs while remaining competitive on large orders.

How does your factory handle quality control?

Quality is our priority. We maintain strict QC from material procurement to final packaging. Our products are certified CE, ROHS, and ISO9001 compliant.
