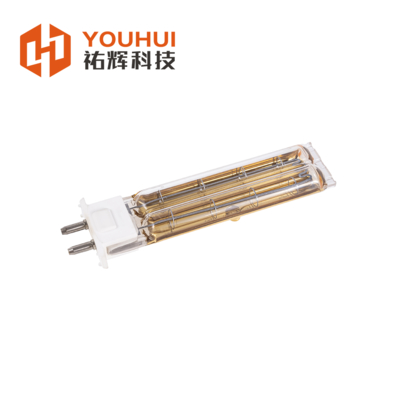

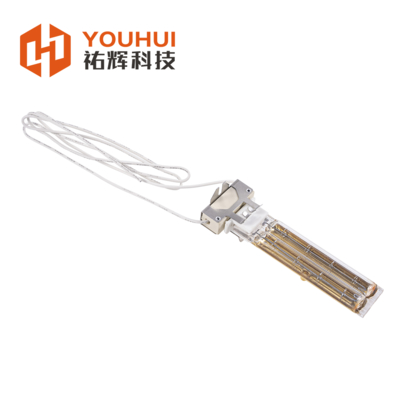

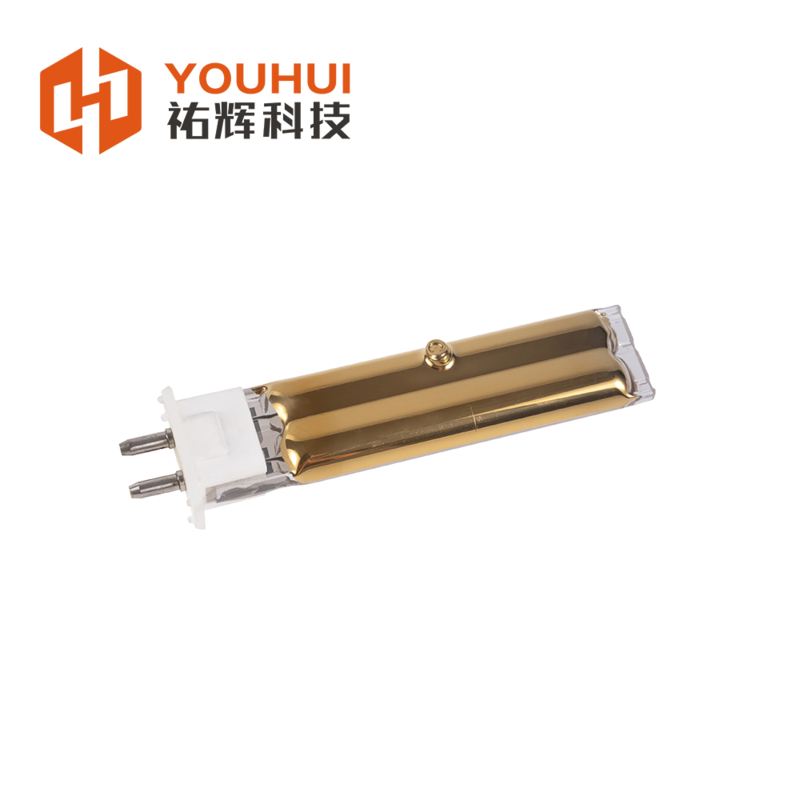

420W 120V Twin Tube Quartz Infrared Lamp Heater for Industrial Drying

• Solar PV industry for preheating, soldering, and heating processes
• PET preform heating in stretch blow moulding machines
• Powder coating curing
• Resins hardening and rubber coating drying
• Adhesives end polymerization
• Food pasteurization and sterilization
• Paper industry humidity control
• Industrial drying of paint, varnishes, and dyeing
• Semi conductor industries for heating of wafers
• Printing ink drying in screen and offset machines
• Plastic welding
• Drying of water-repellent coating on fabric
• Textile embossing and laminating

1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads
6. Reflective layer (gold layer shown)
7. Proprietary gas composition

Our infrared heater lamps meet CE & ROHS standards with strict quality control to ensure each IR lamp meets perfection.

All our infrared heater lamps can be customized to your unique requirements. Our professional technicians provide one-to-one service and can produce single units for quality testing.

We offer OEM services and can print your logo on infrared heating lamps as required.

Warranty period for short wave infrared heat lamps: 5,000 hours.

During warranty, any non-manufacturing quality issues will be replaced immediately at no charge.

Provide your required lamp specifications including type, diameter, length, power, voltage, and reflector. We will send a quotation, and after payment, production will begin. Completed products will be shipped to you.

Our emitters can be coated with gold or ceramic reflectors to concentrate heat and increase effectiveness. Coated emitters convert nearly all electrical power into heat. For high watt density or temperatures above 800°C, we recommend ceramic coating (resistant to 1000°C). We offer 180° (half-tube) coating or custom degrees.

Yes, we provide mounting clamps for installation, included free with lamp purchases.

Send us drawings, sketches, or samples for quotation. We specialize in custom designs and small runs while remaining competitive on large orders.
