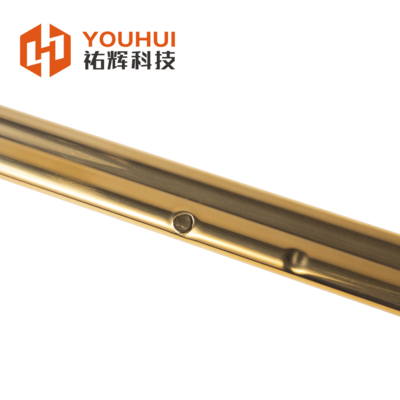

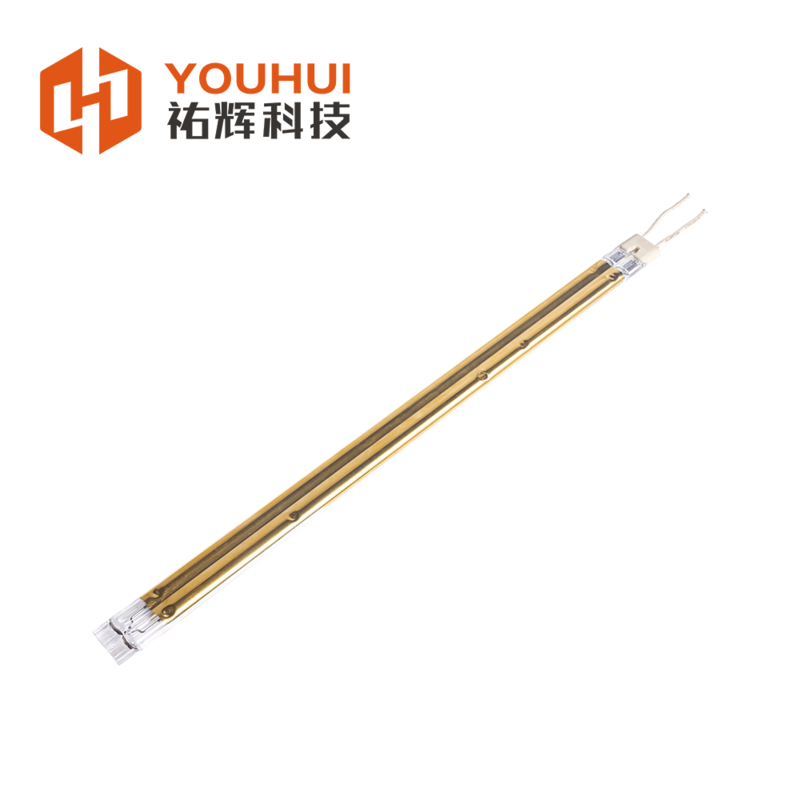

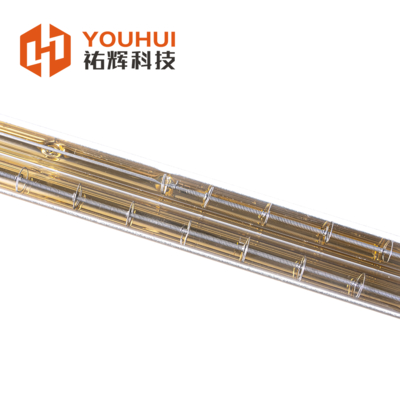

Gold Coated Twin Tube Tungsten Infrared Lamp 1000W 220V

Gold Coated Twin Tube Tungsten Infrared Lamp 1000W 220V

Brand Name:	UVIR
Model Number:	THG100312
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Material::

Quartz Glass

Material Type::

Tungsten&Glass

Heating Length:

50-1500mm

Total Length:

50-1500mm

Coating:

GOLD

Voltage:

220V

Power:

1000W

Place Of Origin:

Guangdong, China

Base:

TC01

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

gold coated tungsten infrared lamp

twin tube infrared lamp for 3D printing

3D printing infrared heating lamp

Product Description

Gold Coated Twin Tube Tungsten Infrared Lamp for 3D Printing

Product Specifications

Tube Material	Quartz Glass
Material Type	Tungsten & Glass
Heating Length	50-1500mm
Total Length	50-1500mm
Coating	Gold
Voltage	220V
Power	1000W
Place of Origin	Guangdong, China
Base	TC01

Product Description

Main Components

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Reflective layer (Gold coating)
Proprietary gas composition

Technical Notes

IR lamp as emitter. The emissivity values of the tungsten are greater in the near and short-wave infrared regions. The heating efficiency can be increased by employing reflectors. Exterior surface options include gold and white layers. For optimal performance, we recommend parabolic/elliptic shapes for single and twin lamps with gold coated layer.

The lifespan of an IR lamp depends on its coil's operating temperature. A 10% voltage variation results in a 30% lifespan change. Optimal operating temperatures:

Pinch-seal area: max 350°C
Quartz tube: 250°C to 900°C

Product Information

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	White/Gold/Clear
Power	1000W
Voltage	220V
OEM/ODM	Custom voltage, wattage, length, base, cables available with universal burning position

Product Coding Rule

After-sale Service

Warranty: 5,000 hours for short wave infrared heat lamp.

During warranty period, we provide free replacement for any confirmed non-man-made quality issues.

Frequently Asked Questions

How to place the order?

Provide your required lamp specifications (type, diameter, length, power, voltage, reflector). We'll send a quotation. After payment confirmation, production begins and products ship upon completion.

Why use a reflector?

Our emitters can be gold or ceramic coated to concentrate heat and increase efficiency. Gold coating is economical, converting nearly all electrical power to heat. For high watt density or temperatures above 800°C, we recommend ceramic coating (resistant to 1000°C). Custom coating degrees available.

Do you supply clamps for lamp installation?

Yes, we provide mounting clamps free with purchased lamps.

Can you accommodate unusual designs?

Yes. Send drawings, sketches, or samples for quotation. We specialize in custom designs and small runs, while remaining competitive for large orders.
