3.5KW 417nm UV Curing Lamp with Ceramic Base for Printing and Light Curing Applications

3.5KW 417nm UV Curing Lamp with Ceramic Base for Printing and Light Curing Applications

Brand Name:	UVIR
Model Number:	XUV 01 6050 ACG FS
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Total Length:

420mm

Arc Length:

290

Type:

Mercury Lamp

Wave Peak:

417nm

Place Of Origin:

Guangdong, China

Head Base:

Ceramic

Voltage:

220V

Application:

Light Curing, UV Printing,UV Drying

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

3.5KW UV metal halide lamp

UV curing lamp for printing

high-power UV curing system

Product Description

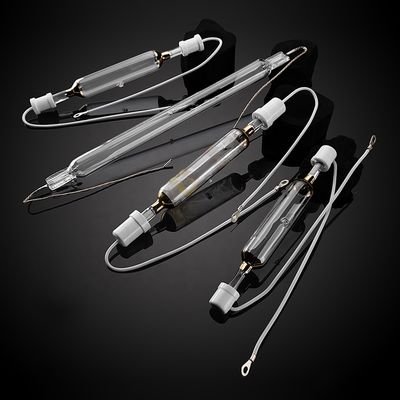

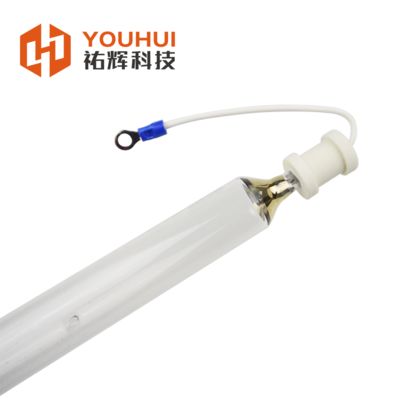

3.5KW UV Metal Halide Curing Lamp for Printing Machines

UV curing lamp, metal halogen curing lamp, exposure lamp for printing machine

Iodine Gallium Lamp Introduction

Iodine gallium lamp, also known as plate burning lamp or exposure lamp, is a type of metal halide lamp available in fast and slow starting variants. It produces strong emission lines within the 350nm-450nm wavelength range, with peak output at 417nm. This lamp is widely used in PS plate burning, film processing, resin plate exposure, lithography, and other photochemical applications.

Product Features

Available in multiple specifications with power ranging from 0.5KW to 8KW
Accurate spectral peak values and fast startup capabilities
Certified by relevant regulatory authorities
Short plate burning time with high efficiency
Enhanced plate making and photographic quality protection

Lamp Parameters

Parameter	Specification
Power Output	3.5KW
Wavelength	417nm
Arc Length	290mm
Material	High Quality Quartz Tube
End Caps	Ceramic / Metal
Service Life	800 to 1000 hours

Professional Curing Solutions

Our professional team provides customized UVA-UVB-UVC-UVV spectrum solutions. We offer comprehensive technical support and design services for painting, coating, adhesive, ink, paint coating UV curing applications, as well as air purification, water treatment, and UV photochemical reactions.

Additional Product Models

Model No.	Watt (W)	Voltage (V)	Current (A)	Total Length (mm)	Arc Length (mm)	Tube φ (mm)	Base	Wave Peak (nm)
XUV 011020 HCG FS	2	380	5.2	175	110	22.5	HC	417
XUV 014010 ACG FS	1	160	6.2	260	140	22.5	AC	417
XUV 024020 ACG FS	2	135	15	360	240	20	AC	417
XUV 014020 ACG FS	2	160	12.5	260	140	22.5	AC	417
XUV 014020 ACG FS	2	260	7.7	260	140	22.5	AC	417
XUV 014030 ACG FS	3	220	14	260	140	25	AC	417
XUV 029035 ACG FS	3.5	220	22	420	290	15	AC	417
XUV 030036 ACG FS	3.6	220	22	420	300	20	AC	417
XUV 021040 BCG FS	4	450	9	280	210	23	BC	417
XUV 016050 ACG FS	5	380	13	285	160	28	AC	417
XUV 023060 BCG FS	6	500	12	350	230	26	BC	417
XUV 127100 BCG FS	10	1570	7	1425	1270	23	BC	417

If these parameters don't meet your requirements, please contact us. Our professional team will provide expert knowledge and custom drawings for your specific application.

Application Areas

UV ink, UV adhesive, UV painting, UV coating applications. Additional industries include paper glazing, printed circuit boards, decoration, wooden flooring, flexible packaging, color printing, electronics, glass manufacturing, furniture production, and related industrial processes.

After Sales Service

Package tracking
One year guarantee
Technical support
Discount for reorder
Replacements for quality problems
Confidentiality of customer information
