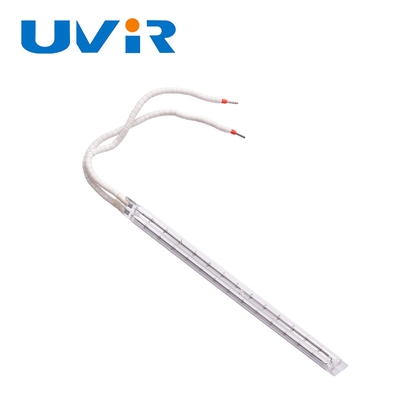

200-6000W White Coating Twin Tube Infrared Lamps for Industrial Heating

200-6000W White Coating Twin Tube Infrared Lamps for Industrial Heating

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Quartz Tube:

11x23 Mm

Watt:

200-6000W

Material:

Glass

Place Of Origin:

China

Voltage:

55-575V

Reflector:

White

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

6000w Twin Tube Infrared Lamps

Industrial Heating Twin Tube Infrared Lamps

White Coating Twin Tube Infrared Lamps

Product Description

200-6000W White Coating Twin Tube Infrared Lamps for Industrial Heating

Product Specifications

Quartz Tube	11x23 mm
Wattage	200-6000W
Material	Glass
Place of Origin	China
Voltage	55-575V
Reflector	White

Product Description

4000W Twin Tube Mini IR Heating Heater Quartz Infrared Lamp with White Coating

Advantages of Infrared Radiators

Infrared radiators offer superior performance compared to traditional hot air, ceramic, gas, and metal radiators. Key benefits include:

Direct heating without contact or intermediate conversion medium
Rapid energy release for precise heating control
Energy savings up to 50% compared to conventional methods

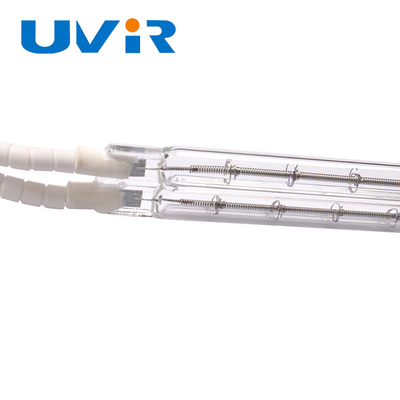

Twin Tube Short-Wave IR Lamps Construction

Main components of our twin tube infrared lamps:

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Reflective layer (gold or white coating available)
Proprietary gas composition

Technical Specifications

The quartz tube strength has been significantly enhanced using a steel beam-inspired design concept, allowing twin tube lengths up to 6 meters (cross section: 33 × 14 mm).

Cross-Section (mm)	Maximum Length (m)	Short-Wave	Medium-Wave
8×18	2.1	N	Y
23×11	3.5	Y	Y
33×14	4.0	Y	Y

Heater dimensions depend on the required voltage/wattage relationship.

Product Models

Voltage (V)	Wattage (W)	Twin Tube	Total Length (mm)	Heated Length (mm)	Design Type	Gold	White	Clear
55	400	11×23	115	50	B	THG100151	THW100025	THC100026
115	400	11×23	115	50	B	THG100152	THW100026	THC100027
115	450	11×23	70	25	B	THG100153	THW100027	THC100028
115	600	11×23	145	80	B	THG100155	THW100029	THC100030
230	3000	11×23	650	500	C	THG100165	THW100039	THC100040
480	6000	15×33	1550	1000	B	THG100140	THW100065	THC100065
