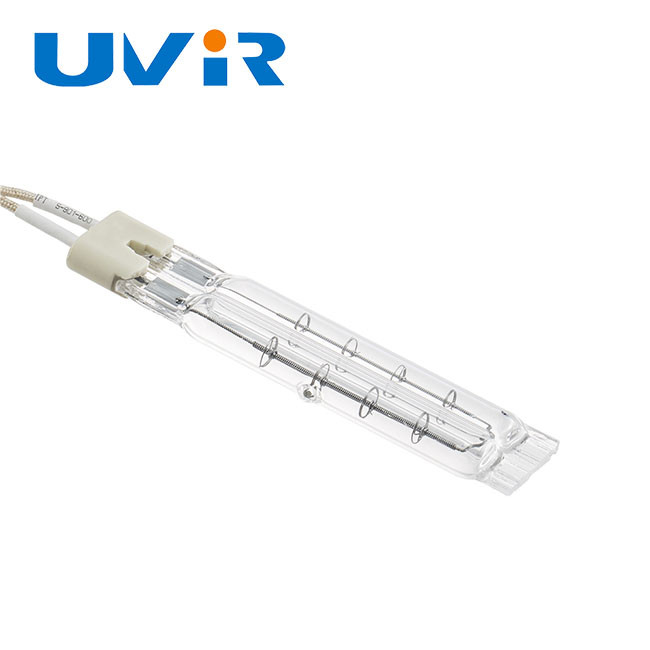

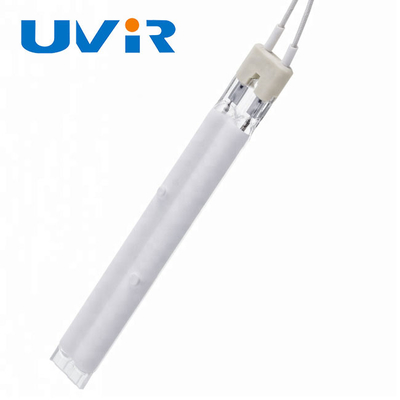

1500W Twin Tube Infrared Heater 220V Nichrome White Coating

1500W Twin Tube Infrared Heater 220V Nichrome White Coating

Brand Name:	UVIR
Model Number:	THW100118
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Type:

Material:

Nichrome

Power:

1500W

Coating:

White

Voltage:

220V

Total Length:

255mm

Heating Length:

190mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1500W Short Wave Infrared Heater

220V Short Wave Infrared Heater

Nichrome Twin Tube Infrared Heater

Product Description

High Efficiency Twin Tube Short Wave Infrared Heater

Product Specifications

Attribute	Value
Type	B
Material	Nichrome
Power	1500W
Coating	White
Voltage	220V
Total length	255mm
Heating length	190mm

Key Features

Energy saving: Infrared radiation transfers heat directly to objects without medium
Time saving: Quick response time reduces process times and increases production rates
Space saving: Compact design with small footprint
Labor saving: Easy installation with no maintenance required
Cost effective: Energy efficient operation reduces operational costs
Quality improvement: Controllable, predictable heating reduces wastage
Environmentally friendly: Clean operation with no pollution

Standard Twin Tube Construction

Technical Specifications

The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm).

Cross-Section	Maximum Length (m)	S-W	M-W
8x18	2.1	N	Y
23x11	3.5	Y	Y
33x14	4.0	Y	Y

Heater dimensions depend on the required voltage/wattage relationship.

Product Details

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	White
Power	220V
Voltage	1500W
OEM/ODM	Custom voltage, wattage, length, base, cables available

OEM Services

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design custom lamps based on specific technical requirements.

We can produce many sizes and types of heat lamps according to customer requirements. Providing drawings is preferred for accurate sample production.

Frequently Asked Questions

1. What is the payment term?

Prepayment 100% advance via wire transfer, Paypal, Western Union

2. Could you provide sample for performance testing and appearance checking?

Yes, we can provide samples based on your required specifications.

3. What information should I provide when enquiring?

Please provide lamp type, total length, heating length, wattage, voltage, ceramic end connection, lead length, and coating preference. For new projects, please describe your application including object material, required working temperature, heating time, and heating size.

NOTE: Customized lamps available on request.
