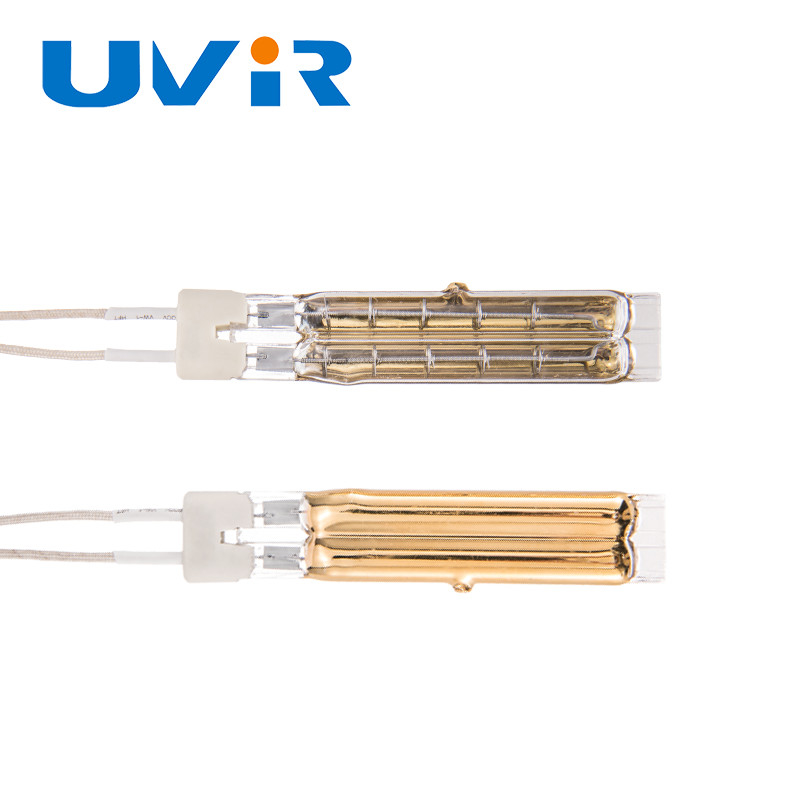

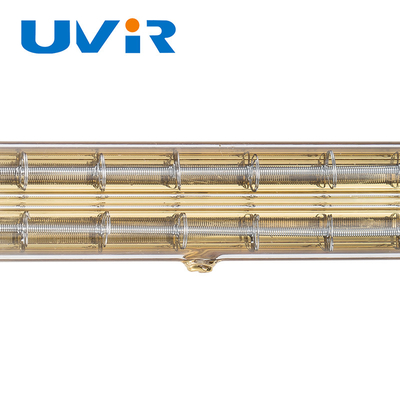

1500W Twin Tube Quartz Halogen Lamp for Edge Banding Machines

1500W Twin Tube Quartz Halogen Lamp for Edge Banding Machines

Brand Name:	UVIR
Model Number:	THG100895
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Material:

Guartz Tube

Coating:

Gold

Warranty Time:

5000 Hours

Filament:

Tungsten Wire

Power:

230V

Voltage:

1500W

Total Length:

320mm

Heating Length:

255mm

Type:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Twin Tube Quartz Halogen Lamp

1500w Quartz Halogen Lamp

Edge Banding Machine Heating Emitters

Product Description

1500W Twin Tube Quartz Halogen Lamp for Edge Banding Machine Heating

Product Specifications

Material	Quartz tube
Coating	Gold
Warranty Time	5000 Hours
Filament	Tungsten Wire
Power	230V
Voltage	1500W
Total length	320mm
Heating length	255mm
Type	B

Short Wave IR Lamp Advantages

Wavelength controlled in 0.76~1.4μm range for optimal heating based on workpiece material characteristics
High thermal efficiency with 86%+ infrared radiation efficiency in specific wavelengths
Rapid response time: reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact design with single tube power exceeding 6000W
Optional gold-containing directional reflecting layer for improved efficiency
Premium quartz glass and tungsten materials ensure 5000+ hour service life
Compatible with automatic temperature control systems for precise regulation

Industrial Applications

Technical Specifications

Standard Cross-Section Dimensions

Our innovative steel beam-inspired design allows twin tube lengths up to 6m (33×14mm cross section) with enhanced strength.

Twin Tube Cross-Section	Maximum Length (m)	Short Wave	Medium Wave
8x18mm	2.1	N	Y
23x11mm	3.5	Y	Y
33x14mm	4.0	Y	Y

Product Parameters

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11×23mm
Coating	Gold
Power	230V
Voltage	1500W
OEM/ODM	Custom voltage, wattage, length, base, cables available

Product Coding Rules

OEM Services

Our technical team can design custom heat lamps based on your specific requirements. We accommodate various sizes, types, and configurations, with sample production available for approved designs.

Frequently Asked Questions

How to place an order?

Provide your lamp specifications (type, dimensions, power, voltage, reflector requirements), and we'll send a quotation. Production begins after payment confirmation.

Why use a reflector?

Gold or ceramic reflectors concentrate heat output, improving efficiency. For temperatures above 800°C, we recommend ceramic coating (resistant to 1000°C). Custom coating angles available.

Do you supply mounting clamps?

Yes, we provide complimentary mounting clamps with lamp purchases.

Can you produce custom designs?

We specialize in custom solutions. Submit drawings, sketches, or samples for quotation. We accommodate both small runs and large production orders.

What quality certifications do you have?

Our products meet CE, ROHS, and ISO9001 standards with strict quality control from material selection to final packaging.
