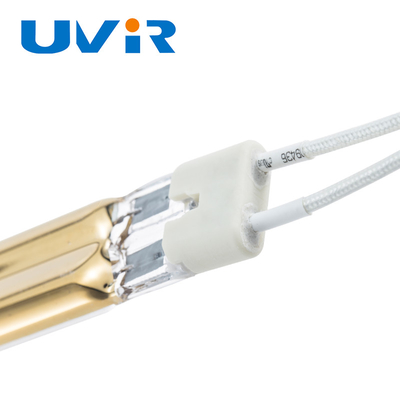

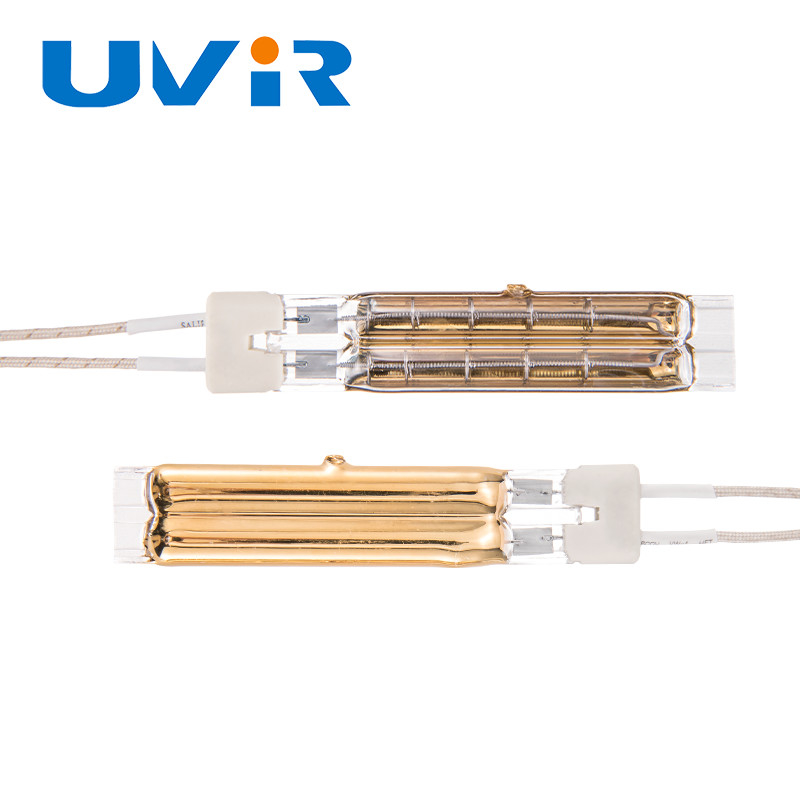

Gold Twin Tube Shortwave IR Lamp 2400W 380V Quartz Heating

Gold Twin Tube Shortwave IR Lamp 2400W 380V Quartz Heating

Brand Name:	UVIR
Model Number:	THG1000864
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Color:

Gold

Power:

2400V

Material:

Quartz Tube

Reponse Time:

1-2s

Voltage:

380V

Total Length:

470mm

Heating Length:

400mm

Tube Diameter:

11*23

Base:

TC01

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

11x23 Twin Tube Lamp

Preheating Baking Twin Tube Lamp

Shortwave Twin Tube Infrared Lamps

Product Description

Preheating Baking Edge Banding Machine Twin Tube Lamp Shortwave Fast Heating Gold

Product Specifications

Attribute	Value
Color	Gold
Power	2400V
Material	Quartz Tube
Response time	1-2s
Voltage	380V
Total length	470mm
Heating length	400mm
Tube diameter	11*23
Base	TC01

Short Wave IR Lamp Advantages

Wavelength controlled in the range of 0.76~1.4μm, allowing selection based on workpiece material characteristics
High thermal efficiency with infrared radiation efficiency over 86% in specific wavelengths
Rapid response time: reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact size with high power capacity (single tube can exceed 6000W)
Optional gold-containing directional reflecting layer for improved heating efficiency
Premium quartz glass and heating wire materials ensure long service life (5000+ hours)
Compatible with automatic temperature control systems for precise regulation

Product Details

This twin tube short wave halogen infrared heating lamp provides energy savings up to 50% compared to conventional technologies, delivering precise heating with optimal wavelength selection.

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	Gold
Power	2400W
Voltage	380V
Customization	Available for voltage, wattage, length, base, cables, and universal burning position

Main Components

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Gold reflective layer
Proprietary gas composition

Technical Specifications

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear
55	400	11x23	115	50	B	THG100151	THW100025	THC100026
115	400	11x23	115	50	B	THG100152	THW100026	THC100027
115	450	11x23	70	25	B	THG100153	THW100027	THC100028
115	450	11x23	72	25	B	THG100154	THW100028	THC100029
115	600	11x23	145	80	B	THG100155	THW100029	THC100030

Custom specifications available - please contact us for requirements not listed above.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer.

What types of lamps do you produce?

Our main products include short wave infrared lamps, medium wave infrared lamps, and customized special shape infrared lamps in both single and twin tube configurations with halogen or carbon fiber filaments.

What parameters are needed when ordering?

Please provide input voltage, lamp wattage, total length, heated length, tube diameter, reflector type, and lead wire specifications.

What are your payment terms?

We accept T/T, Western Union, MoneyGram, PayPal, and Trade Assurance payments.

How do you ensure quality control?

Our factory maintains strict quality control processes and holds CE, ISO9001, RoHS, and SGS certifications.

Where is your factory located?

Our manufacturing facility is located in JiangMen City, Guangdong Province, China. Visitors can fly to Guangzhou Baiyun International Airport.

Installation Precautions

Always turn off electrical power before installing or replacing lamps
Never operate with voltage exceeding 110% of rated specifications
Follow proper installation procedures to ensure safety and performance
