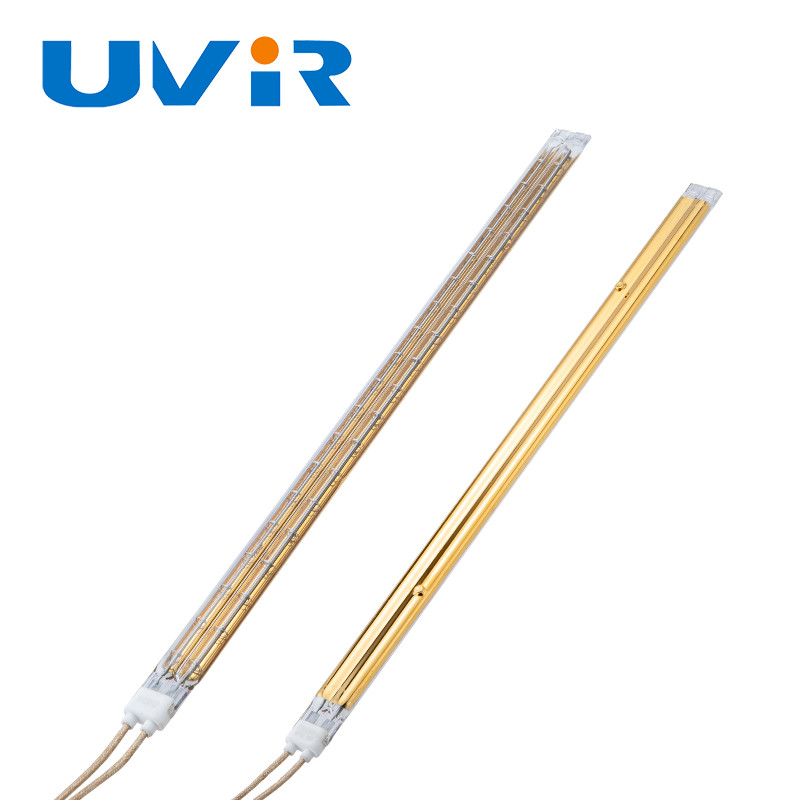

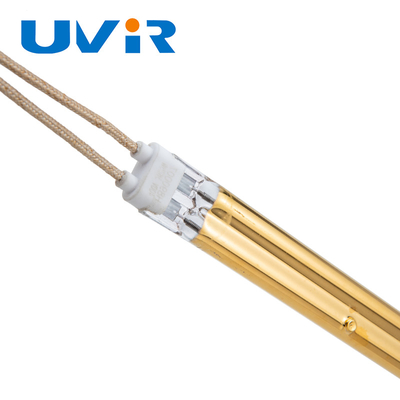

TC05 Gold Reflector Quartz Infrared Lamp Heater 3825W 400V

TC05 Gold Reflector Quartz Infrared Lamp Heater 3825W 400V

Brand Name:	UVIR
Model Number:	H890007
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Quartz Tube:

11x23 Mm

Watt:

3825W

Material:

Glass

Voltage:

400V

Reflector:

Gold

Base:

TC05

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

TC05 Infrared Lamp Heater

Quartz Infrared Lamp Heater

Gold Reflector Tungsten Halogen Lamp

Product Description

TC05 Quartz Infrared Lamp Heater with Gold Reflector Tungsten Halogen Lamp

Product Specifications

Quartz Tube	11x23 mm
Wattage	3825W
Material	Glass
Voltage	400V
Reflector	Gold
Base	TC05

Infrared Radiator Advantages

Infrared radiators offer superior performance compared to traditional hot air, ceramic, gas, and metal radiators. They provide direct heating without contact or intermediate conversion medium, delivering rapid energy transfer that precisely targets heating requirements while saving up to 50% in energy consumption.

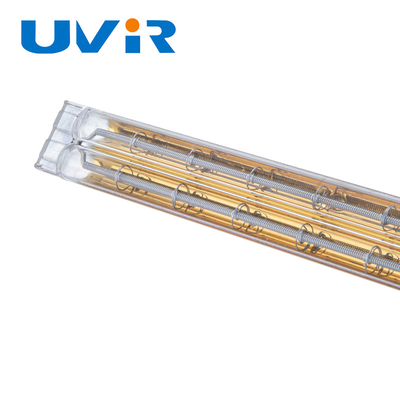

Twin Tube Short-Wave IR Lamp Components

Fused silica construction
Tungsten heating elements
Heating wire supports
End plate with ceramic ends
Wire leads
Gold reflective layer
Proprietary gas composition

Technical Specifications

The quartz tube strength is enhanced by a steel beam-inspired design, allowing twin tube lengths up to 6 meters (cross section: 33 X 14 mm).

Cross-Section	Maximum Length (m)	S-W	M-W
8x18	2.1	N	Y
23x11	3.5	Y	Y
33x14	4.0	Y	Y

Heater dimensions vary based on required voltage/wattage relationships.

Product Variations

Contact us for custom configurations if standard parameters don't meet your requirements. Our professional team can provide technical specifications and drawings.

Product Coding Rules

After-Sales Service

Package tracking
Technical support
24-hour response time
Reorder discounts
Quality problem replacements
Strict customer confidentiality

Frequently Asked Questions

Can I order samples?

Yes, we welcome sample orders to test quality. Mixed samples are acceptable.

What is the lead time?

Samples require 5-7 days, mass production approximately 30 days.

Is there a minimum order quantity?

Standard MOQ is 2 pieces per model.

What shipping methods do you use?

Samples ship via DHL/UPS/FedEx/TNT. Large quantities via air or sea freight.

How do I place an order?

1. Share your requirements
2. Receive our quote
3. Confirm samples and deposit
4. Production begins

How are quality issues handled?

Our strict quality control minimizes defects. During warranty, replacements ship with next order.
