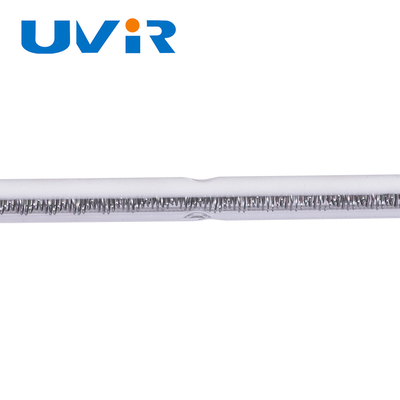

400V 6670W TC01 White Ceramic Infrared Quartz Heat Lamp

400V 6670W TC01 White Ceramic Infrared Quartz Heat Lamp

Brand Name: UVIR
Model Number: 12100092
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,D/P,T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Place Of Origin:
Guangdong, China
Power:
6670w
Voltage:
400V
Light Source:
Quartz Tube
Material:
Quartz
Head Base:
TC01
Coating:
Clear
Type:
C
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

400v Ceramic Heat Lamp

,

6670w Ceramic Heat Lamp

,

Ceramic Infrared Quartz Lamp

Product Description
400V 6670W TC01 White Ceramic Heat Lamp, Infrared Quartz Lamp C Type
Product Specifications
Attribute Value
Place of Origin Guangdong, China
Power 6670W
Voltage 400V
Light Source Quartz Tube
Material Quartz
Head Base TC01
Coating Clear
Type C
TC01 White Ceramic Heat Lamp Infrared Quartz Lamp, C Type

We specialize in manufacturing and wholesale distribution of ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, and related accessories including lamp stands and transformers. Custom solutions are available to meet specific customer requirements.

Key Advantages
  • High-quality quartz glass tube construction
  • Premium high-temperature quartz glass material
  • Extended service life exceeding 5000 hours
  • Non-toxic with no unpleasant odors
  • Environmentally safe with no risk of contamination

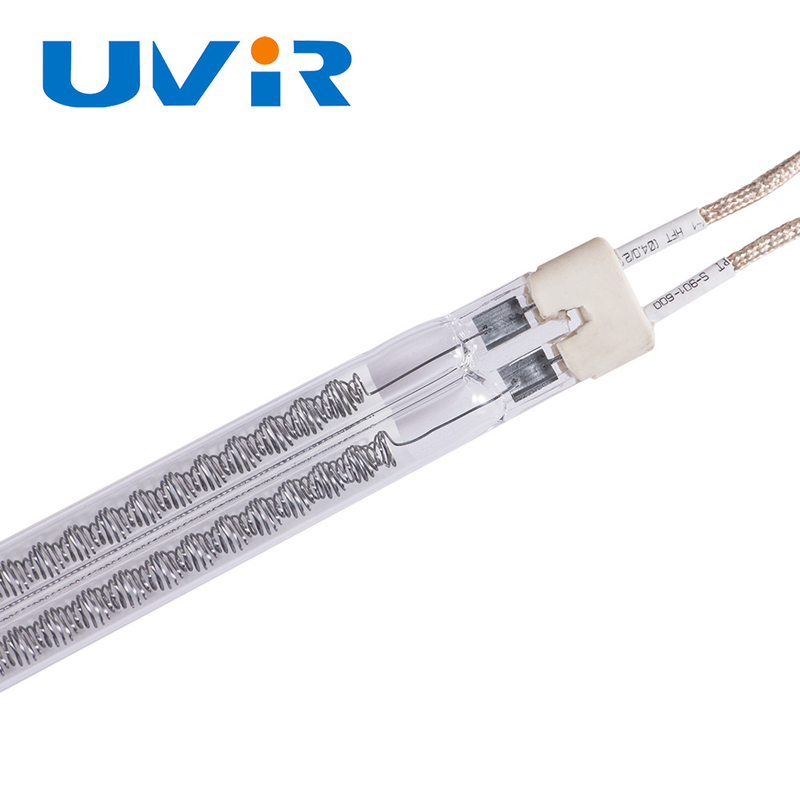

Standard Twin Tube Construction
400V 6670W TC01 White Ceramic Infrared Quartz Heat Lamp 0
Technical Parameters
Parameter Value
Product Name Twin Tube Infrared Lamp
UVIR NO. 12100092
Voltage 400V
Power 6670W
Material Quartz Glass
Color White
Filament Temperature 1800-2400℃
Customization Available for voltage, wattage, length, base type, cables, and universal burning position
400V 6670W TC01 White Ceramic Infrared Quartz Heat Lamp 1
Premium Materials

Our lamps combine high-quality transparent quartz tube materials with halogen principles to maximize infrared radiation density, achieving optimal heating performance for your specific applications.

Product Variations
Voltage (V) Wattage (W) Twin Tube Total Length Heated Length Design Type Gold White Clear
55 400 11x23 115 50 B THG100151 THW100025 THC100026
115 400 11x23 115 50 B THG100152 THW100026 THC100027
115 450 11x23 70 25 B THG100153 THW100027 THC100028
115 450 11x23 72 25 B THG100154 THW100028 THC100029
115 600 11x23 145 80 B THG100155 THW100029 THC100030
115 900 11x23 170 115 B THG100156 THW100030 THC100031
115 1000 11x23 192 127 B THG100157 THW100031 THC100032
115 1100 11x23 205 140 B THG100158 THW100032 THC100033
120 700 11x23 140 89 B THG100159 THW100033 THC100034
120 800 11x23 167 102 B THG100160 THW100034 THC100035
120 1180 11x23 250 150 B THG100161 THW100035 THC100036
230 1200 11x23 405 340 B THG100162 THW100036 THC100037
230 1500 11x23 300 200 B THG100163 THW100037 THC100038
230 2350 11x23 410 355 B THG100164 THW100038 THC100039
230 3000 11x23 650 500 C THG100165 THW100039 THC100040
230 500 15x33 510 500 B THG100114 THW100061 THC100061
400 4800 15x33 500 800 B THG100141 THW100062 THC100062
400 6200 15x33 1100 1030 B THG100002 THW100063 THC100063
400 15720 15x33 850 1334 H THG100186 THW100064 THC100064
480 6000 15x33 1550 1000 B THG100140 THW100065 THC100065

Contact us for custom solutions if our standard parameters don't meet your requirements. Our professional team can provide technical expertise and custom drawings.

Product Coding System
400V 6670W TC01 White Ceramic Infrared Quartz Heat Lamp 2
After-Sales Support
  • Package tracking service
  • Comprehensive technical support
  • 24-hour customer service availability
  • Discounts for repeat orders
  • Quality problem replacements
  • Strict customer information confidentiality
Applications
  • Heating: Space heaters, saunas, electric hot tables, incubators, brooders, farm greenhouses
  • Automotive: Primer/color/powder coating, seat de-wrinkling, headliner forming
  • Plastics: Welding, forming, softening, curing, drying
  • Printing: Ink drying, silk screening, bindings, glue drying
  • Food: Baking, browning, dehydrating, pasteurizing
  • Textiles: Web drying, finishing, pre-shrinking
  • Glass-Ceramics: Heating safety glass, drying mirrors, drying frit
Frequently Asked Questions
Are you a manufacturer?

Yes, we are a factory with over 15 years of experience in infrared lamp production. We welcome visits to our facility.

How can I get samples?

We provide free samples for quality evaluation, though customers are responsible for shipping costs. Contact us to arrange samples.

How do I place an order?

Contact our sales team via email or online chat. We'll prepare a proforma invoice for your confirmation before processing your order upon payment.

Are your products safe?

All products undergo rigorous testing and hold certifications including European CE and RoHS compliance for safety and environmental standards.

Do you offer custom designs?

Yes, we provide comprehensive OEM and ODM services to realize your specific product requirements and ideas.
