500W 115V Twin Tube Quartz Infrared Heater with Gold Reflector

500W 115V Twin Tube Quartz Infrared Heater with Gold Reflector

Brand Name:	UVIR
Model Number:	THG100580
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Quartz Tube:

Quartz Glass

Filament:

Tungsten Filament And Filled With Protective Gas

Filament Temperature::

1800 - 2400℃

Response Time:

1-2 Seconds

Reflector:

Golden Coating

Average Lifespan:

5000

Power:

500W

Voltage:

115V

Total Length:

130mm

Heating Length:

80mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Reflector Infrared Lamp Heater

115V Infrared Lamp Heater

500W Twin Tube Infrared Lamps

Product Description

Twin Tube TC04 500W 115V Quartz Infrared Lamp Heater with Gold Reflector

Product Specifications

Quartz Tube	Quartz Glass
Filament	Tungsten Filament And Filled With Protective Gas
Filament Temperature	1800 - 2400℃
Response Time	1-2 Seconds
Reflector	Golden Coating
Average Lifespan	5000 hours
Power	500W
Voltage	115V
Total length	130mm
Heating length	80mm

About Infrared Technology

Infrared (IR) is part of the electromagnetic spectrum ranging from 0.76μm to 1000μm, lying just beyond the red color of visible light. While invisible, IR shares properties with light - it travels at light speed, can be directed or focused, and propagates effectively even in a vacuum.

When absorbed by an object, IR radiation generates internal heat by causing atomic vibration, raising the object's temperature. Unlike conventional heating methods, IR requires no medium like air or water to transfer heat.

Product Details

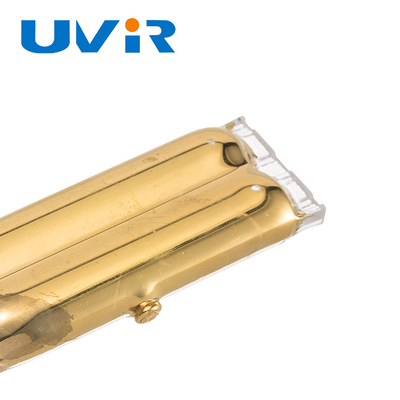

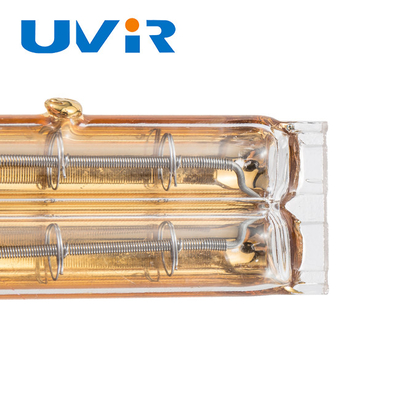

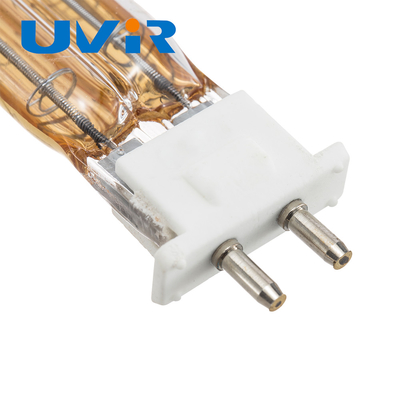

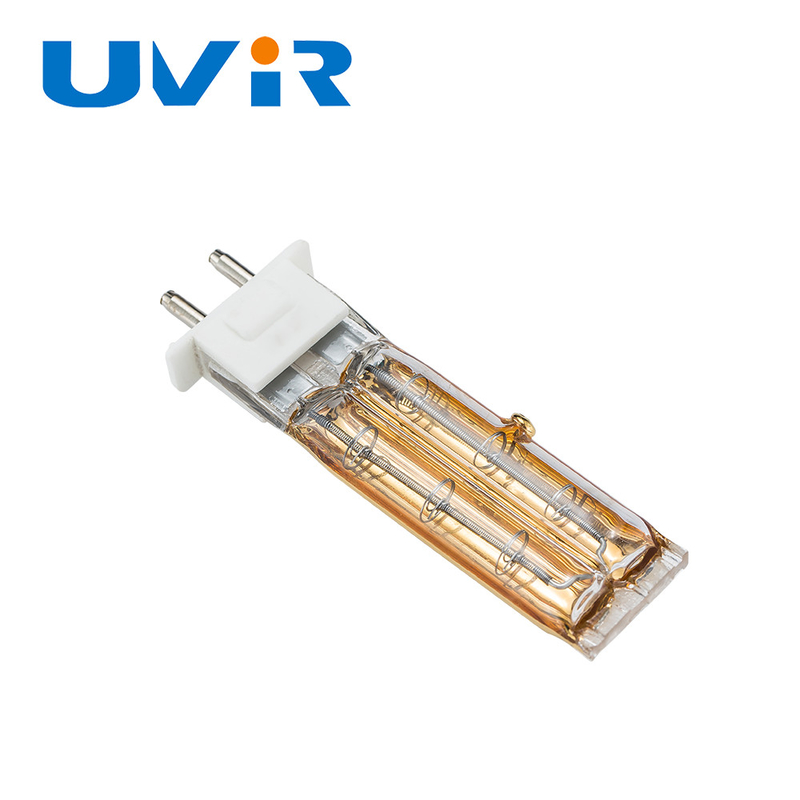

Twin tube short wave infrared lamp
Quartz tube dimensions: 11×23mm
Gold reflector coating
115V operation
500W power output

Standard Models

115V	200W	THG100145	THW100005	THC100005
115V	250W	THG100146	THW100006	THC100006
115V	450W	THG100147	THW100007	THC100007	80045902
220V	200W	THG100148	THW100008	THC100008
220V	300W	THG100149	THW100009	THC100009
220V	450W	THG100150	THW100010	THC100010

Customized Services

All infrared heater lamps are customized to your specific requirements
Professional technicians provide one-to-one service
Single unit available for quality testing
OEM services available - we can print your logo on the lamps

Warranty & Support

Short wave infrared heat lamps come with a 5,000-hour warranty. During this period, we will replace any defective units (non-manual damage) at no charge.

Frequently Asked Questions

Can I order samples?

Yes, we welcome sample orders for quality verification. Mixed samples are acceptable.

What is the production lead time?

Samples require 5-7 days, while mass production typically takes about 30 days.

Is there a minimum order quantity?

Our standard MOQ is 2 pieces per model.

What shipping methods do you use?

We typically use DHL, UPS, FedEx or TNT for samples. For large quantities, we offer air and sea freight options.

How do I place an order?

1. Share your requirements or application
2. We provide a quotation
3. Confirm samples and place deposit
4. We arrange production

What is your quality assurance process?

All products undergo strict quality control. During the warranty period, we include replacements with your next order if needed.
