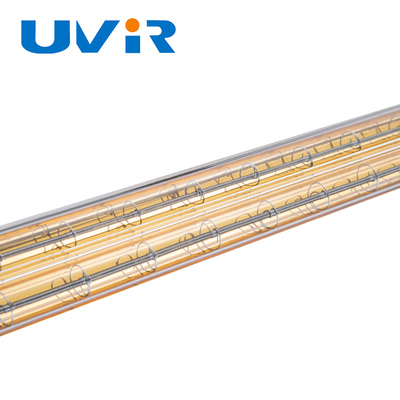

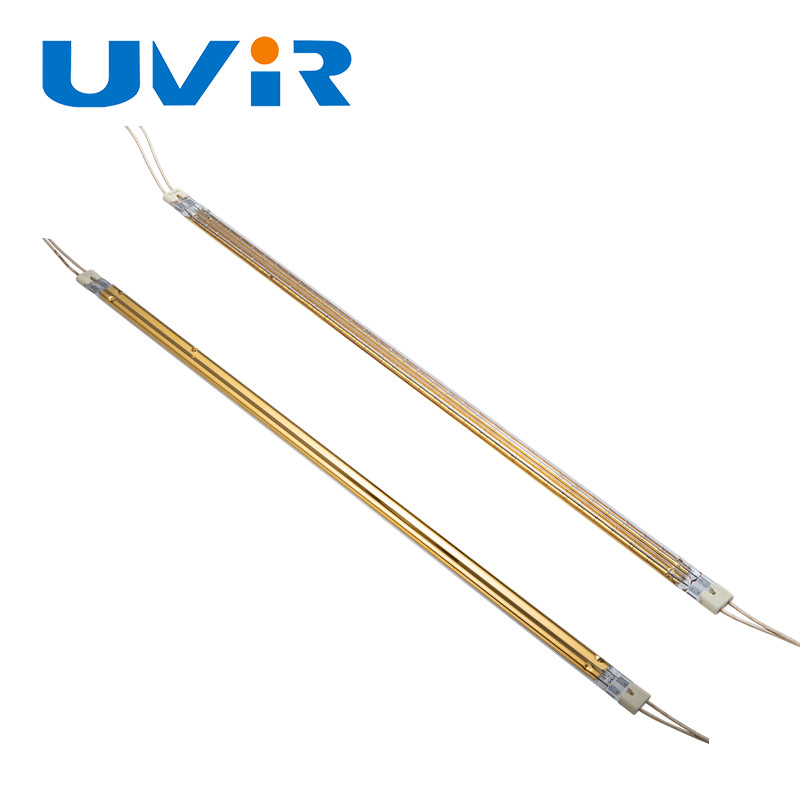

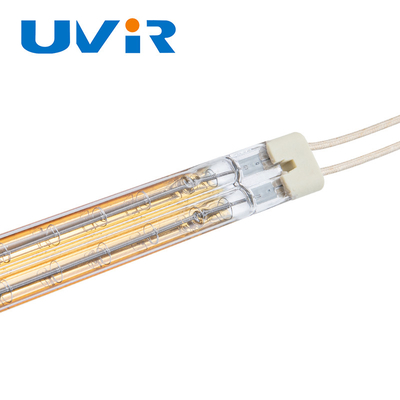

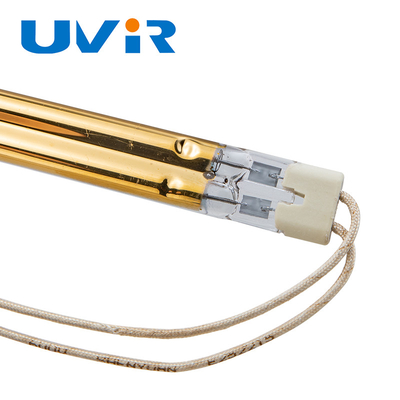

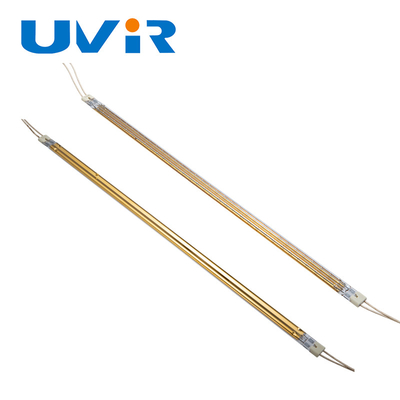

Gold Halogen Infrared Heater Tube 6000W 400V for Industrial Curing

Gold Halogen Infrared Heater Tube 6000W 400V for Industrial Curing

Brand Name:	UVIR
Model Number:	THG100180
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Material:

Guartz Tube

Coating:

Gold

Warranty Time:

5000 Hours

Filament:

Tungsten Wire

Power:

400V

Voltage:

6000W

Total Length:

1150mm

Heating Length:

1000mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1000mm Halogen Heater Tube

IR Halogen Heater Tube

Curing Light Twin Tube Infrared Lamps

Product Description

Infrared Red Paint Gold Halogen Heater Tube for Curing Light Heating Lamp

Product Specifications

Attribute	Value
Material	Quartz tube
Coating	Gold
Warranty Time	5000 Hours
Filament	Tungsten Wire
Power	400V
Voltage	6000W
Total length	1150mm
Heating length	1000mm

Product Description

Gold halogen heater tube infrared red paint curing light heating lamp designed for industrial applications with superior performance characteristics.

Short Wave IR Lamp Advantages

Wavelength controlled in the range of 0.76 ~ 1.4 μm, allowing selection based on workpiece material characteristics
High thermal efficiency with infrared radiation efficiency exceeding 86% in specific wavelengths
Rapid response time - reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact design with single tube power exceeding 6000W
Optional gold-containing directional reflecting layer for enhanced efficiency
Premium quartz glass and tungsten materials ensure service life exceeding 5000 hours
Compatible with automatic temperature control systems for precise operation

Industrial Applications

Technical Specifications

Standard cross-section dimensions for industrial IR twin tubes in mm. The innovative steel beam-inspired design allows twin tube lengths up to 6m (cross section: 33 × 14 mm).

Twin Tube Cross-Section	Maximum Length (m)	S-W	M-W
8×18	2.1	N	Y
23×11	3.5	Y	Y
33×14	4.0	Y	Y

Heater dimensions depend on the required voltage/wattage relationship.

Product Parameters

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11×23mm
Coating	Gold
Power	400V
Voltage	6000W
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning positions available

Stock and Standard Twin Tube Short-Wave Lamps

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear
55	400	11×23	115	50	B	THG100151	THW100025	THC100026

If the parameter is not suitable for you, please contact us. Our professional team can provide customized solutions.

Product Coding Rule Table

OEM Services

We provide expert guidance in selecting the optimal heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical requirements.

We manufacture various sizes and types of heat lamps according to customer specifications. Providing drawings is recommended for accurate sample production.

Frequently Asked Questions

1. How to place an order?

Provide your required lamp specifications (type, diameter, length, power, voltage, reflector). We'll send a quotation. After payment confirmation, production begins and products ship upon completion.

2. Why use a reflector?

Our emitters can be coated with gold or ceramic reflectors to concentrate heat output. Gold coating is economical, converting nearly all electrical power to heat. For temperatures above 800°C, we recommend ceramic coating (resistant to 1000°C). Custom coating degrees available.

3. Do you supply mounting clamps?

Yes, we provide mounting clamps free of charge with lamp purchases.

4. Can you accommodate custom designs?

We specialize in custom designs and small runs. Submit drawings, sketches, or samples for quotation. We're also competitive on large orders.

5. How does your factory ensure quality?

Quality is our priority. We maintain strict quality control from material procurement to final packaging. Our products are certified CE, ROHS, and ISO9001 compliant.
