Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THG100715 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Type: | B | Material: | Quartz Glass |
|---|---|---|---|
| Power: | 1338W | Coating: | Gold |
| Voltage: | 270v | Total Length: | 235mm |
| Heating Length: | 170mm | ||
| Highlight: | Paint Drying Infrared Heat Lamp Tube,1338w Infrared Heat Lamp Tube,1338w Twin Tube Infrared Lamps |
||

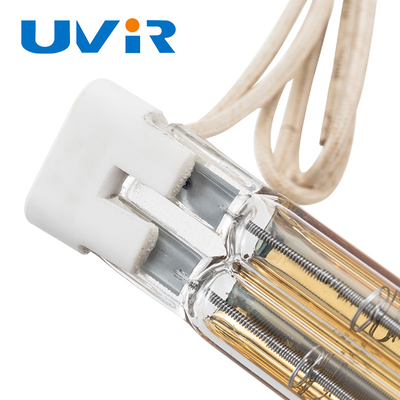

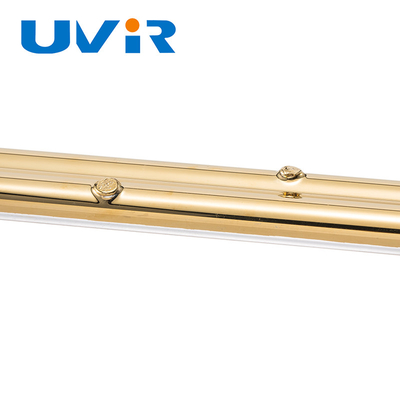

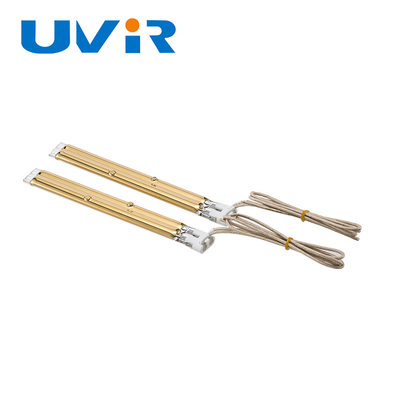

ir lamps 1338w quartz glass infrared heater lamp tube for paint drying
IR Twin Tube
| Energy saving | Infrared radiation unlike convection or conduction, dose not rely on any medium to transfer heat from infrared source to the object being heated, heat directly to the object |
| Time saving | no need medium transferring and quick response, heating by infrared emitters can reach working temperature more quickly than other forms of heating and therefore reduces process times, and increases production rates. |
| Space saving | small size |
| Labor saving |
Easy installation, no maintenance, no extra manual operation for infrared heating emitters. |
| Cost saving |
energy saving, so cost saving; human cost saving: easy installation, reliable operation, low maintenance costs |
| Better product quality | Controllable, predictable heating reduces wastage and promotes products quality |
| Environment protection | Clean, and no any pollution released to the surroundings |
STANDARD TWIN TUBE CONSTRUCTION TYPES
Technical Description
Standard cros S-S ection dimensions for industrial
IR twin tubes in mm
The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)
| Twin Twin Cross-Section |
Maximum Length, m |
S-W | M-W |
| 8x18 | 2.1 | N | Y |
| 23x11 | 3.5 | Y | Y |
| 33x14 | 4.0 | Y | Y |
Heater dim ensions depend on the required voltage/wattage relationship.
Product details
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | Gold |
| Power | 270V |
| Voltage | 1338W |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Twin Tube Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
Q1. Can all the products be customized?
A: We are the factory of making IR lamps,UV lamp,IR accessories.All the our products can be made by the details you provide.
Q2. What is the outer package of the product?
A: carton packing or wooden packing.
Q3. Processing cycle?
A: Some of products we have in stock.Usually need about 15days to maked.
Q4. Order quantity?
A: Customized IR Lamps Usually is 2 pieces.
