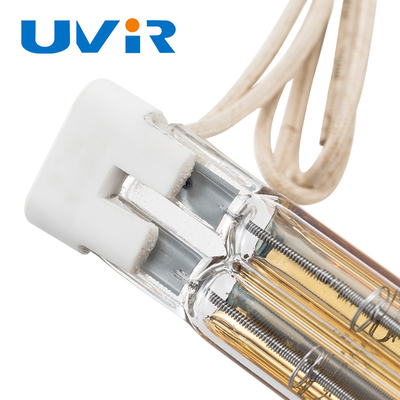

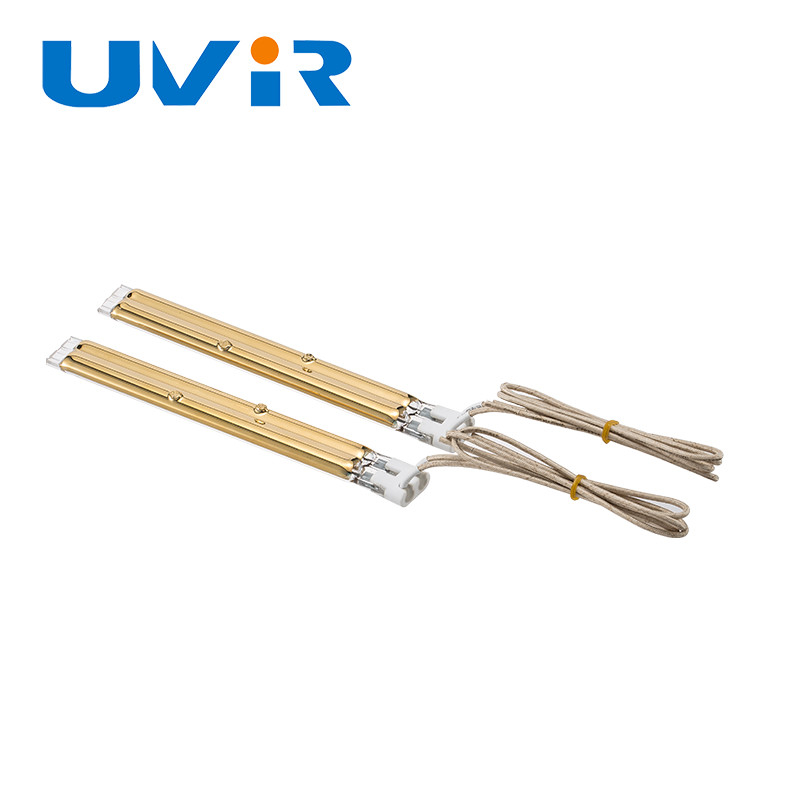

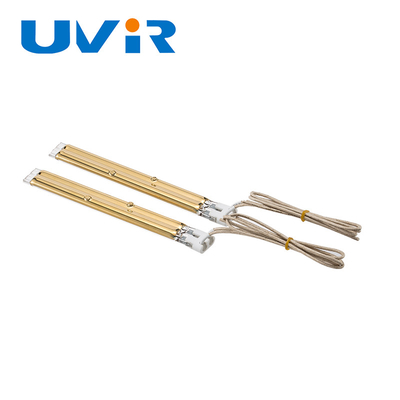

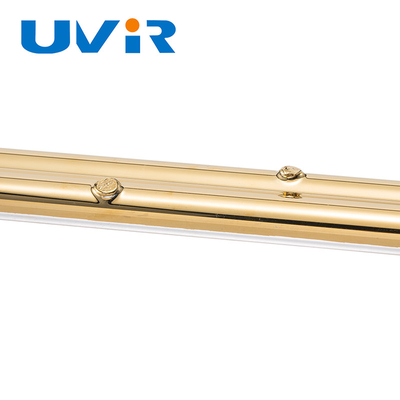

1338W Gold Coated Quartz Infrared Heat Lamp Tube

1338W Gold Coated Quartz Infrared Heat Lamp Tube

Brand Name:	UVIR
Model Number:	THG100715
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Type:

Material:

Quartz Glass

Power:

1338W

Coating:

Gold

Voltage:

270v

Total Length:

235mm

Heating Length:

170mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Paint Drying Infrared Heat Lamp Tube

1338w Infrared Heat Lamp Tube

1338w Twin Tube Infrared Lamps

Product Description

IR 1338w Quartz Glass Infrared Heat Lamp Tube For Paint Drying

Product Specifications

Type	B
Material	Quartz Glass
Power	1338W
Coating	Gold
Voltage	270v
Total length	235mm
Heating length	170mm

IR Twin Tube Benefits

Energy saving	Infrared radiation directly heats objects without medium transfer, unlike convection or conduction
Time saving	Quick response time reaches working temperature faster than other heating methods
Space saving	Compact size for efficient space utilization
Labor saving	Easy installation with no maintenance required
Cost saving	Energy efficient operation reduces costs; low maintenance requirements
Better product quality	Controllable, predictable heating reduces wastage and improves quality
Environment protection	Clean operation with no pollution released

Standard Twin Tube Construction

Technical Specifications

The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm).

Cross-Section	Maximum Length (m)	S-W	M-W
8x18	2.1	N	Y
23x11	3.5	Y	Y
33x14	4.0	Y	Y

Heater dimensions depend on the required voltage/wattage relationship.

Product Details

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	Gold
Power	270V
Voltage	1338W
OEM/ODM	Custom voltage, wattage, length, base, cables available with universal burning position

OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design custom lamps based on technical specifications.

We produce various sizes and types of heat lamps according to customer requirements. Providing drawings is preferred for accurate sample production.

FAQ

Q1. Can all the products be customized?

A: We manufacture IR lamps, UV lamps, and IR accessories. All products can be customized to your specifications.

Q2. What is the outer package of the product?

A: Carton packing or wooden packing options available.

Q3. Processing cycle?

A: Some products are in stock. Custom orders typically require about 15 days for production.

Q4. Order quantity?

A: Minimum order quantity for customized IR lamps is typically 2 pieces.
