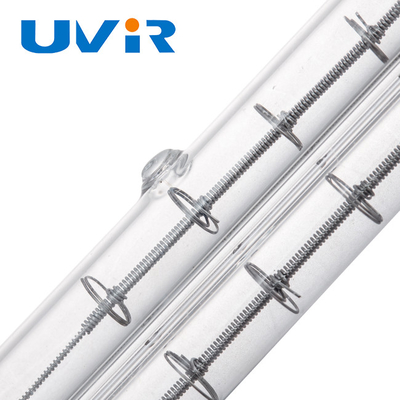

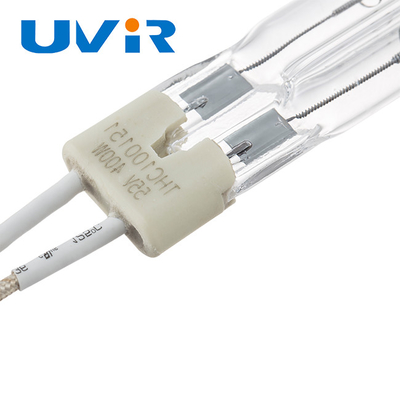

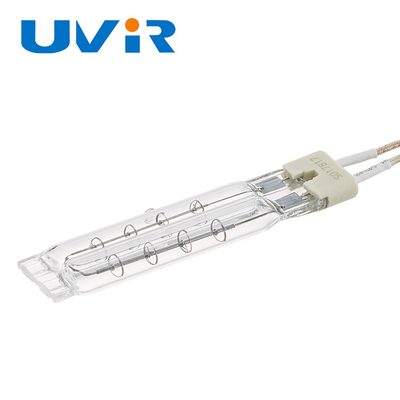

Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THC100151 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Type: | Short Wave Halogen Infrared Heater | Material: | Quartz Glass |
|---|---|---|---|
| Warrant Time: | 5000Hours | Shape: | Straight |
| Power: | 400w | Place Of Origin: | Guangdong, China |
| Voltage: | 55V | ||
| Highlight: | Twin Tube Infrared Lamps 400w,Twin Tube Infrared Lamps 55V,400w Halogen Heater Element |
||
Our Advantages
1. Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies.
2. Very Good And Stable Quality
3. 24Hrs Customer Support
4. CE,ISO9001,RoHS,SGS authentication.
5. Low MOQ,1pcs for sample checking is available.
Product parameters
| Product name | Twin tueb infrared lamp |
| UVIR NO. | THC100151 |
| Voltage | 55V |
| Power | 400W |
| Material | Quartz Glass |
| Color | Clear |
|
Filament Temperature |
1800-2400 ℃ |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
High quality raw material:
Combining high-quality transparent quartz tube materials and halogen principles,effectively increasing the density of infrared radiation. This achieves the user's ideal heating purpose.
TECHNICAL NOTES
Standard cros S-S ection dimensions for industrial
IR twin tubes in mm
The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)
| Twin Twin Cross-Section |
Maximum Length, m |
S-W | M-W |
| 8x18 | 2.1 | N | Y |
| 23x11 | 3.5 | Y | Y |
| 33x14 | 4.0 | Y | Y |
Heater dim ensions depend on the required voltage/wattage relationship.
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
Quality Service
Our Infrared heater lamps are under standard in CE & ROHS,
we have strict quality control to make sure each IR lamp is perfect!
Customized Service
1. All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
After-sale Service
1. Warranty Time of Short wave Infrared heat lamp: 5,000 hours
2. During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
FAQ
1. What is the payment term?
prepayment 100% advance via wire transfer, Paypal, Western Union
2. Could you provide sample for performance testing and appearance checking?
Yes, we can provide the sample based on your required specs.
3. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
But if it is a new project or it is the first time for you to use infrared emitter, just tell us about your application in details like object material, required working temperature, required time, heating size..
