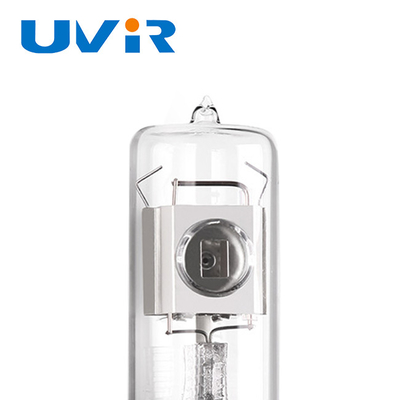

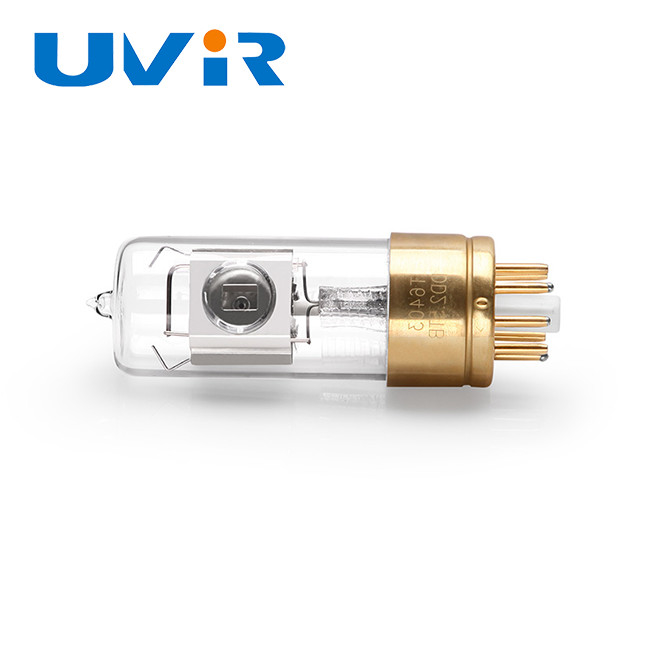

DD2.5TB Deuterium Lamp 300mA Quartz with Metal Base

Name: DD2.5TB Deuterium Lamp 300mA Quartz with Metal Base
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: DD2.5TB
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	DD2.5TB
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Material:

Quartz

Total Length:

95mm

Product Name:

Deuterium Lamp

Current:

300mA

Light Center Height:

Outer Diameter:

28mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

DD2.5TB Deuterium Lamp

95mm Deuterium Lamp

300mA D2 Lamp

Product Description

DD2.5TB Deuterium Lamp, 95mm 300mA D2 Lamp Quartz with Metal Base

Material	Quartz
Total length	95mm
Product name	Deuterium Lamp
Current	300mA
Light center height	50
Outer diameter	28mm

Product Overview

Deuterium lamps are discharge lamp sources that produce stable high intensity ultra-violet radiation from 160 nm to 400 nm in addition to visible light from 400 nm to 800 nm.

Deuterium lamps are ideal sources for UV spectroscopy, high-performance liquid chromatography (HPLC), capillary electrophoresis (CE), pollution monitors, as well as wide variety of specialized photometric equipment that require ultra-violet wavelengths.

Dimensions Explanation

h = The vertical height from the light-emitting hole to the bottom edge of the metal base
W = Tube outer diameter
L = Total length of the lamp including the vent hole sintered at the top
R = Height of the part of the deuterium lamp exposed from the bottom of the metal base

Lamp Specifications

Model	DD2.5TB
Light window material	Quartz
Spectral distribution	160-400nm
Trigger voltage	300-350V
Lamp current	300mA
Lamp model	Protruding window
Lamp voltage	80V
Total length	95mm

Product Details

Applications

Deuterium lamps are widely used in:

Liquid chromatograph UV detectors
UV-VIS spectrophotometers
Electrophoresis apparatus
SOx/NOx analyzers
Blood test equipment
Various analytical test instruments

Our Services & Strengths

Expert sales teams for accurate communication
Professional technical teams for product development
Technical production teams for assembly line production
Quality inspection teams for rigorous testing
Experienced after-sales teams for customer support

Frequently Asked Questions

Are you a truly factory?

Yes, we are a factory with more than 15 years of experience. Welcome to visit us any time.

How can I get the sample from you?

Please contact us directly. We can send free samples for quality checking, but customers need to pay for express fees.

How can I make the order?

You can email us or chat with our sales online. After confirming your order details, we will provide a Proforma Invoice. Once payment is made, we will process your order.

Are the products safe enough?

Our products are thoroughly tested and certified by internationally recognized regulatory bodies including European CE and RoHS.

Do you accept custom designs?

Yes, we offer OEM and ODM services. We can help realize your product ideas.
